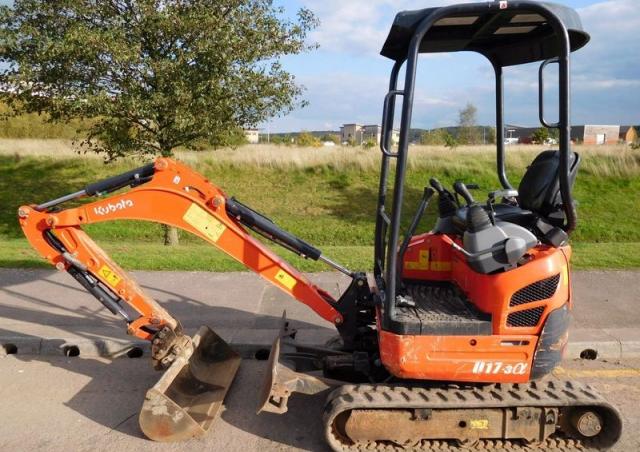

U17-3A Kubota excavator specs & dimensions (2008 - 2026)

Kubota U17-3A is a mini excavator manufactured since 2008, with a weight of 1.65 tons. It features a track width of 230 mm, a tran…

Kubota U17-3A is a mini excavator manufactured since 2008, with a weight of 1.65 tons. It features a track width of 230 mm, a transport length of 3.545 meters, a transport width of 1.24 meters, and a transport height of 2.34 meters. The machine has a tear-out force of 15.2 kN, a dredging depth of 2.31 meters, and a maximum horizontal reach of 3.9 meters. The bucket width is 0.45 meters, and the bucket capacity is 0.04 cubic meters.

Mini Excavators Kubota U17-3A

Technical specs - U17-3A Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.65 t
Transport length
3.545 m
Transport width
1.24 m
Transport height
2.34 m
Bucket capacity
0.04 m³
Bucket width
0.45 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.9 m
Dredging depth
2.31 m
Tear-out force
15.2 kN
Engine manuf.
Kubota
Engine type
D902
Engine power
11.8 kW
Displacement
0.898 l
Revolutions at max torque
2300 rpm
Max. torque
51,3/1800 Nm
No. of cylinders
3
Cylinder bore x stroke
72x73,6 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota U17-3A FAQ

When was the Kubota U17-3A manufactured?

The Kubota U17-3A was first produced in 2008.

How much does the Kubota U17-3A weigh?

The Kubota U17-3A weighs 1.65 tons.

What are the transport dimensions of the Kubota U17-3A mini excavator?

The Kubota U17-3A has a transport length of 3.55 meters, a transport width of 1.24 meters, and a transport height of 2.34 meters.

What is the track width of the Kubota U17-3A mini excavator's undercarriage?

The Kubota U17-3A mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Kubota U17-3A mini excavator?

The Kubota U17-3A mini excavator has a dredging depth of 2.31 meters and a maximum horizontal reach of 3.9 meters.

What is the tear-out force of the Kubota U17-3A mini excavator?

The Kubota U17-3A mini excavator has a tear-out force of 15.2 kN.

What are the bucket specifications of the Kubota U17-3A mini excavator?

The Kubota U17-3A mini excavator has a bucket capacity of 0.04 cubic meters and a bucket width of 0.45 meters.

What operator safety and support features does the Kubota U17-3A have?

The Kubota U17-3A is equipped with a cabin for driver protection.
