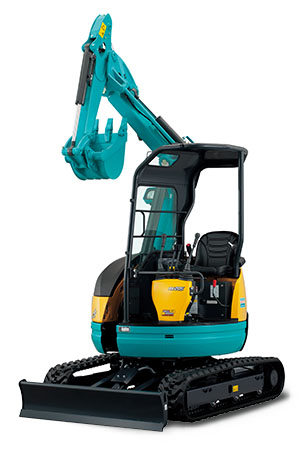

RX205 Kubota excavator specs & dimensions (2022 - 2026)

Kubota RX205 is a mini excavator manufactured since 2022, with a weight of 1.99 tons. It has a transport length of 3.66 meters, a …

Kubota RX205 is a mini excavator manufactured since 2022, with a weight of 1.99 tons. It has a transport length of 3.66 meters, a transport width of 1.4 meters, and a transport height of 2.27 meters. The machine features a tear-out force of 21.2 kN, a dredging depth of 2.21 meters, and a maximum horizontal reach of 3.86 meters. The bucket width is 0.4 meters, and the bucket capacity is 0.06 cubic meters.

Mini Excavators Kubota RX205

Technical specs - RX205 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.99 t
Transport length
3.66 m
Transport width
1.4 m
Transport height
2.27 m
Bucket capacity
0.06 m³
Bucket width
0.4 m
Max. Reach horizontal
3.86 m
Dredging depth
2.21 m
Tear-out force
21.2 kN
Model series
RX
Engine manuf.
Kubota
Engine type
D1105-E2-BH-SR-2
Engine power
14 kW
Displacement
1.12 l

More technical details, like: bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota RX205 FAQ

When was the Kubota RX205 manufactured?

The Kubota RX205 was first produced in 2022.

How much does the Kubota RX205 weigh?

The Kubota RX205 weighs 1.99 tons.

What are the transport dimensions of the Kubota RX205 mini excavator?

The Kubota RX205 has a transport length of 3.66 meters, a transport width of 1.4 meters, and a transport height of 2.27 meters.

What are the excavation performance specifications of the Kubota RX205 mini excavator?

The Kubota RX205 mini excavator has a dredging depth of 2.21 meters and a maximum horizontal reach of 3.86 meters.

What is the tear-out force of the Kubota RX205 mini excavator?

The Kubota RX205 mini excavator has a tear-out force of 21.2 kN.

What are the bucket specifications of the Kubota RX205 mini excavator?

The Kubota RX205 has a bucket capacity of 0.06 cubic meters and a bucket width of 0.4 meters.
