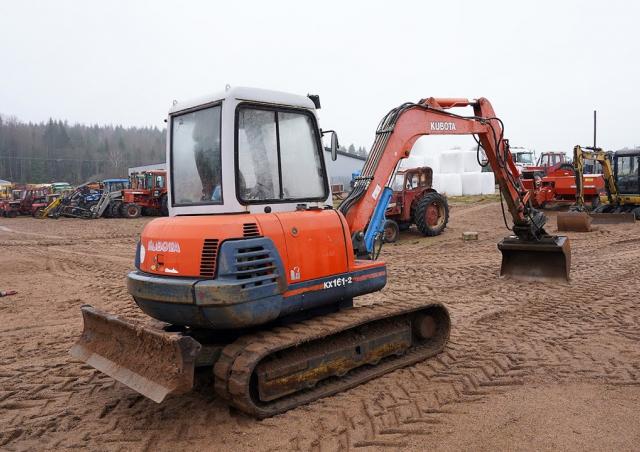

KX161-2 Kubota excavator specs & dimensions (1996 - 2002)

Kubota KX161-2 is a mini excavator manufactured from 1996 to 2002, with a weight of 4.92 tons. It features a track width of 400 mm…

Kubota KX161-2 is a mini excavator manufactured from 1996 to 2002, with a weight of 4.92 tons. It features a track width of 400 mm, a transport length of 5.6 meters, a transport width of 1.84 meters, and a transport height of 2.54 meters. The bucket width is 0.65 meters, and the bucket capacity is 0.14 cubic meters.

Mini Excavators Kubota KX161-2

Technical specs - KX161-2 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.92 t
Transport length
5.60 m
Transport width
1.84 m
Transport height
2.54 m
Bucket capacity
0.14 m³
Bucket width
0.65 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.82 m
Dredging depth
3.57 m
Model series
KX
Engine manuf.
Kubota
Engine type
V2203BH2
Engine power
30.6 kW
Displacement
2.197 l

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, tear-out force, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Kubota KX161-2 FAQ

When was the Kubota KX161-2 manufactured?

The Kubota KX161-2 was manufactured from 1996 to 2002.

How much does the Kubota KX161-2 weigh?

The Kubota KX161-2 weighs 4.92 tons.

What are the transport dimensions of the Kubota KX161-2 mini excavator?

The Kubota KX161-2 has a transport length of 5.6 meters, a transport width of 1.84 meters, and a transport height of 2.54 meters.

What is the track width of the Kubota KX161-2 mini excavator's undercarriage?

The Kubota KX161-2 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Kubota KX161-2 mini excavator?

The Kubota KX161-2 has a dredging depth of 3.57 meters and a maximum horizontal reach of 5.82 meters.

What are the bucket specifications of the Kubota KX161-2 mini excavator?

The Kubota KX161-2 has a bucket capacity of 0.14 cubic meters and a bucket width of 0.65 meters.

What operator safety feature does the Kubota KX161-2 have?

The Kubota KX161-2 is equipped with a cabin for driver protection.
