KX042-4 α Kubota excavator specs & dimensions (2022 - 2026)

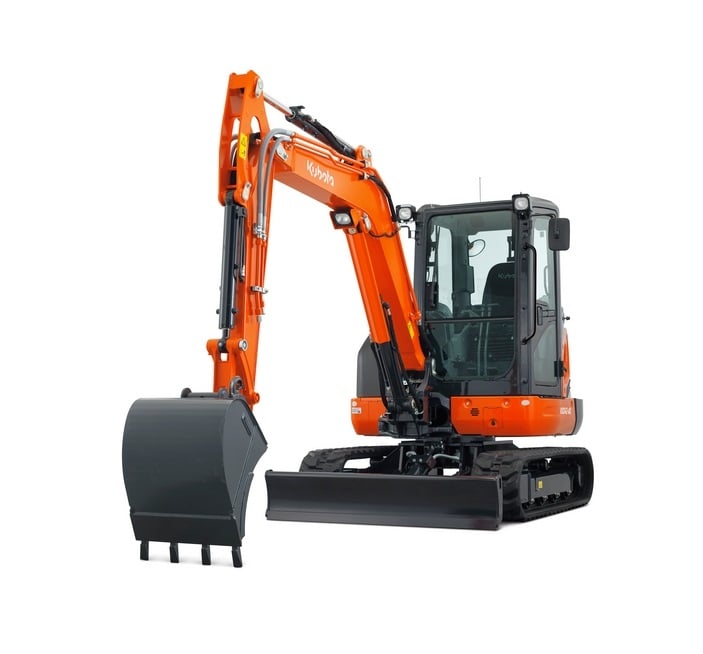

Kubota KX042-4 α is a mini excavator manufactured since 2022, with a weight of 4.15 tons. It features a track width of 350 mm, a t…

Kubota KX042-4 α is a mini excavator manufactured since 2022, with a weight of 4.15 tons. It features a track width of 350 mm, a transport length of 5.058 meters, a transport width of 1.7 meters, and a transport height of 2.485 meters. The machine has a tear-out force of 32 kN, a dredging depth of 3.455 meters, and a maximum horizontal reach of 5.575 meters. The bucket capacity is 0.12 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Kubota KX042-4 α

Technical specs - KX042-4 α Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.15 t
Transport length
5.06 m
Transport width
1.7 m
Transport height
2.49 m
Bucket capacity
0.12 m³
Track width
350 mm
Driver protection
KbR
Max. Reach horizontal
5.575 m
Dredging depth
3.455 m
Tear-out force
32 kN
Engine manuf.
Kubota
Engine type
D1803-CR-T-E5
Engine power
29.7 kW
Displacement
1.826 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Cylinder bore x stroke
87x102 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota KX042-4 α FAQ

When was the Kubota KX042-4 u03b1 manufactured?

The Kubota KX042-4 u03b1 was first produced in 2022.

How much does the Kubota KX042-4 u03b1 weigh?

The Kubota KX042-4 u03b1 weighs 4.15 tons.

What are the transport dimensions of the Kubota KX042-4 u03b1 mini excavator?

The Kubota KX042-4 u03b1 has a transport length of 5.06 meters, a transport width of 1.7 meters, and a transport height of 2.49 meters.

What is the track width of the Kubota KX042-4 u03b1's undercarriage?

The Kubota KX042-4 u03b1 has a track width of 350 mm.

What is the excavation performance of the Kubota KX042-4 u03b1 mini excavator?

The Kubota KX042-4 u03b1 mini excavator has a dredging depth of 3.455 meters and a maximum horizontal reach of 5.575 meters.

What is the tear-out force of the Kubota KX042-4 u03b1 mini excavator?

The Kubota KX042-4 u03b1 mini excavator has a tear-out force of 32 kN.

What is the bucket capacity of the Kubota KX042-4 u03b1 mini excavator?

The Kubota KX042-4 u03b1 mini excavator has a bucket capacity of 0.12 cubic meters.

What operator safety and support features does the Kubota KX042-4 u03b1 have?

The Kubota KX042-4 u03b1 is equipped with a cabin that includes ROPS for driver protection.

How much is a Kubota KX042-4 u03b1 Mini excavator (2022u20132025) worth?

The residual value of the Kubota KX042-4 u03b1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
