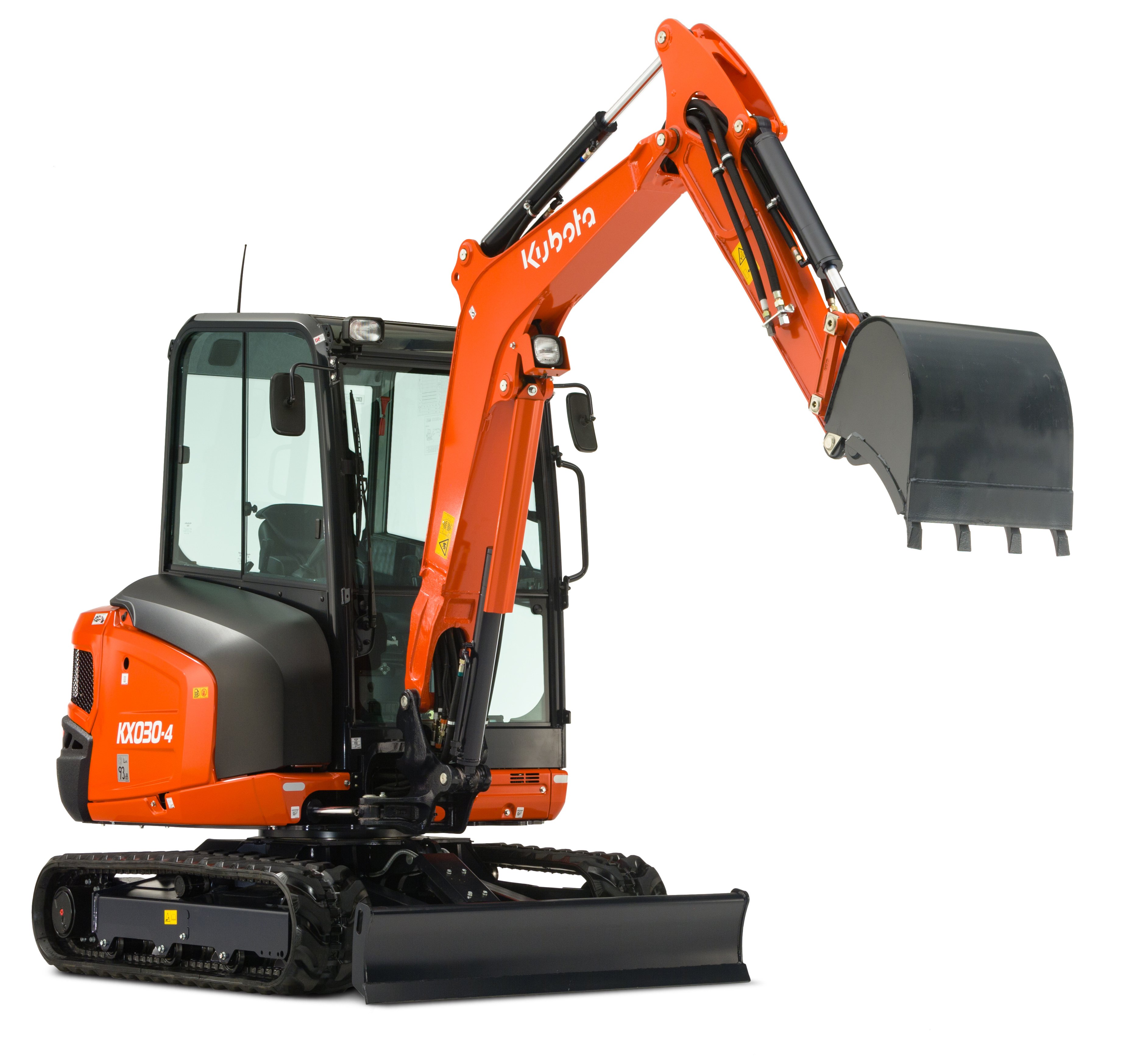

Kubota KX030-4 GL HI excavator specs (2017 - 2023)

Rate this machine now!

The KX 030-4 GL HI mini excavator model is manufactured by Kubota. Find and download detailed specs and data sheets for this machi... Read more

The KX 030-4 GL HI mini excavator model is manufactured by Kubota. Find and download detailed specs and data sheets for this machine here.

The Kubota KX 030-4 GL HI is a 2.79t machine with Kubota engine which powers this model with up to 17.7kW or 23 horse power. The Kubota KX 030-4 GL HI can be grouped in the medium sized machine segment in the mini excavators category. The model's dimensions are 4.57m x 1.5m x 2.42m. The bucket capacity of KX 030-4 GL HI is 0.06m³, which is above average for this type of machine.

Since 2017, this model has included Rubber track and Blade. Quick hitch mech., Aircondition and Track adaption are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Kubota KX 030-4 GL HI specs data sheet.

This model can be acquired for a list price between €48000 and €61000. Production of the KX 030-4 GL HI continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 38 other mini excavators, which range from 1t up to 5.5t are produced by Kubota. Of these, KX 71-3 GL, KX 057-4 and also KX 61-3 GL are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Kubota KX 030-4 GL HI specs data sheet on LECTURA Specs today!

Technical specs - KX030-4 GL HI Kubota


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 2.79 t
  • Transport length 4.57 m
  • Transport width 1.5 m
  • Transport height 2.42 m
  • Bucket capacity 0.06 m³
  • Bucket width 0.6 m
  • Track width 300 mm
  • Driver protection KbR
  • Max. Reach horizontal 4.8 m
  • Dredging depth 2.87 m
  • Tear-out force 25.4 kN
  • Model series KX
  • Engine manuf. Kubota
  • Engine type V1504E4
  • Engine power 17.5 kW
  • Displacement 1.5 l
  • Revolutions at max torque 2250 rpm
  • No. of cylinders 4
  • Cylinder bore x stroke 78x78.4 mm
  • Emission level EU 1

More technical details, like: average fuel consumption, fuel consumption range (min - max), bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, max. torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

  • Track adjustment
  • Rubber track
  • Blade
  • Aircondition
  • Quick hitch hydr.
  • Quick hitch mech.

Carbon footprint calculator for Mini Excavators

Use the ERA equipment CO2 Calculator to find out the CO2 emissions per hour of use of the Kubota KX030-4 GL HI or alternative Mini Excavators.

The CO2 emission evaluation can be performed considering different motor oil consumption scenarios or other variables.

or visit the ERA Equipment CO2 Calculator to calculate how to optimise your CO2 emissions.

service provided by ERA

Kubota KX030-4 GL HI overview

  • Kubota KX 030-4 GL HI features overview

    Powerful digging force
    The KX030-4 delivers an impressive bucket digging force. Its powerful and well-balanced arm and bucket allow the operator to dig quickly, deeply and efficiently even in the toughest of conditions. It provides power combined with excellent stability.
    Excellent visibility
    To help you perform your tasks more efficiently and safely, the KX030-4's cab offers a wide field of vision that enhances your awareness. The extra front and rear visibility from ground level allows you to take sensitive jobs easier in confined spaces minimizing risks for man or object. In addition, all boom hydraulic hoses have been enclosed inside the boom to reduce their damage so they can stay durable over the long term as well as improving your viewing area enabling you to better concentrate on the job.
  • Engine / Driveline and transmission

    1. Kubota original engine
    The KX030-4 is powered by Kubota's tough and reliable engine. Designed with the power to maximize digging and lifting performance, it also delivers minimized noise and vibration as well as meets all current engine emission regulations.
    Standard Equipment Engine/Fuel system
    KUBOTA Genuine Engine, Double Element Air Cleaner, Fuel Level Indicator Buzzer, Battery Isolator, Automatic Fuel Ventilation System, Water Separator
  • Hydraulics

    Simultaneous operation of four functions
    When simultaneous operation of boom, arm, bucket and swing is required, two variable pumps distribute an exact amount of oil flow to each actuator depending on the lever stroke. This process allows continuous high performance digging and dozing.
    Hydraulic system
    2 variable displacement pumps and 1 gear pump, pressure accumulator, hydraulic pressure check ports, Straight travel circuit, Auxiliary Hydraulic Circuit Line up to the arm end, 1. auxiliary circuit (AUX1) via foot pedal control (For Standard-Spec), AUX 1 & 2 proportional flow control of additional circuit (For High-Spec), Adjustable maximum oil flow at AUX1 via digital panel (For High-Spec), adjustable maximum oil flow on AUX2 by dial (For High-Spec), third line hydraulic return.
  • Tyres / Tracks

    Auto shift (High-Spec model only)
    The autoshift system allows automatic travel shift from high to low depending on traction force and terrain. This achieves smoother operations when dozing and turning.
    Compact machine width
    The 1500 mm track width provides all the stability needed for each task while being narrow enough to operate in places where space is limited.
    300 mm rubber track, Short sloped rubber scraper, 2-speed travel, Autoshift (For High-Spec), 3 double flange rail rollers on each track, 1 upper run roller.
  • Dimensions and weight

    Lift Point HeightLifting point radius (2.5m)Lifting point radius (max.)
    Blade DownBlade UpBlade DownBlade Up
    1.5m7.6 (0.78)7.6 (0.78)6.5 (0.66)---
    1.0m9.0 (0.92)7.4 (0.75)6.2 (0.63)4.9 (0.50)3.5 (0.36)3.0 (0.31)
    0.5m9.9 (1.01)7.2 (0.73)6.0 (0.61)---
    0m10.2 (1.04)7.0 (0.72)5.9 (0.60)---
    Machine weight*1Cabin / Canopy kg2790 / 2720
    Operating weight*2Cabin / Canopy kg2865 / 2795
    TypeWater-cooled diesel engine E-TVCS (Economical ecological type)"
    PS/rpm24 / 2250
    EngineOutput ISO9249 NET kW/rpm17.7 / 2250
    Number of cylinders4
    Bore × Stroke mm78 × 78.4
    Displacement cc1498
    Overall width mm1500
    Overall height (Cabin / Canopy) mm2420 / 2420
    Overall length mm4570
    DimensionsGround clearance mm300
    Dozer size (width × height) mm1500 × 300
    Rubber shoe width mm300
    Minimum front swivel radius with mm boom swing (left / right)1950 / 1560
    Boom swing angle (left / right) deg77 / 57
    P1 P2"Variable displacement pump
    P1 P2"Flow rate /min31.5 × 2
    Hydraulic pressure MPa (kgf/cm2 )23.5 (240)
    P3Gear pump
    Hydraulic SystemP3Flow rate € /min18.0
    Hydraulic pressure MPa (kgf/cm2 )19.6 (200)
    Auxiliary (AUX1)Max. flow rate e /min49.5
    Max. hydraulic pressure MPa (kgf/cm2 )23.5 (240)
    Auxiliary (AUX2)Max. flow rate /min18.0
    Max. hydraulic pressure MPa (kgf/cm2 )19.6 (200)
    Max. digging force arm kN (kgf)"16.2 (1650)
    Max. diggingforce bucket kN (kgf)"25.4 (2590)
    Hydraulicreservoir (tank / full)34 / 51
    Max. travelling SpeedLowkm/h2.9
    Ground contact pressureCabinkPa (kgf/cm2 )26.6 (0.27)
    CanopykPa (kgf/cm2 )25.9 (0.26)
    Swivelling speedrpm9.5
    Fuel tank capacity48
  • Other features

    Relaxing suspension seat
    The extremely comfortable reclining seat on the KX030-4 helps you work longer with less strain and fatigue. Plus, the seat offers weight compensation and adjustable wrist rests.
    Bigger cabin interior
    With the largest cabin in its class, the KX030-4 offers a generous foot space for improved comfort as well as high and wide door to allow faster and easier entry and exits from the cab.
    Easy-open front slide window
    Unlike many excavator windows, the front glass window of the KX030-4 opens with ease. Simply reverse the latches on the window sides and slide up. A throttle-assist mechanism makes this action
    Two-piece hose design
    Kubota's innovative two-piece hose design for the dozer blade reduces hose replacement time by nearly 60% compared to non-joint types. This virtually eliminates the need to enter the machine for maintenance.
  • Safety

    ROPS/OPG (top guard, level, canopy and cabin
    The ROPS/OPG (Top Guard, Level, Canopy and Cab) provide protection in case of accidental rollovers and falling objects.
    Front window guard mounting points
    Operators who need extra protection from flying chips and debris when using some attachments or in antivandalism. Kubota offers the window guard mounting points around the front window as standard.
    Safety system
    Engine start safety system on the left console, hydraulic lock-up system, swing negative brake, Kubota Genuine Theft Control System, Retractable seatbelt, Hydraulic pilot control lever with wrist rests, Front LCD panel with diagnostic function, front protection mounting points, switch for beacon, 12V power source.
    2 working lights on canopy, front guard (OPG, Front Guard Level I, ISO 10262), radio installation kit on the cab (antenna, 2 speakers, bracket) (For Standard spec), ROPS (Rollover Protective Structure, ISO3471), OPG (Operator Protective Guard, Top Guard Level I, ISO 10262), cabin heater for defrosting and dumping, weight adjustable full suspension seat (substance seat), Retractable seat belt, 2 working lights prepared at Cab, Radio mounting kit in Cabin (antenna, 2 speakers, holder for Radio) (For High-Spec), hydraulic pilot control lever with wrist rests, Intuitive panel with diagnostic function, front window power assisted with throttle damper, front protection mounting points, switches and harness for beacon light, 12V power source, emergency
    ROPS (Roll-over Protective Structure, ISO3471), OPG (Operator Protective Guard, Top Guard Level I, ISO 10262), weight adjustable full suspension seat (PVC seat)
  • Tables

    TypeStandard ModelHigh-Spec Model
    AUX1/AUX2● / -● / ●
    AUX1/AUX2 Proportional Flow Control-● / ●
    Auto shift-
