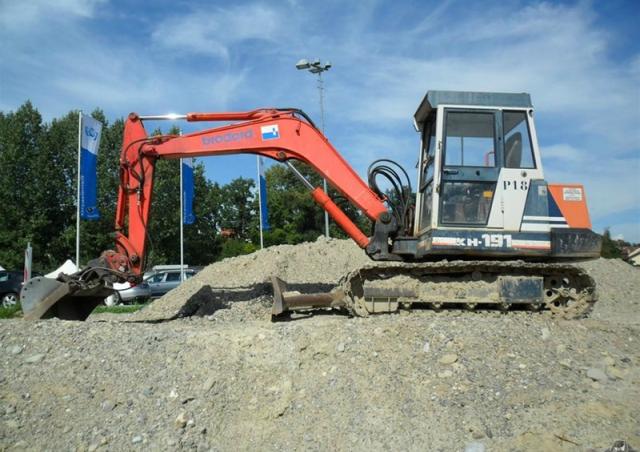

KH191 Kubota excavator specs & dimensions (1988 - 2026)

Kubota KH191 is a crawler excavator manufactured since 1988. It has a weight of 6 tons and a track width of 550 mm. The transport …

Kubota KH191 is a crawler excavator manufactured since 1988. It has a weight of 6 tons and a track width of 550 mm. The transport dimensions are 5.91 meters in length, 2.15 meters in width, and 2.56 meters in height. The dredging depth is 3.27 meters, with a maximum horizontal reach of 6.49 meters. The bucket width is 0.7 meters, and the bucket capacity is 0.16 cubic meters.

Mini Excavators Kubota KH191

Technical specs - KH191 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.93 t
Transport length
5.91 m
Transport width
2.15 m
Transport height
2.56 m
Bucket capacity
0.16 m³
Bucket width
0.7 m
Track width
550 mm
Max. Reach horizontal
6.49 m
Dredging depth
3.27 m
Engine manuf.
Kubota
Engine type
S2800D
Engine power
44 kW
Displacement
2.791 l
Revolutions at max torque
2600 rpm
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, driver protection, tear-out force, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota KH191 FAQ

When was the Kubota KH191 manufactured?

The Kubota KH191 was first produced in 1988.

How much does the Kubota KH191 mini excavator weigh?

The Kubota KH191 mini excavator weighs 5.93 tons.

What are the transport dimensions of the Kubota KH191 mini excavator?

The Kubota KH191 has a transport length of 5.91 meters, a transport width of 2.15 meters, and a transport height of 2.56 meters.

What is the track width of the Kubota KH191 mini excavator?

The Kubota KH191 mini excavator has a track width of 550 mm.

What are the excavation performance specifications of the Kubota KH191 mini excavator?

The Kubota KH191 mini excavator has a dredging depth of 3.27 meters and a maximum horizontal reach of 6.49 meters.

What are the specifications of the primary work tool bucket on the Kubota KH191 mini excavator?

The Kubota KH191 mini excavator has a bucket with a capacity of 0.16 cubic meters and a width of 0.7 meters.

How much is a Kubota KH191 Mini excavator (1988u20132025) worth?

The residual value of the Kubota KH191 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kubota KH191 overview

Kubota KH191 features overview

Safety system
Engine start safety system on the left console, Travel Lock System, swing lock system, Kubota Genuine anti-theft system, battery isolator, ROPS (Rollover Protective Structure, ISO3471), TOPS (Tip-Over Protective Structure), OPG(Operator Protective Guard, Level, Weight-adjustable semi suspension seat, Seatbelt, Hydraulic Pilot Control lever with wrist, cab heater for defrost and dissing with air ventilation, emergency exit hammer, front window power assisted with throttle damper, 12V socket, location for radio, switches and harness for beacon lighting, digital panel with diagnostic function, front guard attachment point, side mirrors.
Canopy
ROPS (Roll-over Protective Structure, ISO3471), TOPS (Tip-Over Protective Structure), OPG(Operator Protective Guard, level, weight adjustable semi suspension seat, seat belt, hydraulic pilot control lever with wrist, 12V socket, switch and belt for beacon, digital panel with diagnostic function, front guard attachment point.

Engine / Driveline and transmission

Kubota original engine
The KX015-4 is powered by Kubota's impressive D782 13 hp engine. Designed with the power to maximize digging and lifting performance, it also delivers minimized noise and vibration as well as meets all current engine emission regulations.
Engine/Fuel system
Double Element Air Cleaner, Fuel Refueling Buzzer, Extended Fuel Filler

Hydraulics

Hydraulic system
Pressure accumulator, Hydraulic pressure test ports, third line hydraulic direct recirculation for AUX, variable displacement variable-pump, straight travel circuit.

Tyres / Tracks

Integrated travel motor hoses Integrated travel motor hoses
Kubota has the travel motor hoses within the track frame for added Kubota enclosed the travel motor hoses inside the track frame for extra protection.Protection.

Dimensions and weight

Lift Point HeightLifting point radius (2m)Lifting point radius (max.)
Over-frontOver-sideOver-frontOver-side
Blade DownBlade UPBlade DownBlade UP
1.5m3.0 (0.30)3.4 (0.35)2.5 (0.26)––Lift Point –
1.0m4.5 (0.46)3.5 (0.36)2.3 (0.24)–––
0.5m5.4 (0.55)3.3 (0.34)2.1 (0.22)2.6 (0.27)1.6 (0.17)1.1 (0.11)
0m5.3 (0.54)3.2 (0.32)2.0 (0.21)––– Lift Point Height
ModelKX015-4
Machine weightCabin / Canopy kg1470 / 1420
Operating weightCabin / Canopy kg1545 / 1495
Bucket capacity std. SAE/CECE m3"0.035
Bucket widthWithside teeth mm422
Without side teeth mm402
ModelD782-BH
TypeWater-cooled diesel engine E-TVCS"
Output ISO9249PS/rpm13 / 2300
EnginekW/rpm9.6 / 2300
Number of cylinders3
Bore x Strokemm67 x 73.6
Displacementcc778
Overall lengthmm3710
Overall heightCabinmm2350
Canopymm2330
Swivelling speed rpm9.1
Rubber shoe width mm230
Tumbler distance mm1090
Dozer size (widthx height)mm990 x 230
P1 P2"Variable displacement pump
Hydraulic pumpsFlow rate e /min16.6
Hydraulic pressure MPa (kgf/cm2 )20.6 (210)
P3Gear Type
Flow rate /min10.4
Hydraulic pressure MPa (kgf/cm2 )20.1 (205)
Max. digging forceArmkN (kgf)7.3 (740)
Bucket kN (kgf)12.7 (1300)
Boom swing angle (left/right) deg75 / 60
Auxiliary circuitFlow rate /min27
Hydraulic pressure MPa (kgf/cm2 )20.6 (210)
Hydraulic reservoir28
Fuel tank capacity21
Max. travellingLowkm/h2.1
speed KX015-4 canopyHighkm/h*With -
Ground contactCabinLifting point radius kPa (kgf/cm2 )(2m) 25.5 (0.26) Lifting
Lift Point Height pressureCanopyOver-front kPa (kgf/cm2 )24.5 (0.25) Over-front Over-side
Ground clearance 1.5mBlade Down 3.0 (0.30)Blade UP mm 3.4 (0.35)Blade Down 2.7 (0.27) 160 –

Other features

Spacious cabin
To minimize fatigue, our new larger cab offers greater comfort over our previous model. It provides more legroom with a flat floor plus an adjustable suspension seat.
Easy cabin entry and exit
Increasing the cab door width by 30% at the narrowest point allows quick access to and from the cabin making operations that require frequent exits such as trenches and piping much easier.
Easy maintenance Easy maintenance
Kubota has made routine maintenance extremely easy by consolidating the Kubota by bringing primary engine components together on one side for easier access. Engine and primary motor components on one side for easier access. Engine and other vital components can be inspected quickly and easily.
