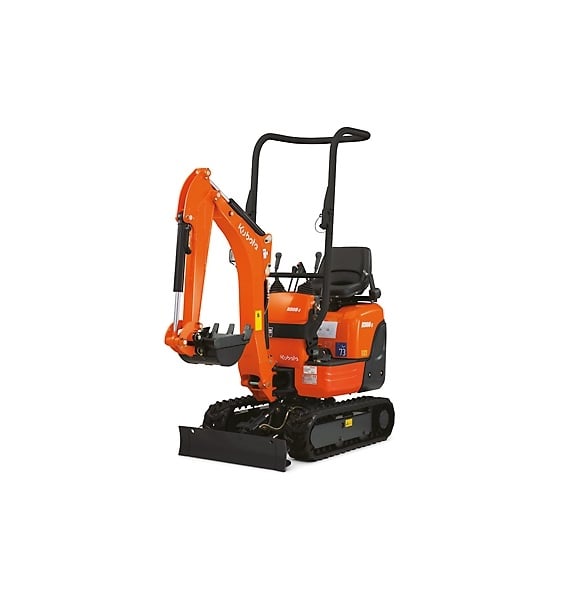

K008-3 Kubota excavator specs & dimensions (2022 - 2026)

Kubota K008-3 is a Mini Excavator manufactured since 2022, with a weight of 0.98 t. It features a track width of 180 mm, a transpo…

Kubota K008-3 is a Mini Excavator manufactured since 2022, with a weight of 0.98 t. It features a track width of 180 mm, a transport length of 2.75 m, a transport width of 0.86 m, and a transport height of 2.23 m. The machine has a tear-out force of 10 kN, a dredging depth of 1.72 m, and a maximum horizontal reach of 3.03 m. The bucket width is 0.35 m, with a bucket capacity ranging from 0.018 m³ to 0.022 m³. Special equipment includes a blade and rubber track.

Mini Excavators Kubota K008-3

Technical specs - K008-3 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.98 t
Transport length
2.75 m
Transport width
0.86 m
Transport height
2.23 m
Bucket capacity min.
0.018 m³
Bucket capacity max.
0.022 m³
Bucket width
0.35 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.03 m
Dredging depth
1.72 m
Tear-out force
10 kN
Engine manuf.
Kubota
Engine type
D722-BH5
Engine power
7.4 kW
Displacement
0.719 l
Revolutions at max torque
2050 rpm
No. of cylinders
3
Cylinder bore x stroke
67x68 mm
Emission level
V

More technical details, like: bucket capacity, standard tyres, model series, dimension lxwxh, max. torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota K008-3 FAQ

When was the Kubota K008-3 manufactured?

The Kubota K008-3 was first produced in 2022.

How much does the Kubota K008-3 weigh?

The Kubota K008-3 weighs 0.98 tons.

What are the transport dimensions of the Kubota K008-3 mini excavator?

The Kubota K008-3 has a transport length of 2.75 meters, a transport width of 0.86 meters, and a transport height of 2.23 meters.

What is the track width of the Kubota K008-3 mini excavator?

The Kubota K008-3 mini excavator has a track width of 180 mm.

What is the excavation performance of the Kubota K008-3 mini excavator?

The Kubota K008-3 has a dredging depth of 1.72 meters and a maximum horizontal reach of 3.03 meters.

What is the tear-out force of the Kubota K008-3 mini excavator?

The Kubota K008-3 mini excavator has a tear-out force of 10 kN.

What are the bucket specifications of the Kubota K008-3 mini excavator?

The Kubota K008-3 mini excavator has a bucket capacity of 0.02 cubic meters and a bucket width of 0.35 meters.

What operator safety features does the Kubota K008-3 have?

The Kubota K008-3 is equipped with a roll-over bar for driver protection.

How much is a Kubota K008-3 Mini excavator (2022u20132025) worth?

The residual value of the Kubota K008-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
