PC30MR-3 Komatsu excavator specs & dimensions (2008 - 2017)

Model rating
6,00 / 10

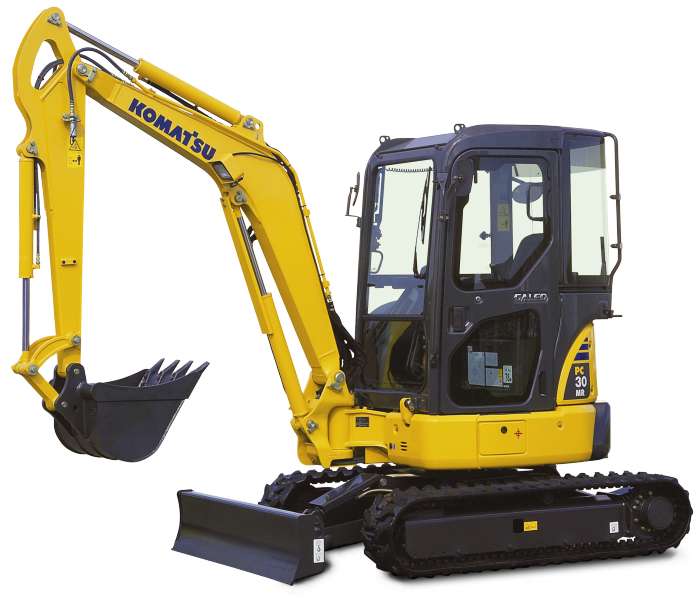

Komatsu PC30MR-3 is a mini excavator manufactured from 2008 to 2017, with a weight of 3.29 tons. It features a track width of 300 …

Komatsu PC30MR-3 is a mini excavator manufactured from 2008 to 2017, with a weight of 3.29 tons. It features a track width of 300 mm and has transport dimensions of 4.6 meters in length, 2.52 meters in width, and 1.6 meters in height. The bucket width is 0.6 meters, with a capacity ranging from 0.035 m³ to 0.13 m³. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Komatsu PC30MR-3
Mini Excavators Komatsu PC30MR-3
Mini Excavators Komatsu PC30MR-3
Mini Excavators Komatsu PC30MR-3
Mini Excavators Komatsu PC30MR-3
Mini Excavators Komatsu PC30MR-3
Mini Excavators Komatsu PC30MR-3
Mini Excavators Komatsu PC30MR-3
Mini Excavators Komatsu PC30MR-3
Mini Excavators Komatsu PC30MR-3

Visit Komatsu live at

Technical specs - PC30MR-3 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.29 t
Transport length
4.6 m
Transport width
2.52 m
Transport height
1.6 m
Bucket capacity min.
0.035 m³
Bucket capacity max.
0.13 m³
Bucket width
0.6 m
Track width
300 mm
Driver protection
KbR
Max. Reach horizontal
5.39 m
Dredging depth
3.13 m
Tear-out force
17.6 kN
Model series
PC
Engine manuf.
Komatsu
Engine type
3D88E 6
Engine power
21.6 kW
Displacement
1.64 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PC30MR-3 FAQ

When was the Komatsu PC30MR-3 manufactured?

The Komatsu PC30MR-3 was manufactured from 2008 to 2017.

How much does the Komatsu PC30MR-3 weigh?

The Komatsu PC30MR-3 weighs 3.29 tons.

What are the transport dimensions of the Komatsu PC30MR-3 mini excavator?

The Komatsu PC30MR-3 has transport dimensions of 4.6 meters in length, 2.52 meters in width, and 1.6 meters in height.

What is the track width of the Komatsu PC30MR-3's undercarriage?

The Komatsu PC30MR-3 has a track width of 300 mm on its undercarriage.

What are the excavation performance specifications of the Komatsu PC30MR-3?

The Komatsu PC30MR-3 has a dredging depth of 3.13 meters and a maximum horizontal reach of 5.39 meters.

What is the tear-out force of the Komatsu PC30MR-3 mini excavator?

The Komatsu PC30MR-3 mini excavator has a tear-out force of 17.6 kN.

What are the bucket specifications of the Komatsu PC30MR-3 mini excavator?

The Komatsu PC30MR-3 has a bucket with a maximum capacity of 0.13 cubic meters, a minimum capacity of 0.04 cubic meters, and a width of 0.6 meters.

What operator safety features does the Komatsu PC30MR-3 have?

The Komatsu PC30MR-3 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Komatsu PC30MR-3 Mini excavator (2008u20132017) worth?

The residual value of the Komatsu PC30MR-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
