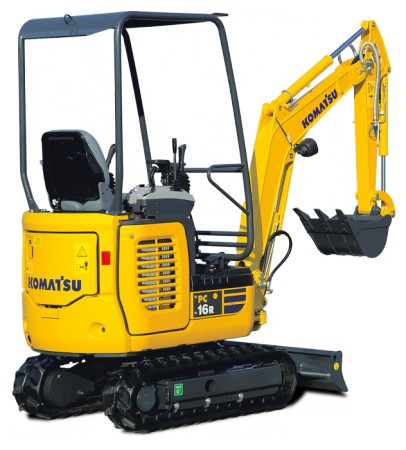

PC16R-3 Komatsu excavator specs & dimensions (2020 - 2021)

Komatsu PC16R-3 is a mini excavator manufactured from 2020 to 2021. It has a weight of 1.57 tons and a track width of 230 mm. The …

Komatsu PC16R-3 is a mini excavator manufactured from 2020 to 2021. It has a weight of 1.57 tons and a track width of 230 mm. The transport dimensions are 3.53 meters in length, 1 meter in width, and 2.32 meters in height. The machine features a tear-out force of 14.22 kN, a dredging depth of 2.16 meters, and a maximum horizontal reach of 3.735 meters. The bucket width is 0.35 meters, with a capacity ranging from 0.03 to 0.06 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Komatsu PC16R-3

Visit Komatsu live at

Technical specs - PC16R-3 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.57 t
Transport length
3.53 m
Transport width
1 m
Transport height
2.32 m
Bucket capacity min.
0.03 m³
Bucket capacity max.
0.06 m³
Bucket width
0.35 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.735 m
Dredging depth
2.16 m
Tear-out force
14.22 kN
Engine manuf.
Komatsu
Engine type
3D67E-2A
Engine power
11.6 kW
Displacement
0.778 l
Revolutions at max torque
2600 rpm
Max. torque
44.1/1800 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Komatsu PC16R-3 FAQ

When was the Komatsu PC16R-3 manufactured?

The Komatsu PC16R-3 was manufactured from 2020 to 2021.

How much does the Komatsu PC16R-3 weigh?

The Komatsu PC16R-3 weighs 1.57 tons.

What are the transport dimensions of the Komatsu PC16R-3 mini excavator?

The Komatsu PC16R-3 has a transport length of 3.53 meters, a transport width of 1 meter, and a transport height of 2.32 meters.

What is the track width of the Komatsu PC16R-3 mini excavator's undercarriage?

The Komatsu PC16R-3 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Komatsu PC16R-3 mini excavator?

The Komatsu PC16R-3 has a dredging depth of 2.16 meters and a maximum horizontal reach of 3.735 meters.

What is the tear-out force, a power-related specification, of the Komatsu PC16R-3 mini excavator?

The Komatsu PC16R-3 mini excavator has a tear-out force of 14.22 kN.

What are the bucket specifications of the Komatsu PC16R-3 mini excavator?

The Komatsu PC16R-3 has a bucket width of 0.35 meters, with a maximum capacity of 0.06 cubic meters and a minimum capacity of 0.03 cubic meters.

What operator safety and support features does the Komatsu PC16R-3 have?

The Komatsu PC16R-3 is equipped with a canopy for driver protection.

How much is a Komatsu PC16R-3 Mini excavator (2020u20132021) worth?

The residual value of the Komatsu PC16R-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
