SK 35 SR 2 Kobelco excavator specs & dimensions (2003 - 2004)

Model rating
8,00 / 10

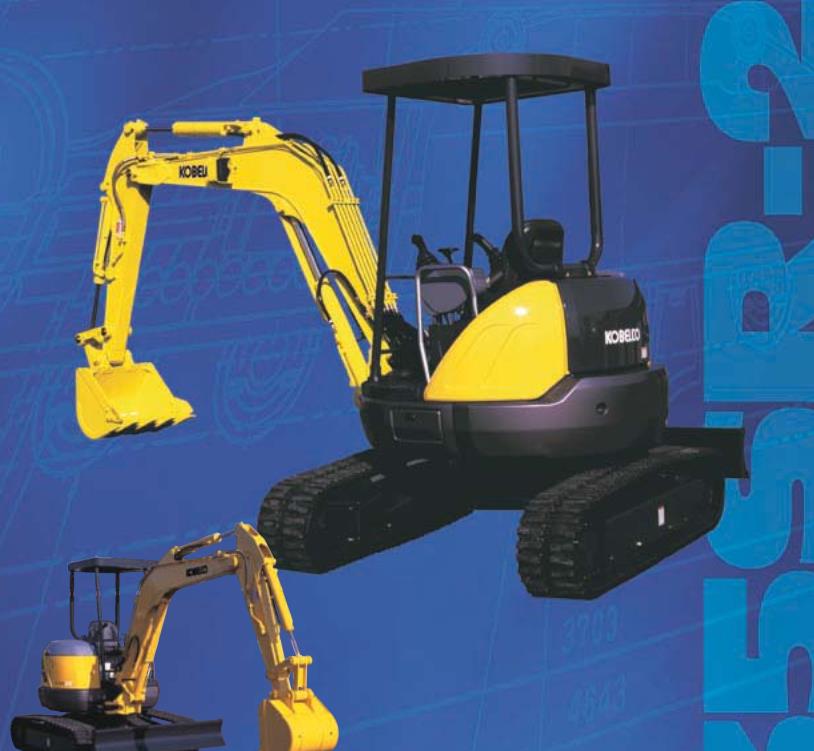

Kobelco SK 35 SR 2 is a mini excavator manufactured from 2003 to 2004. It has a weight of 3.62 tons and a track width of 300 mm. T…

Kobelco SK 35 SR 2 is a mini excavator manufactured from 2003 to 2004. It has a weight of 3.62 tons and a track width of 300 mm. The transport dimensions are 4.72 meters in length, 1.7 meters in width, and 2.5 meters in height. The tear-out force is 6.383 kN, and the bucket capacity ranges from 0.06 m³ to 0.187 m³. Special equipment includes a blade and rubber tracks.

Mini Excavators Kobelco SK 35 SR 2

Visit Kobelco live at

Technical specs - SK 35 SR 2 Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.62 t
Transport length
4.72 m
Transport width
1.7 m
Transport height
2.5 m
Bucket capacity min.
0.06 m³
Bucket capacity max.
0.187 m³
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.4 m
Dredging depth
3.11 m
Tear-out force
6.383 kN
Engine manuf.
Yanmar
Engine type
3TNE82A
Engine power
18 kW
Displacement
1.33 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity, bucket width, standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kobelco SK 35 SR 2 FAQ

When was the Kobelco SK 35 SR 2 manufactured?

The Kobelco SK 35 SR 2 was manufactured from 2003 to 2004.

How much does the Kobelco SK 35 SR 2 weigh?

The Kobelco SK 35 SR 2 weighs 3.62 tons.

What are the transport dimensions of the Kobelco SK 35 SR 2 mini excavator?

The Kobelco SK 35 SR 2 has a transport length of 4.72 meters, a transport width of 1.7 meters, and a transport height of 2.5 meters.

What is the track width of the Kobelco SK 35 SR 2 mini excavator?

The Kobelco SK 35 SR 2 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Kobelco SK 35 SR 2 mini excavator?

The Kobelco SK 35 SR 2 mini excavator has a dredging depth of 3.11 meters and a maximum horizontal reach of 4.4 meters.

What is the tear-out force of the Kobelco SK 35 SR 2 mini excavator?

The Kobelco SK 35 SR 2 mini excavator has a tear-out force of 6.383 kN.

What are the bucket capacity specifications of the Kobelco SK 35 SR 2 mini excavator?

The Kobelco SK 35 SR 2 has a bucket capacity ranging from 0.06 to 0.19 cubic meters.

What operator safety and support feature does the Kobelco SK 35 SR 2 have?

The Kobelco SK 35 SR 2 is equipped with a canopy for driver protection.

How much is a Kobelco SK 35 SR 2 Mini excavator (2003u20132004) worth?

The residual value of the Kobelco SK 35 SR 2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kobelco SK 35 SR 2 overview

Dimensions and weight

ARM LENGTH4' 4"""(1.32 m)
AOverall length15' 6"""(4.72 m)
BOverall width5' 7"""(1.7 m)
COverall height (to top of canopy)8' 3"""(2.50 m)
DBasic machine length8' 6"""(2.58 m)
EGround clearance of rear end*1' 10"""(.57 m)
FCenter distance of tumblers5' 7"""(1.70 m)
GOverall length of crawler7' 1"""(2.15 m)
HTrack guage4' 7"""(1.40 m)
-Width of crawler shoe (rubber)11.81"""(.30 m)
JGround clearance of undercarriage12.6"""(.32 m)
KTail swing radius2' 9"""(.85 m)
LTail swing overhang (not shown)0' 0"""(0 m)
Engine Make and ModelYanmar3TNE82A
Displacementin3 (1)81.2 (1.33)
Hydraulic Pumpno & type42VP+2FG
Hydraulic System Oil Capacitygal (I)12.7(48)
Rated Oil Flowgpm (Ipm)2×9.2+6.7+3.2(2x34.8+25.4+12.1)
Auxiliary Flowgpm (Ipm)15.9(60.2)
Operating Pressures: Implement/Travel/Dozer/Swingpsi (mPa)3278"(22.6)
Bucket Digging Force - SAEIbf (kN)5745"(52.9)
- ISOIbf (kN)6383"(58.8)
Arm Crowding Force - SAEIbf (kN)4002"(34.3)
- ISOIbf (kN)4084"(35.0)
Drawbar PullIbf (kN)8820"(39.2)
Travel Speed - high/lowmph (kmh)2.5/1.6(4.0/2.5)
Gradeability% (deg)58%(30)
Swing Speedrev/min8.6
Fuel Tank Capacitygal (I)10(38)
ATTACHMENT4' 4"""(1.32 m)
AMax digging reach17' 0"""(5.19 m)
BMax digging reach at ground level16' 7"""(5.06 m)
CMax digging depth*10' 2"""(3.11 m)
DMax digging height*14' 5"""(4.40 m)
EMax dumping clearance*10' 7"""(3.21 m)
FMin dumping clearance*4' 0"""(1.22 m)
GMax vertical wall digging depth*4' 11"""(1.51 m)
HMin front swing radius7' 7"""(2.31 m)
-Height at min. front swing radius11' 7"""(3.54 m)
JHorizontal digging distance - stroke7' 10"""(2.39 m)
KHorizontal digging distance - min5' 5"""(1.66 m)

Tables

A35SR-2 Arm: 4' 4"" (1.32 m) Bucket: 3.9 cu. ft. (0.11 m3) 200 lb (91 kg)"
5.0' (1.5 m)7.5' (2.3 m)10' (3.0 m)12.5' (3.8 m)
B
10',Ib,,,,,,,"*1,3101,140"
(3.0 m)kg*590510
7.5',Ib,,,,,,,"*1,3901,120"
(2.3 m)kg*630500
5',Ib,,,"*2,8802,470*1,9401,550*1,5901,070"
(1.5 m),kg,,,"*1,3001,120",*880,700,*720,480
2.5',Ib,,,"*3,9502,260*2,4101,450*1,8001,020"
(0.8 m),kg,,,"*1,7901,020*1,090",660,*820,460
Ground,Ib,"*2,570*2,570*4,2402,190*2,6801,390*1,950",990
Level,kg,"*1,160*1,160*1,920",990,"*1,210",630,*880,450
-2.5',Ib,"*4,060*4,060*4,0602,190*2,6801,380*1,930",980
(-0.8 m),kg,"*1,840*1,840*1,840",990,"*1,210",620,*870,440
-5,Ib,"*5,6804,830*3,5002,220*2,3601,400",,
(-1.5 m),kg,"*2,5702,190*1,5801,010*1,070",630,,
-7.5',Ib,"*3,690*3,690*2,270*2,270",,,,
(-2.3 m),kg,"*1,670*1,670*1,030*1,030",,,,
