HD30V5 Kato excavator specs & dimensions (2023 - 2026)

Weight: 3.213t – Transport length: 4.47m – Transport width: 1.549m – Transport height: 2.464m – Bucket capacity: 0.091m³ – Bucket …

Weight: 3.213t – Transport length: 4.47m – Transport width: 1.549m – Transport height: 2.464m – Bucket capacity: 0.091m³ – Bucket capacity min.: 0.091m³

Check out detailed specifications, information and technical data for Kato HD30V5 excavator manufactured between 2023 - 2026. Get more in-depth insight with Kato HD30V5 digger specifications. See information, like: Weight: 3.213t – Transport length: 4.47m – Transport width: 1.549m – Transport height: 2.464m – Bucket capacity: 0.091m³ – Bucket capacity min.: 0.091m³ and more.

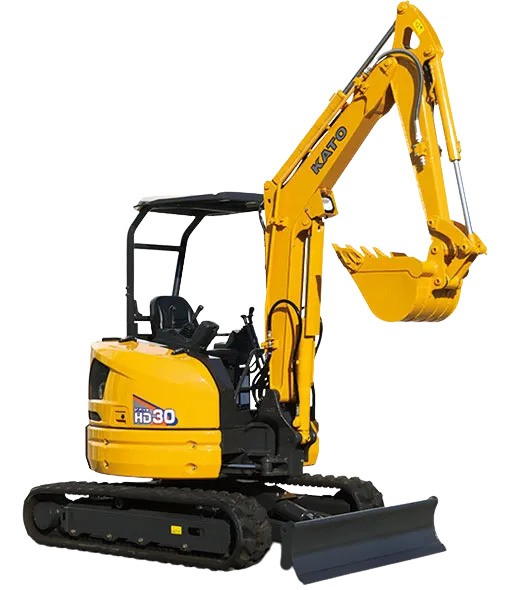

Mini Excavators Kato HD30V5

Technical specs - HD30V5 Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.213 t
Transport length
4.47 m
Transport width
1.549 m
Transport height
2.464 m
Bucket capacity
0.091 m³
Bucket capacity min.
0.091 m³
Bucket width
0.457 m
Max. Reach horizontal
5.156 m
Dredging depth
2.972 m
Model series
V
Engine manuf.
Yanmar
Engine type
3TNV88F
Engine power
17.2 kW
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity max., track width, standard tyres, driver protection, tear-out force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD30V5 FAQ

When was the Kato HD30V5 manufactured?

The Kato HD30V5 was first produced in 2023.

How much does the Kato HD30V5 mini excavator weigh?

The Kato HD30V5 mini excavator weighs 3.21 tons.

What are the transport dimensions of the Kato HD30V5 mini excavator?

The Kato HD30V5 has a transport length of 4.47 meters, a transport width of 1.55 meters, and a transport height of 2.46 meters.

What is the excavation performance of the Kato HD30V5 mini excavator?

The Kato HD30V5 has a dredging depth of 2.972 meters and a maximum horizontal reach of 5.156 meters.

What are the bucket specifications of the Kato HD30V5 mini excavator?

The Kato HD30V5 has a bucket capacity of 0.091 cubic meters, a minimum bucket capacity of 0.09 cubic meters, and a bucket width of 0.457 meters.
