30V4 Kato excavator specs & dimensions (2017 - 2023)

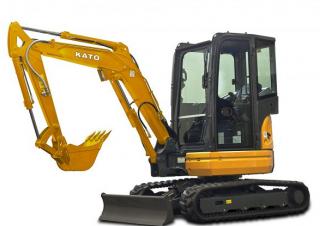

Kato 30V4 is a mini excavator manufactured since 2017, with a weight of 3.03 tons. It features a track width of 300 mm, a transpor…

Kato 30V4 is a mini excavator manufactured since 2017, with a weight of 3.03 tons. It features a track width of 300 mm, a transport length of 4.44 meters, a transport width of 1.55 meters, and a transport height of 2.48 meters. The machine has a tear-out force of 29.1 kN, a dredging depth of 2.7 meters, and a maximum horizontal reach of 4.9 meters. The bucket width is 0.55 meters with a capacity of 0.09 cubic meters. It is equipped with a blade as special equipment.

Mini Excavators Kato 30V4

Technical specs - 30V4 Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.03 t
Transport length
4.44 m
Transport width
1.55 m
Transport height
2.48 m
Bucket capacity
0.09 m³
Bucket width
0.55 m
Track width
300 mm
Driver protection
FD
Max. Reach horizontal
4.9 m
Dredging depth
2.7 m
Tear-out force
29.1 kN
Model series
V
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
17.5 kW
Emission level
Tier 4

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato 30V4 FAQ

When was the Kato 30V4 manufactured?

The Kato 30V4 was manufactured from 2017 to 2023.

How much does the Kato 30V4 mini excavator weigh?

The Kato 30V4 mini excavator weighs 3.03 tons.

What are the transport dimensions of the Kato 30V4 mini excavator?

The Kato 30V4 mini excavator has a transport length of 4.44 meters, a transport width of 1.55 meters, and a transport height of 2.48 meters.

What is the track width of the Kato 30V4 mini excavator?

The Kato 30V4 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Kato 30V4 mini excavator?

The Kato 30V4 mini excavator has a dredging depth of 2.7 meters and a maximum horizontal reach of 4.9 meters.

What is the tear-out force of the Kato 30V4 mini excavator?

The Kato 30V4 mini excavator has a tear-out force of 29.1 kN.

What are the specifications of the primary work tool bucket on the Kato 30V4 mini excavator?

The Kato 30V4 mini excavator has a bucket with a capacity of 0.09 cubic meters and a width of 0.55 meters.

What operator safety and support features does the Kato 30V4 have?

The Kato 30V4 is equipped with a canopy for driver protection.

How much is a Kato 30V4 Mini excavator (2017u20132023) worth?

The residual value of the Kato 30V4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kato 30V4 overview

Engine / Driveline and transmission

LMotor compartment Llarge covers for easier access Lamella reduction by 3 measures 1 Resin-made fuel tank 2 Large fuel filter 3 Water separator Hydraulic tank with air breather guard Lright hand cover The warning indicator turns on when water is collected to the specified level.

Tyres / Tracks

24％
Easily adjustable pins and longer life Superlapp structure (conventional) Hard track spiral structure Extended structure and light care

Dimensions and weight

Std. ArmLong arm
AMax. digging radius49005190
BMax. digging depth27003000
CMax. digging height46304720
DMax. dumping height32903390
EMax. vertical digging depth22102470
FMin. front turning radius20802110
At right boom swing17901820
Other optionsRemarks
◯Dust preventive netFor Radiator
◯Rear-view mirrorFor combination with Steel Cabin
◯Additional counterweight Ⓘ
◯Overload relief valve
◯Motion alarm

Other features

ROPS/FOPS Canopy (Std.) The rubber shoe is provided for either 2 years or 1500 hours against steel rope cut-off(the general terms and conditions are based on our warranty standards.)
WORLD-STANDARD SAFETY
Lrops/Fops Compliance Operator's Room Lrops/Fops canopy (standard) ROPS cab (option) FOPS cabin (option)

Tables

DescriptionStandard equipmentOptional equipmentRemarks
Operator roomROPS/FOPS Canopy (4-Post)ROPS Cabin Ⓐ
FOPS Guard Heater or Air-conditioner2-Post Canopy Ⓑ(※)(※) No ROPS compatibility
SeatSuspension SeatHigh back suspension seat ⒸFabric suspension seat
Control leverwith propotional switch Ⓓw/o propotional switch（※）(※) combination with Ⓖ
Lever patternType A （ISO standard）AF changerABCD changer Ⓔ
Control pedalBoom swing pedalTraction foot pedals Ⓕ1st aux. hydraulic control pedal Ⓖ
CrawlerRubber shoesSteel shoesRubber Pads Ⓗ
ArmStandard armLong arm (+300mm)
BuacketStandard bucketDigging buckets (※)Loading buckets (※)(※) Various sizes
Auxiliary hydraulics1st auxiliary hydraulic piping2nd auxiliary hydraulic piping3rd auxiliary hydraulic piping
