HD27V5 Kato Imer excavator specs & dimensions (2023 - 2026)

Weight: 2.855t – Transport length: 4m – Transport width: 1.55m – Transport height: 2.47m – Bucket capacity: 0.08m³ – Bucket capaci…

Weight: 2.855t – Transport length: 4m – Transport width: 1.55m – Transport height: 2.47m – Bucket capacity: 0.08m³ – Bucket capacity min.: 0.08m³

Check out detailed specifications, information and technical data for Kato Imer HD27V5 excavator manufactured between 2023 - 2026. Get more in-depth insight with Kato Imer HD27V5 digger specifications. See information, like: Weight: 2.855t – Transport length: 4m – Transport width: 1.55m – Transport height: 2.47m – Bucket capacity: 0.08m³ – Bucket capacity min.: 0.08m³ and more.

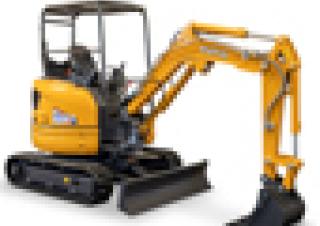

Mini Excavators Kato Imer HD27V5

Technical specs - HD27V5 Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.855 t
Transport length
4 m
Transport width
1.55 m
Transport height
2.47 m
Bucket capacity
0.08 m³
Bucket capacity min.
0.08 m³
Bucket width
0.5 m
Track width
250 mm
Max. Reach horizontal
4.22 m
Dredging depth
2.44 m
Tear-out force
21 kN
Model series
V
Engine manuf.
Kubota
Engine type
D1305-E4B
Engine power
17.6 kW
Displacement
1.261 l
Revolutions at max torque
2400 rpm
No. of cylinders
3
Cylinder bore x stroke
78x88 mm

More technical details, like: bucket capacity max., standard tyres, driver protection, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato Imer HD27V5 FAQ

When was the Kato Imer HD27V5 manufactured?

The Kato Imer HD27V5 was first produced in 2023.

How much does the Kato Imer HD27V5 weigh?

The Kato Imer HD27V5 weighs 2.86 tons.

What are the transport dimensions of the Kato Imer HD27V5 mini excavator?

The Kato Imer HD27V5 has a transport length of 4 meters, a transport width of 1.55 meters, and a transport height of 2.47 meters.

What is the track width of the Kato Imer HD27V5 mini excavator's undercarriage?

The Kato Imer HD27V5 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Kato Imer HD27V5 mini excavator?

The Kato Imer HD27V5 mini excavator has a dredging depth of 2.44 meters and a maximum horizontal reach of 4.22 meters.

What is the tear-out force of the Kato Imer HD27V5 mini excavator?

The Kato Imer HD27V5 mini excavator has a tear-out force of 21 kN.

What are the bucket specifications of the Kato Imer HD27V5 mini excavator?

The Kato Imer HD27V5 has a bucket capacity of 0.08 cubic meters, a minimum bucket capacity of 0.08 cubic meters, and a bucket width of 0.5 meters.
