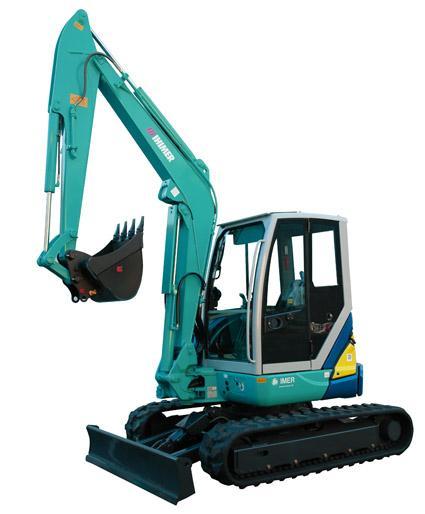

55 VX Kato Imer excavator specs & dimensions (2008 - 2020)

Kato Imer 55 VX is a mini excavator manufactured from 2008 to 2020, with a weight of 5.45 tons. It has a transport length of 5.96 …

Kato Imer 55 VX is a mini excavator manufactured from 2008 to 2020, with a weight of 5.45 tons. It has a transport length of 5.96 meters, a transport width of 2.54 meters, and a transport height of 1.99 meters. The excavator is equipped with a blade.

55 VX

Years of manufacture: 2008—2020

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 55 VX Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.45 t

Transport length: 5.96 m

Transport width: 2.54 m

Transport height: 1.99 m

Driver protection: Kb

Max. Reach horizontal: 6.14 m

Dredging depth: 4.1 m

Model series: VX

Engine manuf.: Yanmar

Engine type: 4TNV88

Engine power: 27.3 kW

Revolutions at max torque: 2300 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, tear-out force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Kato Imer 55 VX FAQ

When was the Kato Imer 55 VX manufactured?

The Kato Imer 55 VX was manufactured from 2008 to 2020.

How much does the Kato Imer 55 VX weigh?

The Kato Imer 55 VX weighs 5.45 tons.

What are the transport dimensions of the Kato Imer 55 VX mini excavator?

The Kato Imer 55 VX has a transport length of 5.96 meters, a transport width of 2.54 meters, and a transport height of 1.99 meters.

What are the excavation specifications of the Kato Imer 55 VX?

The Kato Imer 55 VX has a dredging depth of 4.1 meters and a maximum horizontal reach of 6.14 meters.

What driver protection features does the Kato Imer 55 VX have?

The Kato Imer 55 VX has a cabin for driver protection.

How much is a Kato Imer 55 VX Mini excavator (2008u20132020) worth?

The residual value of the Kato Imer 55 VX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
