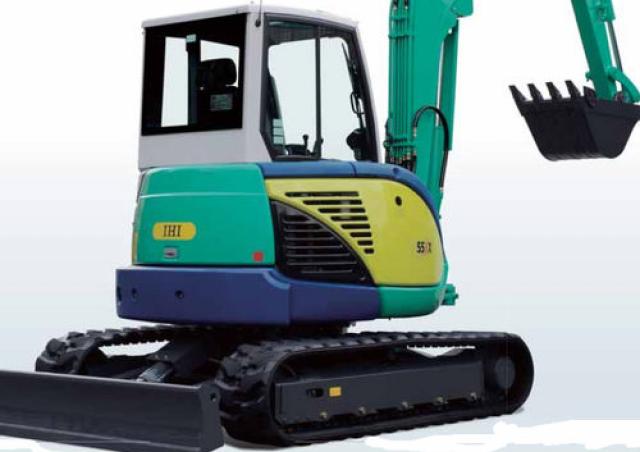

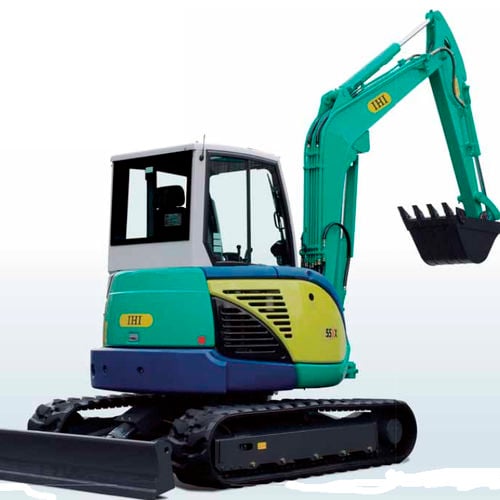

55VX-3 IHI excavator specs & dimensions (2012 - 2016)

IHI 55VX-3 is a Mini Excavator manufactured from 2012 to 2016, with a weight of 5.509 tons. It features a track width of 406 mm, a…

IHI 55VX-3 is a Mini Excavator manufactured from 2012 to 2016, with a weight of 5.509 tons. It features a track width of 406 mm, a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters. The machine has a tear-out force of 36.3 kN and comes equipped with air conditioning, a blade, and rubber tracks.

Mini Excavators IHI 55VX-3

Technical specs - 55VX-3 IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.51 t
Transport length
5 m
Transport width
1 m
Transport height
2 m
Bucket capacity
0.16 m³
Bucket width
0.61 m
Track width
406 mm
Driver protection
Kb
Max. Reach horizontal
6.15 m
Dredging depth
3.78 m
Tear-out force
36.3 kN
Engine manuf.
Yanmar
Engine type
4TNV88
Engine power
27.7 kW

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

IHI 55VX-3 FAQ

When was the IHI 55VX-3 manufactured?

The IHI 55VX-3 was manufactured from 2012 to 2016.

How much does the IHI 55VX-3 mini excavator weigh?

The IHI 55VX-3 mini excavator weighs 5.51 tons.

What are the transport dimensions of the IHI 55VX-3 mini excavator?

The IHI 55VX-3 has a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters.

What is the track width of the IHI 55VX-3 mini excavator's undercarriage?

The IHI 55VX-3 mini excavator has a track width of 406 mm.

What are the excavation performance specifications of the IHI 55VX-3 mini excavator?

The IHI 55VX-3 mini excavator has a dredging depth of 3.78 meters and a maximum horizontal reach of 6.15 meters.

What is the tear-out force of the IHI 55VX-3 mini excavator?

The IHI 55VX-3 mini excavator has a tear-out force of 36.3 kN.

What are the bucket specifications of the IHI 55VX-3 mini excavator?

The IHI 55VX-3 mini excavator has a bucket capacity of 0.16 cubic meters and a bucket width of 0.61 meters.

What operator safety and support features does the IHI 55VX-3 have?

The IHI 55VX-3 has a cabin for driver protection.

How much is a IHI 55VX-3 Mini excavator (2012u20132016) worth?

The residual value of the IHI 55VX-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
