R30Z-9AK Hyundai excavator specs & dimensions (2016 - 2019)

Hyundai R30Z-9AK is a Mini Excavator manufactured from 2016 to 2019, with a weight of 3.05 tons. It features a track width of 300 …

Hyundai R30Z-9AK is a Mini Excavator manufactured from 2016 to 2019, with a weight of 3.05 tons. It features a track width of 300 mm, a transport length of 4.18 meters, a transport width of 1.55 meters, and a transport height of 2.5 meters. The excavator has a tear-out force of 20.1 kN, a dredging depth of 2.5 meters, and a maximum horizontal reach of 4.65 meters. The bucket capacity ranges from 0.07 m³ to 0.07 m³. Special equipment includes a blade and rubber tracks.

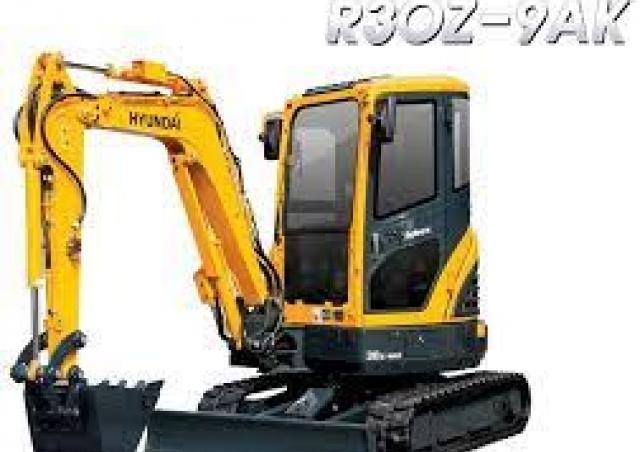

Mini Excavators Hyundai R30Z-9AK

Visit Hyundai live at

Technical specs - R30Z-9AK Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.05 t
Transport length
4.18 m
Transport width
1.55 m
Transport height
2.5 m
Bucket capacity min.
0.07 m³
Bucket capacity max.
0.07 m³
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.65 m
Dredging depth
2.5 m
Tear-out force
20.1 kN
Model series
9AK
Engine manuf.
Kubota
Engine type
D1305
Engine power
18.5 kW
Displacement
1.261 l
Revolutions at max torque
1600 rpm
Max. torque
81 Nm
Cylinder bore x stroke
78x88 mm
Emission level
IIIA

More technical details, like: bucket capacity, bucket width, standard tyres, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Hyundai R30Z-9AK FAQ

When was the Hyundai R30Z-9AK manufactured?

The Hyundai R30Z-9AK was manufactured from 2016 to 2019.

How much does the Hyundai R30Z-9AK mini excavator weigh?

The Hyundai R30Z-9AK mini excavator weighs 3.05 tons.

What are the transport dimensions of the Hyundai R30Z-9AK mini excavator?

The Hyundai R30Z-9AK has a transport length of 4.18 meters, a transport width of 1.55 meters, and a transport height of 2.5 meters.

What is the track width of the Hyundai R30Z-9AK mini excavator's undercarriage?

The Hyundai R30Z-9AK mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Hyundai R30Z-9AK mini excavator?

The Hyundai R30Z-9AK has a dredging depth of 2.5 meters and a maximum horizontal reach of 4.65 meters.

What is the tear-out force of the Hyundai R30Z-9AK mini excavator?

The Hyundai R30Z-9AK mini excavator has a tear-out force of 20.1 kN.

What is the bucket capacity of the Hyundai R30Z-9AK mini excavator?

The Hyundai R30Z-9AK mini excavator has a bucket capacity of 0.07 cubic meters.

What driver protection feature does the Hyundai R30Z-9AK have?

The Hyundai R30Z-9AK has driver protection in the form of a cabin.

How much is a Hyundai R30Z-9AK Mini excavator (2016u20132019) worth?

The residual value of the Hyundai R30Z-9AK depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
