R 35Z-7 Hyundai excavator specs & dimensions (2007 - 2026)

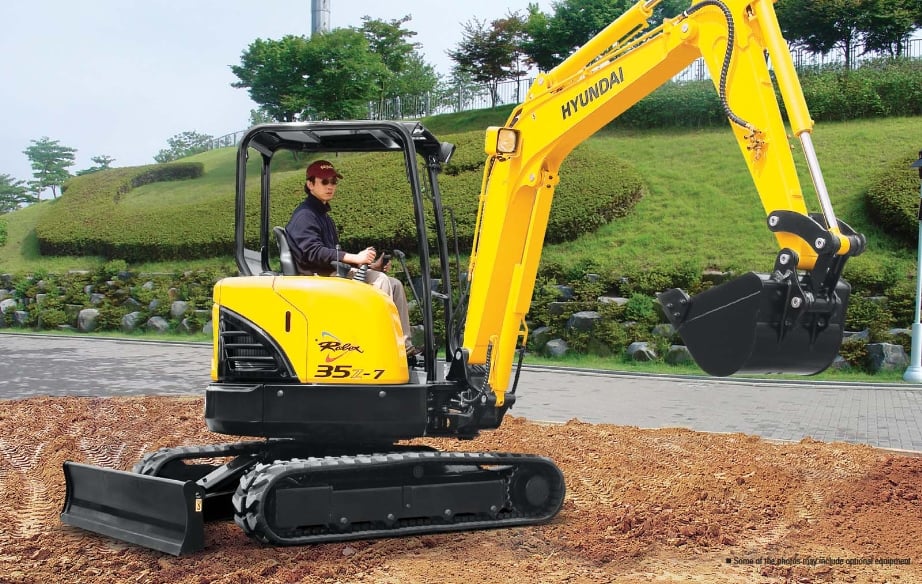

Hyundai R 35Z-7 is a mini excavator manufactured since 2007, with a weight of 3 tons. It features a track width of 300 mm, a trans…

Hyundai R 35Z-7 is a mini excavator manufactured since 2007, with a weight of 3 tons. It features a track width of 300 mm, a transport length of 4 meters, a transport width of 1 meter, and a transport height of 2 meters. The machine has a tear-out force of 31 kN and comes equipped with air conditioning, a blade, rubber tracks, and track adjustment.

Visit Hyundai live at

R 35Z-7

Years of manufacture: 2007—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - R 35Z-7 Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3 t

Transport length: 4 m

Transport width: 1 m

Transport height: 2 m

Bucket width: 0.58 m

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 5.36 m

Dredging depth: 3.15 m

Tear-out force: 31 kN

Engine manuf.: Yanmar

Engine type: 3TNV88

Engine power: 20.3 kW

Displacement: 1.642 l

Revolutions at max torque: 1200 rpm

Cylinder bore x stroke: 88 x 90 mm

Emission level: Tier II

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

R 35Z-7 Hyundai Specification for North America (EN)

Hyundai R 35Z-7 FAQ

When was the Hyundai R 35Z-7 manufactured?

The Hyundai R 35Z-7 was first produced in 2007.

How much does the Hyundai R 35Z-7 weigh?

The Hyundai R 35Z-7 weighs 3 tons.

What are the transport dimensions of the Hyundai R 35Z-7 mini excavator?

The Hyundai R 35Z-7 has a transport length of 4 meters, a transport width of 1 meter, and a transport height of 2 meters.

What is the track width of the Hyundai R 35Z-7 mini excavator?

The Hyundai R 35Z-7 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Hyundai R 35Z-7 mini excavator?

The Hyundai R 35Z-7 mini excavator has a dredging depth of 3.15 meters and a maximum horizontal reach of 5.36 meters.

What is the tear-out force of the Hyundai R 35Z-7 mini excavator?

The Hyundai R 35Z-7 mini excavator has a tear-out force of 31 kN.

What is the bucket width of the Hyundai R 35Z-7 mini excavator?

The Hyundai R 35Z-7 mini excavator has a bucket width of 0.58 meters.

What operator safety features does the Hyundai R 35Z-7 have?

The Hyundai R 35Z-7 has a cabin for driver protection.

How much is a Hyundai R 35Z-7 Mini excavator (2007u20132025) worth?

The residual value of the Hyundai R 35Z-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hyundai R 35Z-7 overview

Hyundai R 35Z-7 features overview

Powerful Dozer Blade
Large blade improves work efficiency and equipment durability. 1,740mm x 370mm (5'9" x 1‘3 ')

Engine / Driveline and transmission

Long Life Hydraulic Filter
High-performance filters are used to extend the filter change interval.
Hydraulic level
Simply check the level of oil throughout the entire oil gauge on the hydraulic tank side.

Tyres / Tracks

Reinforced Rubber Track
Adopt reinforced rubber track that has outstanding endurance against wear.

Dimensions and weight

Shoe Width		Rubber shoe 300 mm (12"")"
Operating Weight	Cabin	3	650 Kg (8	050lb)"
Canopy	3	500 Kg (7	720lb)"
Ground Pressure	Cabin	0.34 kg / cm2 (4.83psi)
Canopy	0.32 kg / cm2 (4.55psi)

Load point height m(ft)		Load radius	At max. reach
1.0 m(3.3 ft)	2.0 m(6.6 ft)	3.0 m(9.8 ft)	4.0 m(13.1 ft)	Capacity	Reach
										m (ft)
4.0 m	kg									600	510	3.94
13.1 ft	lb									1320	1120	(12.9)
3.0 m	kg							560	470	420	360	4.74
9.8 ft	lb							1230	1040	930	790	(15.6)
2.0 m	kg					890	750	540	460	360	300	5.11
6.6 ft	lb					1960	1650	1190	1010	790	660	(16.8)
1.0 m	kg					830	690	520	440	340	290	5.18
3.3 ft	lb					1830	1520	1150	970	750	640	(17.0)
Ground	kg			1570	1260	790	650	500	420	360	300	4.98
Line	lb			3460	2780	1740	1430	1100	930	790	660	(16.3)
-1.0 m	kg	*2100	*2100	1590	1270	780	650	500	420	440	370	4.45
-3.3 ft	lb	*4630	*4630	3510	2800	1720	1430	1100	930	970	820	(14.6)
-2.0 m	kg			1630	1310	810	670
-6.6 ft	lb			3590	2890	1790	1480

	ITEM	R35Z-7
(A)	Overall width of upper structure	1	500mm (4'11"")"
(B)	Overall width of cab	1	050mm (3'5"")"
(C)	Overall height of cab	2	500mm (8'2"")"
(D)	Tail swing radius	870mm (2'10"")"
(E)	Overall width	1	740mm (5'9"")"
(F)	Clearance under counterweight	540mm (1'9"")"
(G)	Ground Clearance	290mm (11"")"
(H)	Tumbler distance	1	700mm (5'7"")"
(I)	Track length	2	130mm (6'12"")"
(J)	Track gauge	1	440mm (4'9"")"
(K)	Track shoe width	300mm (12"")"
(L)	Overall length	4	790mm (15'9"")"

Other features

Mechanical Suspension Seat
An attractive and adjustable seat, based on a human design design, offers more comfort, safety and durability.
Smooth Travel Pedals and Foot Rests
The travel pedals and levers are equipped with ergonomically designed foot rests. They enable the operator to work easily and quickly.

The conveniently located cup holders add to the comfort of the cab.
Easy to Open Front Window
The front sliding folding window can be opened easily and safely kept in an open position to improve working condition. (cabin type)

Safety

Wide Canopy with Excellent Visibility
Wide enough roof and high quality suspension seat by absorbing digging shock prevent operator fatigue.
Rectangular Tube Canopy
The canopy protects the operator from falling objects and ensures operator safety. (ROPS, FOPS, TOPS STD.)

Tables

(refilling)	liter	US gal	UK gal
Fuel tank	42	11.1	9.2
Engine coolant	5	1.32	1.1
Engine oil	6.7	1.77	1.5
Hydraulic tank	46	12.2	10.1

No. of cylinder - bore x rod x stroke
Boom	85 x 45 x 540 mm
Arm	80 x 45 x 585 mm
Bucket	70 x 45 x 510 mm
Boom swing	80 x 45 x 400 mm
Dozer blade	95 x 50 x 152 mm

Model	Yanmar 3TNV88
Type		4 Cycle. In line	water cooled Diesel"
Rated flywheel horse power
SAE	J1995 (gross)	27.3 HP ( 20.3kW) at 2	200rpm"
J1349 (net)	26.5 HP ( 19.8kW) at 2	200rpm"
DIN	627 1/1 (gross)	27.7 HP ( 20.3kW) at 2	200rpm"
627 1/1 (net)	26.9 HP ( 19.8kW) at 2	200rpm"
Max. torque	10.8kgf.m at 1	200 rpm"
Bore x stroke	Ø88mm x 90mm
Piston displacement	1	642cc"
Batteries	12V - 80AH
Starting motor	12V - 2.3kW
Alternator	12V - 55A

Type
Pilot control	Two joysticks with one safety lever (LH): Swing and arm	(RH): Boom and bucket with horn (ISO)"

Engine throttle	Mechanical	cable type"
External Lamps	1 work Lamp at RH side of boom - Guarded floodlight at RH side of - machine

Bucket	3	200 kgf"
31	360 kN"
7	050 lbf"
	1	990 kgf"
Arm	19	500 kN"
4	390 lbf"

Capacity	Width	Weight	2	500mm Boom"
SAE heaped	CECE heaped	Without side cutters	With side cutters	1	300mm Arm"
*0.11m3 (0.14yd3 ),0.09m3 (0.11yd3 ),"550mm (21.7"")	580mm (22.8"")",80kg (176lb),

Swing motor	Axial piston motor
Swing reduction	Planetary gear reduction
Swing circuit lubrication	Grease - bathed
Swing brake	Multi wet disc
Swing speed	9.5rpm

Main pumps
Type	Two variable displacement piston pumps
Rated flow	2 x 38.5lpm
Sub-pump for pilot circuit	Gear pump
Hydraulic motors
Travel	Two speed axial piston motor with counter balance valve and parking brake
Swing	Axial piston motor with automatic brake
Relief valve setting
Implement circuits	230 Kgf / cm2
Travel circuit	230 Kgf / cm2
Swing circuit	230 Kgf / cm2
Pilot circuit	30 Kgf / cm2
Service valve	Installed

Max. travel speed(high) / (low)	4.5km / 2.5km
Maximum traction force	3.1ton
Maximum gradeability	30O
Parking brake	Multi wet disc

Center frame	X-leg type
Track frame	Pentagonal box type
No. of carrier roller on each side	1
No. of track roller on each side	4

Noise Levels (dynamic value)
LwA	94dB
LpA	75dB

ITEM
	Boom length	2	500mm (8'2"")"
	Arm length	1	300mm (4'3"")"
(A)	Max. digging reach	5	360mm (17'7"")"
(A')	Max. digging reach at ground	5	240mm (17'2"")"
(B)	Max. digging depth	3	150mm (10'4"")"
(C)	Max. vertical wall digging depth	2	190mm (7'2"")"
(D)	Max. digging height	4	830mm (15'10"")"
(E)	Max. dumping height	3	450mm (11'4"")"
(F)	Min. swing radius	2	350mm (7'9"")"
