HX48AZ Hyundai excavator specs & dimensions (2023 - 2026)

Weight: 5.03t – Transport length: 5.493m – Transport width: 2m – Transport height: 2.58m – Bucket capacity: 0.15m³ – Bucket capaci…

Weight: 5.03t – Transport length: 5.493m – Transport width: 2m – Transport height: 2.58m – Bucket capacity: 0.15m³ – Bucket capacity min.: 0.15m³

Check out detailed specifications, information and technical data for Hyundai HX48AZ excavator manufactured between 2023 - 2026. Get more in-depth insight with Hyundai HX48AZ digger specifications. See information, like: Weight: 5.03t – Transport length: 5.493m – Transport width: 2m – Transport height: 2.58m – Bucket capacity: 0.15m³ – Bucket capacity min.: 0.15m³ and more.

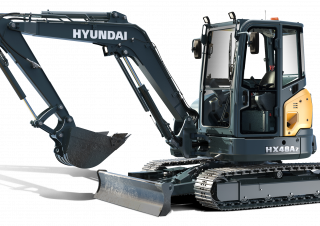

Mini Excavators Hyundai HX48AZ

Visit Hyundai live at

Technical specs - HX48AZ Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.03 t
Transport length
5.493 m
Transport width
2 m
Transport height
2.58 m
Bucket capacity
0.15 m³
Bucket capacity min.
0.15 m³
Bucket capacity max.
0.2 m³
Bucket width
0.49 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.99 m
Dredging depth
3.5 m
Engine manuf.
Yanmar
Engine type
4TNV88C
Engine power
39.6 kW
Displacement
2.19 l
Max. torque
144.9 Nm
No. of cylinders
4
Cylinder bore x stroke
88x90 mm
Emission level
V

More technical details, like: standard tyres, tear-out force, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Hyundai HX48AZ FAQ

When was the Hyundai HX48AZ manufactured?

The Hyundai HX48AZ was first produced in 2023.

How much does the Hyundai HX48AZ mini excavator weigh?

The Hyundai HX48AZ mini excavator weighs 5.03 tons.

What are the transport dimensions of the Hyundai HX48AZ mini excavator?

The Hyundai HX48AZ has a transport length of 5.493 meters, a transport width of 2 meters, and a transport height of 2.58 meters.

What is the track width of the Hyundai HX48AZ mini excavator?

The Hyundai HX48AZ mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Hyundai HX48AZ mini excavator?

The Hyundai HX48AZ mini excavator has a dredging depth of 3.5 meters and a maximum horizontal reach of 5.99 meters.

What are the bucket specifications of the Hyundai HX48AZ mini excavator?

The Hyundai HX48AZ mini excavator has a bucket capacity ranging from 0.15 to 0.2 cubic meters, with a bucket width of 0.49 meters.

What operator safety feature does the Hyundai HX48AZ have?

The Hyundai HX48AZ features a cabin for operator protection.

How much is a Hyundai HX48AZ Mini excavator (2023u20132025) worth?

The residual value of the Hyundai HX48AZ depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
