NX30 Hitachi excavator specs & dimensions (2023 - 2026)

Weight: 2.9t – Transport length: 4.15m – Transport width: 1.5m – Transport height: 2.527m – Bucket capacity: 0.07m³ – Bucket capac…

Weight: 2.9t – Transport length: 4.15m – Transport width: 1.5m – Transport height: 2.527m – Bucket capacity: 0.07m³ – Bucket capacity min.: 0.04m³

Check out detailed specifications, information and technical data for Hitachi NX30 excavator manufactured between 2023 - 2026. Get more in-depth insight with Hitachi NX30 digger specifications. See information, like: Weight: 2.9t – Transport length: 4.15m – Transport width: 1.5m – Transport height: 2.527m – Bucket capacity: 0.07m³ – Bucket capacity min.: 0.04m³ and more.

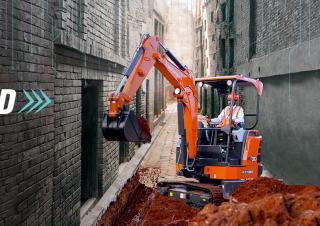

Mini Excavators Hitachi NX30

Visit Hitachi live at

Technical specs - NX30 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.9 t
Transport length
4.15 m
Transport width
1.5 m
Transport height
2.527 m
Bucket capacity
0.07 m³
Bucket capacity min.
0.04 m³
Bucket capacity max.
0.07 m³
Bucket width
0.621 m
Track width
280 mm
Max. Reach horizontal
4.555 m
Dredging depth
2.625 m
Model series
NX
Engine manuf.
Yanmar
Engine type
3TNV88-BSTAH
Engine power
20.2 kW
Displacement
1.642 l
Revolutions at max torque
2200 rpm
Max. torque
106 Nm
No. of cylinders
3

More technical details, like: standard tyres, driver protection, tear-out force, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi NX30 FAQ

When was the Hitachi NX30 manufactured?

The Hitachi NX30 was first produced in 2023.

How much does the Hitachi NX30 mini excavator weigh?

The Hitachi NX30 mini excavator weighs 2.9 tons.

What are the transport dimensions of the Hitachi NX30 mini excavator?

The Hitachi NX30 has a transport length of 4.15 meters, a transport width of 1.5 meters, and a transport height of 2.53 meters.

What is the track width of the Hitachi NX30 mini excavator?

The Hitachi NX30 mini excavator has a track width of 280 mm.

What are the excavation performance specifications of the Hitachi NX30 mini excavator?

The Hitachi NX30 mini excavator has a dredging depth of 2.625 meters and a maximum horizontal reach of 4.555 meters.

What are the specifications of the bucket on the Hitachi NX30 mini excavator?

The Hitachi NX30 mini excavator has a bucket with a capacity of 0.07 cubic meters, a maximum capacity of 0.07 cubic meters, a minimum capacity of 0.04 cubic meters, and a bucket width of 0.621 meters.

How much is a Hitachi NX30 Mini excavator (2023u20132025) worth?

The residual value of the Hitachi NX30 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
