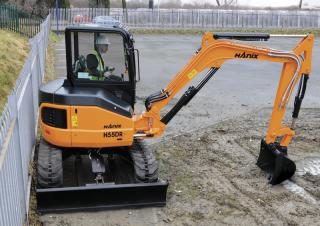

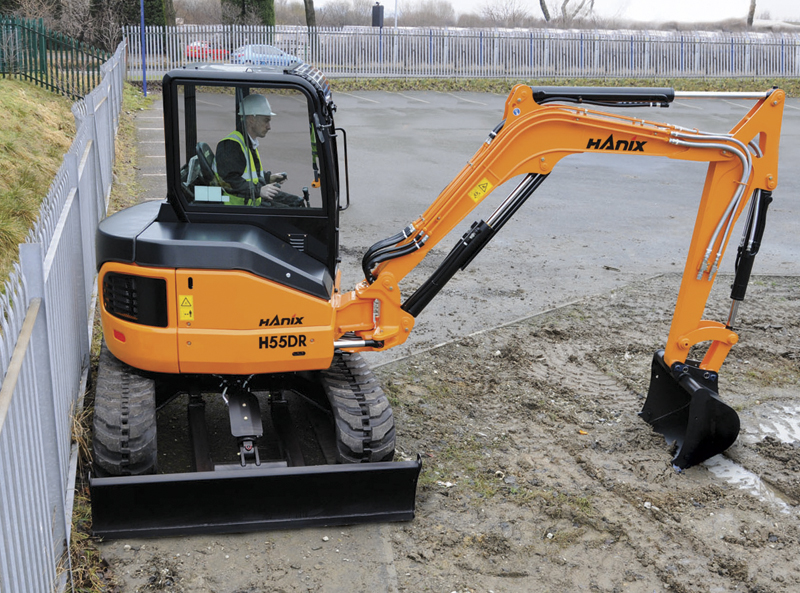

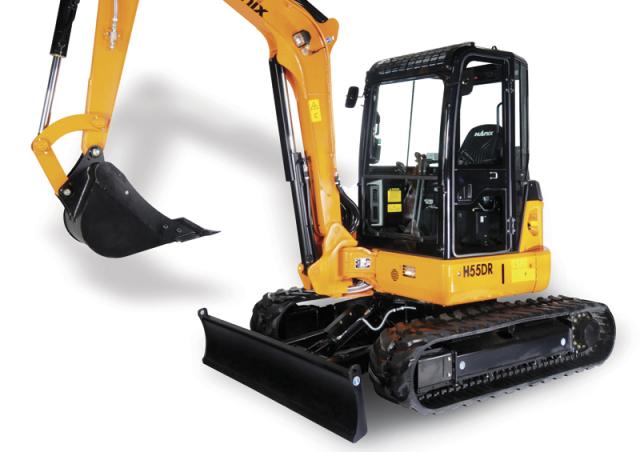

H55DR Long Hanix excavator specs & dimensions (2019 - 2026)

Hanix H55DR Long is a Mini Excavator manufactured since 2019, with a weight of 5.58 t. It features a track width of 400 mm, a tran…

Hanix H55DR Long is a Mini Excavator manufactured since 2019, with a weight of 5.58 t. It features a track width of 400 mm, a transport length of 5.43 m, a transport width of 1.98 m, and a transport height of 2.55 m. The machine has a tear-out force of 42.8 kN, a dredging depth of 4.005 m, and a maximum horizontal reach of 6.215 m. The bucket width is 0.65 m, with a bucket capacity of 0.16 m³. Special equipment includes air conditioning and a blade.

H55DR Long

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - H55DR Long Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.58 t

Transport length: 5.43 m

Transport width: 1.98 m

Transport height: 2.55 m

Bucket capacity: 0.16 m³

Bucket width: 0.65 m

Track width: 400 mm

Driver protection: Kb

Max. Reach horizontal: 6.215 m

Dredging depth: 4.005 m

Tear-out force: 42.8 kN

Model series: H

Engine manuf.: Kubota

Engine type: V2403M-DI

Engine power: 32.3 kW

Displacement: 2.434 l

Revolutions at max torque: 2400 rpm

Max. torque: 151.5 Nm

No. of cylinders: 4

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Hanix H55DR Long FAQ

When was the Hanix H55DR Long manufactured?

The Hanix H55DR Long was first produced in 2019.

How much does the Hanix H55DR Long weigh?

The Hanix H55DR Long weighs 5.58 tons.

What are the transport dimensions of the Hanix H55DR Long mini excavator?

The Hanix H55DR Long has a transport length of 5.43 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Hanix H55DR Long mini excavator?

The Hanix H55DR Long mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Hanix H55DR Long mini excavator?

The Hanix H55DR Long mini excavator has a dredging depth of 4.005 meters and a maximum horizontal reach of 6.215 meters.

What is the tear-out force of the Hanix H55DR Long?

The Hanix H55DR Long has a tear-out force of 42.8 kN.

What are the bucket specifications of the Hanix H55DR Long mini excavator?

The Hanix H55DR Long mini excavator has a bucket capacity of 0.16 cubic meters and a bucket width of 0.65 meters.

What operator safety and support features does the Hanix H55DR Long have?

The Hanix H55DR Long has a cabin for driver protection.

How much is a Hanix H55DR Long Mini excavator (2019u20132025) worth?

The residual value of the Hanix H55DR Long depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hanix H55DR Long overview

Hanix H55DR Long features overview

Safety
The lever lock prevents inadvertent hydraulic operation and starting of the engine. Battery isolator switch. Emergency boom drain valve. Auxiliary flow bushing for beacon. ROPS & FOPS cab. Retractable seat belt. External mirrors. Compact zero tail design helps to reduce contact risk with objects and personnel
Serviceability

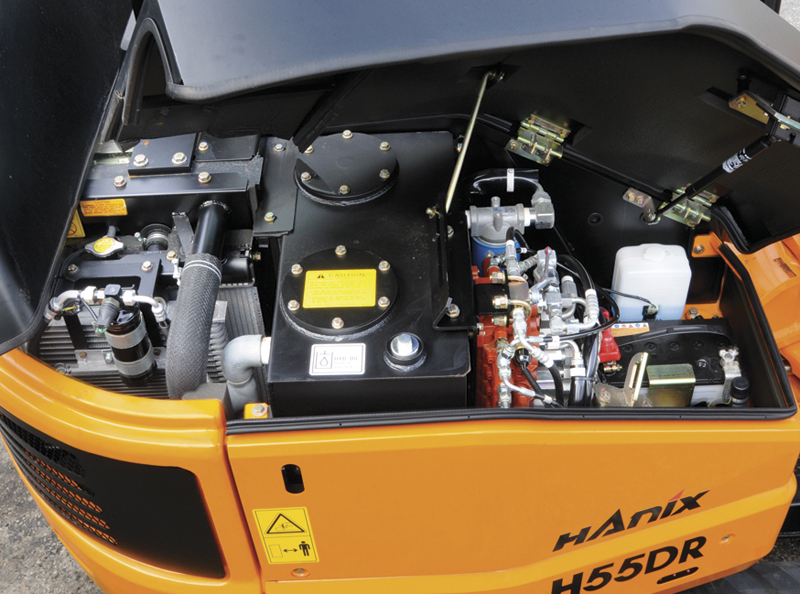

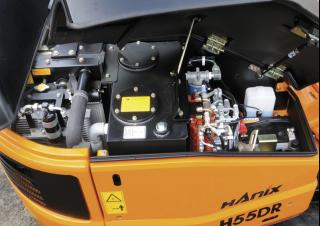

Large engine canopy allows easy access for daily checks. Large easily removable service covers give access to more involved maintenance tasks. 2-piece dozer hoses allow light and cost-effective replacement when damage occurs. Bushing boom bracket and rotary table enable cost effective replacement of wear parts. factory adjusted hydraulic test points facilitate fault diagnosis if necessary. Reliable and efficient technology without requiring electronic diagnostics.
Ease of operation

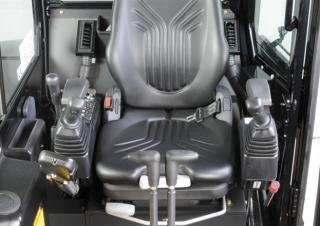

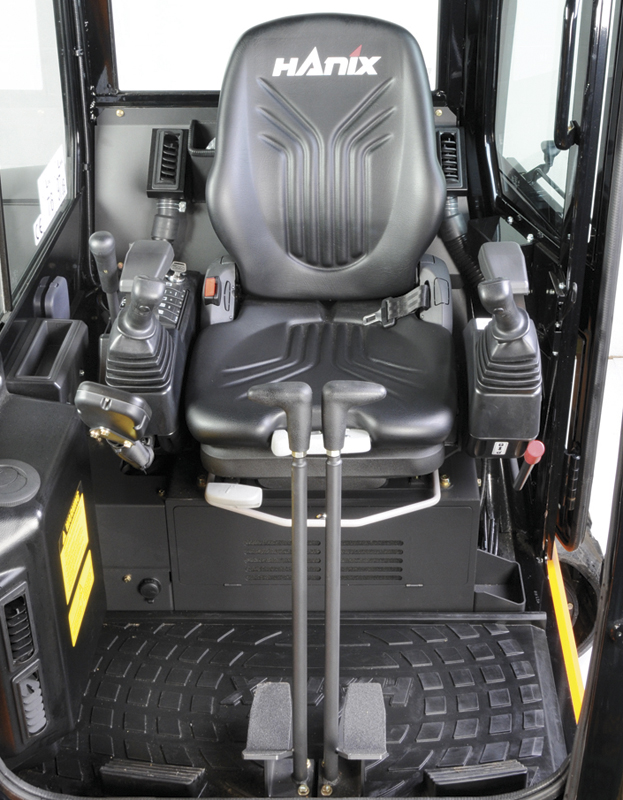

Pilot operated hydraulic controls support smooth and precise operation. Excellent all round visibility. Thumb-controlled boom oscillations and auxiliary hydraulic functions integrated into joysticks. Foot pedals for hands-free travel function. Auto engine idler and shutdown features help economy.

Dimensions and weight

MACHINE SPECIFICATIONS
Machine Weight - Cabin Rubber Tracks Standard (Long)	kg	5350 (5580)
Dimensions (Length / Width / Height)	mm	5430 / 1980 / 2550
Dozer Blade Dimensions (Width / Height)	mm	1980 / 410
Noise Level (LwA / LpA)	dB(A)	97 / 76
Ground Pressure - Cabin Rubber Tracks	kPa / psi	31.8 / 4.61
ENGINE
Make / Model / Cylinders / Displacement (cc)		Kubota / V2403M-DI / 4 / 2434
Rated Power	kW / ps	32.3 / 43.9 @ 2400 rpm
Maximum Torque	Nm	151.5
WORKING RANGE
Maximum Digging Depth Standard (Long)	mm	3705 (4005)
Maximum Digging Height Standard (Long)	mm	5480 (5670)
Maximum Dumping Height Standard (Long)	mm	3735 (3925)
Maximum Vertical Digging Depth Standard (Long)	mm	2890 (3300)
Maximum Digging Radius Standard (Long)	mm	6050 (6335)
Maximum Reach at Ground Standard (Long)	mm	5925 (6215)
Minimum Turning Radius Front Standard (Long)	mm	2550 (2625)
Minimum Turning Radius Swing Standard (Long)	mm	1970 (2050)
Rear Turning Radius Standard Counterweight (Additional Counterweight)	mm	980 (1100)
Boom Swing Angle (L / R)	degrees	L70 / R55
PERFORMANCE
Maximum Digging Power (Bucket / Arm)	kN	42.8 / 22.0
Travel Speed (Low / High)	km/h	2.6 / 4.2
Slew Speed	rpm	9.5
Gradeability	degrees	27
HYDRAULIC SYSTEM
Hydraulic Pump Types		Piston x 1 + Gear x 1
Hydraulic Pump Flows	litres / min	129.6 + 9.6
Auxiliary Hydraulic Flow (PTO)	litres / min	80
Relief Pressures	Mpa	20.6 + 2.4
FLUID CAPACITIES
Fuel Tank	litres	70
Hydraulic Tank	litres	70
Engine Oil	litres	9.5
Cooling System	litres	7.8
Travel Motor Reduction Gearbox	litres	1

Other features

Versatility
The compact zero tail design maximizes performance on space restricted jobsites. Two-speed travel and straight line tracking. 2-way auxiliary hydraulic service for operating a variety of attachments such as breakers and trenches. Spacious comfortable cab with adjustable suspension seat. Equipped with air conditioning as standard for operation in all weather conditions.
