H09D Hanix excavator specs & dimensions (2019 - 2026)

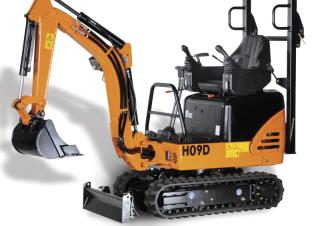

Hanix H09D is a mini excavator manufactured since 2019, with a weight of 0.99 t. It features a track width of 180 mm, a transport …

Hanix H09D is a mini excavator manufactured since 2019, with a weight of 0.99 t. It features a track width of 180 mm, a transport length of 2.945 m, a transport width of 0.95 m, and a transport height of 2.275 m. The machine has a tear-out force of 8.3 kN, a dredging depth of 1.6 m, and a maximum horizontal reach of 3.035 m. The bucket width is 0.33 m, with a maximum bucket capacity of 0.022 m³. It is equipped with a blade as special equipment.

Mini Excavators Hanix H09D
Mini Excavators Hanix H09D
Mini Excavators Hanix H09D
Mini Excavators Hanix H09D
Mini Excavators Hanix H09D
Mini Excavators Hanix H09D
Mini Excavators Hanix H09D
Mini Excavators Hanix H09D

Technical specs - H09D Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.99 t
Transport length
2.945 m

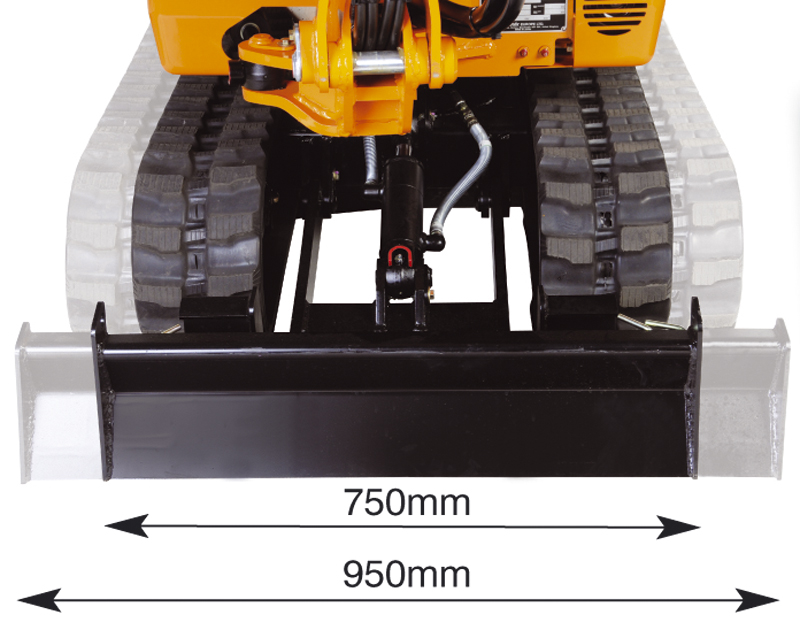

Transport width
0.95 m
Transport height
2.275 m
Bucket capacity max.
0.022 m³
Bucket width
0.33 m
Track width
180 mm
Driver protection
FD
Max. Reach horizontal
3.035 m
Dredging depth
1.6 m
Tear-out force
8.3 kN
Model series
H
Engine manuf.
Kubota
Engine type
Z602
Engine power
7.8 kW
Displacement
0.599 l
Revolutions at max torque
2400 rpm
Max. torque
34 Nm
No. of cylinders
2

More technical details, like: bucket capacity, bucket capacity min., standard tyres, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hanix H09D FAQ

When was the Hanix H09D manufactured?

The Hanix H09D was first produced in 2019.

How much does the Hanix H09D mini excavator weigh?

The Hanix H09D mini excavator weighs 0.99 tons.

What are the transport dimensions of the Hanix H09D mini excavator?

The Hanix H09D has a transport length of 2.95 meters, a transport width of 0.95 meters, and a transport height of 2.28 meters.

What is the track width of the Hanix H09D mini excavator?

The Hanix H09D mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Hanix H09D mini excavator?

The Hanix H09D mini excavator has a dredging depth of 1.6 meters and a maximum horizontal reach of 3.035 meters.

What is the tear-out force of the Hanix H09D mini excavator?

The Hanix H09D mini excavator has a tear-out force of 8.3 kN.

What are the bucket specifications of the Hanix H09D mini excavator?

The Hanix H09D mini excavator has a maximum bucket capacity of 0.02 cubic meters and a bucket width of 0.33 meters.

What operator safety and support features does the Hanix H09D have?

The Hanix H09D is equipped with a canopy for driver protection.

How much is a Hanix H09D Mini excavator (2019u20132025) worth?

The residual value of the Hanix H09D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hanix H09D overview

Hanix H09D features overview

Serviceability
Foldable engine cover allows easy access for daily checks and routine maintenance tasks. 2-piece dozer hoses allow light and cost effective replacement in case of damage. Factory-fit hydraulic check points facilitate fault diagnosis if the need should arise. Reliable and efficient technology without requiring electronic diagnostics. Boom cylinder located above the boom to provide added protection from damage.
Ease of operation Safety

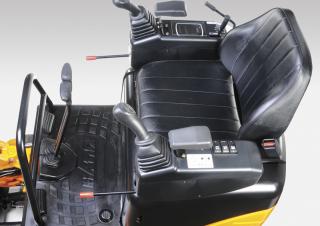

Pilot operated hydraulic controls support smooth and precise operation. High seat position for excellent all-round visibility. Boom swing and auxiliary hydraulic functions integrated into side mounted joysticks. Console mounted display includes fuel gauge. Height adjustable wrist rests. Lever lock prevents inadvertent hydraulic operation and starting of the engine. Battery isolator switch. Emergency boom drain valve. Auxiliary flow socket for beacon. Roll bar (ROPS), Retractable seat belt.

Dimensions and weight

ENGINE
Make / Model / Cylinders / Displacement (cc)Kubota / Z602 / 2 / 599
Rated PowerkW / ps7.8 / 10.6 @ 2400 rpm
Maximum TorqueNm34
WORKING RANGE
Maximum Digging Depthmm1600
Maximum Digging Heightmm2755
Maximum Dumping Heightmm1930
Maximum Vertical Digging Depthmm1400
Maximum Digging Radiusmm3080
Maximum Reach at Groundmm3035
Minimum Turning Radius Frontmm1185
Minimum Turning Radius Swingmm680
Rear Turning Radius (Including ROPS)mm780 (930)
Boom Swing Angle (L / R)degreesL75 / R59
PERFORMANCE
Maximum Digging Power (Bucket / Arm)kN8.3 / 5.8
Travel Speed (Low / High)km/h1.8 / 3.5
Slew Speedrpm8.1
Gradeabilitydegrees30
HYDRAULIC SYSTEM
Hydraulic Pump TypesPiston x 2 + Gear x 1
Hydraulic Pump Flowslitres / min10.8 x 2 + 7.2
Auxiliary Hydraulic Flow (PTO)litres / min21.6
Relief PressuresMpa16.2 x 2 + 3.0
FLUID CAPACITIES
Fuel Tanklitres12.2
Hydraulic Tanklitres10.5
Engine Oillitres2.5
Cooling Systemlitres5
Travel Motor Reduction Gearboxlitres0.33
