H 36 R Hanix excavator specs & dimensions (2003 - 2005)

Model rating
8,00 / 10

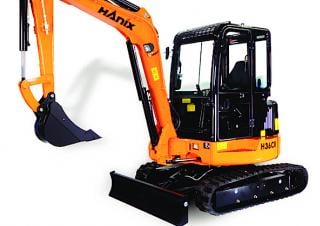

Hanix H 36 R is a mini excavator manufactured from 2003 to 2005, with a weight of 3.48 tons. It features a track width of 300 mm, …

Hanix H 36 R is a mini excavator manufactured from 2003 to 2005, with a weight of 3.48 tons. It features a track width of 300 mm, a transport length of 4.7 meters, a transport width of 1.6 meters, and a transport height of 2.47 meters. The bucket capacity is 0.13 cubic meters, and it comes equipped with a blade and rubber tracks.

Mini Excavators Hanix H 36 R

Technical specs - H 36 R Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.48 t
Transport length
4.7 m
Transport width
1.6 m
Transport height
2.47 m
Bucket capacity
0.13 m³
Track width
300 mm
Driver protection
KbR
Max. Reach horizontal
5.11 m
Dredging depth
3.13 m
Tear-out force
18.7 kN
Model series
H
Engine manuf.
Isuzu
Engine type
3 LD 1
Engine power
21.3 kW

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hanix H 36 R FAQ

When was the Hanix H 36 R manufactured?

The Hanix H 36 R was manufactured from 2003 to 2005.

How much does the Hanix H 36 R weigh?

The Hanix H 36 R weighs 3.48 tons.

What are the transport dimensions of the Hanix H 36 R mini excavator?

The Hanix H 36 R has a transport length of 4.7 meters, a transport width of 1.6 meters, and a transport height of 2.47 meters.

What is the track width of the Hanix H 36 R mini excavator?

The Hanix H 36 R mini excavator has a track width of 300 mm.

What are the key excavation specifications of the Hanix H 36 R mini excavator?

The Hanix H 36 R mini excavator has a dredging depth of 3.13 meters and a maximum horizontal reach of 5.11 meters.

What is the power rating of the Hanix H 36 R mini excavator?

The source data does not provide a power rating for the Hanix H 36 R mini excavator.

What is the bucket capacity of the Hanix H 36 R mini excavator?

The Hanix H 36 R mini excavator has a bucket capacity of 0.13 cubic meters.

What operator safety features does the Hanix H 36 R offer?

The Hanix H 36 R provides operator safety through a cabin equipped with ROPS (Roll-Over Protective Structure).

How much is a Hanix H 36 R Mini excavator (2003u20132005) worth?

The residual value of the Hanix H 36 R depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hanix H 36 R overview

Engine / Driveline and transmission

Low Environmental Impact
Lean fuel engine improves fuel consumption and lowers emissions. Emissions comply with Stage III A (EU)/Interim Tier 4 (EPA) regulations. Engine shaft equipped with high quality sound damping to reduce noise pollution. Corrosion-free service covers help extend machine life.

Hydraulics

Quick & Easy Access
Large service covers allow easy access to maintenance points to reduce downtime. All guarded grease points as standard. Hydraulic system with circuit identifier to facilitate hose replacement. PTO stop valves allow quick change of attachments. Hoses are routed and protected to reduce inadvertent damage.

Tyres / Tracks

Better in Tight Situations
Zero tail swing with long track arms and wide track bed for added stability. A turning radius of less than 2.5 metres. Full vision cab ensures better all-round visibility. PTO stop valves allow quick change of attachments. Two-speed travel and straight line tracking.
Better Performance
Greater reach and stronger breakout force with higher stability. Longer dipper arm as standard. Long track arms and wide track bed for added stability. Change between low and high speed at the push of a button.

Dimensions and weight

Specification
Machine weight (Cab - Rubber Tracks / Cab - Steel Tracks)kg3620 (3700)
Dimension (length / width / height)mm4690 / 1700 / 2480
Dozer blade dimensions (width / height)mm1700 / 335
Bucket (capacity / width) std. ISO7451"m3 /mm0.11 / 590
Noise LevelLwA / LpA94/79
EngineModel–MITSUBISHI S3L2
Displacementcc1318
Rated power–19.9kW / 27.0ps / 2400 rpm
Fuel tank capacitylitres41
Working RangeMax. digging depthmm3125
Max. digging heightmm4660
Max. dumping heightmm3225
Max. vertical digging depthmm2180
Max. digging radiusmm5250
Max. reach at groundmm5100
Min. turning radius frontmm2330
Rear turning radiusmm885
Min. turning radius swingmm1830
Boom swing angle (L / R)degreesL75 / R55
PerformanceMax. digging power Bucket / ArmkN30.1 / 18.7
Travelling speed (low / high)km/h2.5 / 4.5
Slew speedmin-18.0
Hydraulic SystemPump Type–Piston 2 + Gear 1
Oil flow quantitylitres/min42 / 42 / 25.2
PTO Oil flow quantitylitres/min65.0
Main relief pressureMPa20.6 / 20.6 / 17.2
Hyd. tank capacitylitres42
Lifting point Height (m)Lifting point radius (3.0m)Lifting point max radius
Over-frontOver-sideOver-frontOver-sidem
Blade DownBlade UpBlade DownBlade Up
2.06176176175363703504.3
0.011356145746533423234.2
-1.011136055657334153913.8
