603 Gehl excavator specs & dimensions (2004 - 2026)

Gehl 603 is a mini excavator manufactured since 2004, with a weight of 5 tons. It has a transport length of 5 meters, a transport …

Gehl 603 is a mini excavator manufactured since 2004, with a weight of 5 tons. It has a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters. The bucket width is 0.838 meters. Special equipment includes air conditioning, a blade, and rubber tracks.

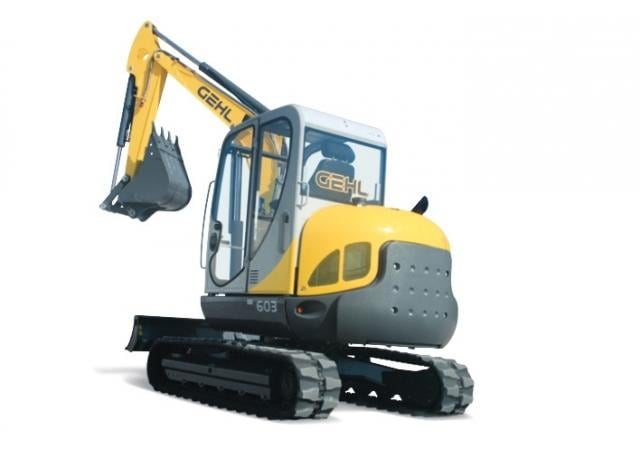

Mini Excavators Gehl 603
Mini Excavators Gehl 603
Mini Excavators Gehl 603
Mini Excavators Gehl 603

Technical specs - 603 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5 t
Transport length
5 m
Transport width
1 m
Transport height
2 m
Bucket width
0.838 m
Max. Reach horizontal
6.21 m
Dredging depth
4.14 m
Engine manuf.
Yanmar
Engine type
4TNV98-VNS
Engine power
51.1 kW
Displacement
3.318 l
Revolutions at max torque
2100 rpm
No. of cylinders
4
Emission level
Tier II

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, tear-out force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Gehl 603 FAQ

When was the Gehl 603 manufactured?

The Gehl 603 was first produced in 2004.

How much does the Gehl 603 mini excavator weigh?

The Gehl 603 mini excavator weighs 5 tons.

What are the transport dimensions of the Gehl 603 mini excavator?

The Gehl 603 mini excavator has a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2 meters.

What are the excavation performance specifications of the Gehl 603 mini excavator?

The Gehl 603 mini excavator has a dredging depth of 4.14 meters and a maximum horizontal reach of 6.21 meters.

What is the bucket width of the Gehl 603 mini excavator?

The bucket width of the Gehl 603 mini excavator is 0.838 meters.

How much is a Gehl 603 Mini excavator (2004u20132025) worth?

The residual value of the Gehl 603 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Gehl 603 overview

Dimensions and weight

MakeYANMAR
Model4TNV98-VNS EPA TIER II"
Type4-cyl. water-cooled diesel
Displacement (cc)202 cu. in. (3318)
Power (kW) - Gross / Net @ rpm69 hp (51.1) / 57 hp (42.5) @ 2100 rpm
Battery (Ah)12-V (88)
Fuel Tank (L)21.9 gal (83)
HYDRAULIC SYSTEM
Pumpstwo variable capacity + two gear pumps
Flow Rate (L/min)2@ 16.9 gpm (64.1) + 12.7 gpm (48) + 2.7 gpm (10.3)
Working Pressure (bar)3553 psi (245)
Swing System Pressure (bar)3118 psi (215)
Oil Coolerstandard
Hydraulic Tank (L)21.1 gal (80)
UNDERCARRIAGE AND SLEWING SYSTEM
Travel Speed - dual (km/h)1.73 mph (2.8) 2.92 mph (4.7)"
Gradability30° = 58%
Rubber Track Width (mm) (A)15.7” (400)
No. of Track Rollers5 on each side
Tracks Tensionhydraulic
Undercarriage Length (mm) (C)8’2” (2500)
Sprocket Center (mm)6’7” (2000)
Ground Clearance (mm)11.4” (290)
Ground Pressure - average (kg/cm2 )4.7 psi (0.33)
Slew Speed9 rpm
GENERAL SPECIFICATIONS
Operating Weight (kg)12566 lbs (5700)"
Dimensions (mm)
Height / Width (D/E)8’5” (2570) / 6’6” (1990)
Transport Length (F)19’ (5800)
Arm Length (mm)5’6” (1685)
w/long arm - optional6’6” (1985)
Max. Digging Depth (mm) (G)12’7” (3845)
w/long arm (G*)13’7” (4140)
Max. Digging Height (mm) (H)18’7” (5660)
w/long arm (H*)19’2” (5850)
Max. Vertical Digging Depth (mm) (I)9’4” (2855)
w/long arm (I*)10’3” (3135)
Max. Dump Height (mm) (J)12’2” (3720)
w/long arm (J*)13’1” (3995)
Max. Digging Radius (mm) (K)19’9” (6030)
w/long arm (K*)20’4” (6210)
Bucket Dig Force (kN)8296 lbf (39.7)
Arm Force (kN)6317 lbf (28.1)
Min. Tail Swing Radius (mm) (L)3’3” (990)
Min. Front Swing Radius (mm) (M)7’ (2140)
Swing Angle - left / right (N/O)75° / 51°
DOZER BLADE
Dimensions - Width / Height (mm)6’6” (1990) / 16.7” (425)
Max. Lift - Above / Below Ground (mm) (Q/R)15.4” (390) / 15.7” (400)
GENERAL PURPOSE BUCKET OPTIONS
Width (mm) / Capacity (L)12” (305) / 2.5 cu.ft. (71)
16” (406) / 3.3 cu.ft. (93)
20” (508) / 3.7 cu.ft. (105)
26” (660) / 6.4 cu.ft. (181)
33” (838) / 8.8 cu.ft. (250)
SOUND LEVELS
Power / Pressure Level101 dB(A) / 78 dB(A)

Tables

Pounds (kg)Pounds (kg)Pounds (kg)Pounds (kg)Pounds (kg)
A BCH
13'1"""2888 *22492745 *2546
(4.0 m)(1310)(1020)(1245)(1155)
9'2"""2866 *17752789 *2524
(3.0 m)(1300)(805)(1265)(1145)
6'7"""2910 *15652932 *17093285 *24254156 *3748
(2.0 m)(1320)(710)(1330)(775)(1490)(1100)(1885)(1700)
3'3"""2998 *14883164 *16533913 *22825765 *3417
(1.0 m)(1360)(675)(1435)(750)(1775)(1035)(2615)(1550)
03109 *15213296 *16094343 *21836548 *3241
(0 m)(1410)(690)(1495)(730)(1970)(990)(2970)(1470)
-3'3"""3230 *16764332 *21386415 *319711045 *6162
(-1.0 m)(1465)(760)(1965)(970)(2910)(1450)(5010)(2795)
-6'7"""3296 *21275401 *32528830 *6294
(-2.0 m)(1495)(965)(2450)(1475)(4005)(2855)
