353 Gehl excavator specs & dimensions (2004 - 2026)

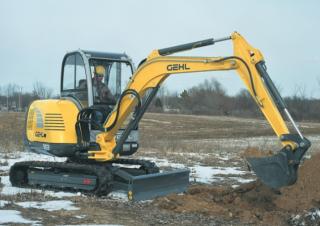

Gehl 353 is a mini excavator manufactured since 2004, with a weight of 3 tons and a transport width of 1 meter. It has a maximum h…

Gehl 353 is a mini excavator manufactured since 2004, with a weight of 3 tons and a transport width of 1 meter. It has a maximum horizontal reach of 5.546 meters and a bucket capacity of 0.108 cubic meters. The excavator is equipped with a blade and rubber tracks.

Mini Excavators Gehl 353

Technical specs - 353 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3 t
Transport width
1 m
Bucket capacity
0.108 m³
Bucket width
0.61 m
Max. Reach horizontal
5.546 m
Dredging depth
3.53 m
Engine manuf.
Yanmar
Engine type
4TNV88-WNS
Engine power
23.7 kW
Displacement
2.2 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
Tier II

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, tear-out force, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Gehl 353 FAQ

When was the Gehl 353 manufactured?

The Gehl 353 was first produced in 2004.

How much does the Gehl 353 mini excavator weigh?

The Gehl 353 mini excavator weighs 3 tons.

What is the transport width of the Gehl 353 mini excavator?

The transport width of the Gehl 353 mini excavator is 1 meter.

What are the excavation performance specifications of the Gehl 353 mini excavator?

The Gehl 353 mini excavator has a dredging depth of 3.53 meters and a maximum horizontal reach of 5.546 meters.

What are the bucket specifications of the Gehl 353 mini excavator?

The Gehl 353 mini excavator has a bucket capacity of 0.108 cubic meters and a bucket width of 0.61 meters.

How much is a Gehl 353 Mini excavator (2004u20132025) worth?

The residual value of the Gehl 353 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Gehl 353 overview

Dimensions and weight

ENGINE MakeYANMAR
Model4TNV88-WNS EPA TIER II"
Type4-cyl. water-cooled diesel
Displacement (cc)134 cid (2200)
Net Power (kW) @ rpm32 hp (23.7) @ 2000 rpm
Battery (Ah)12-V (88)
Fuel Tank (L)13.7 gal (52)
HYDRAULIC SYSTEM
Pumpstwo variable capacity + one gear pump
Flow Rate (L/min)2@ 11 gpm (41.8) + 6.2 gpm (23.6)
Working Pressure (bar)3481 psi (240) all pumps
Swing System Pressure (bar)2900 psi (200)
Oil Coolerstandard
Hydraulic Tank (L)13.2 gal (50)
UNDERCARRIAGE AND SLEWING SYSTEM
Travel Speed - dual (km/h)1.5 mph (2.4) 3.0 mph (4.8)"
Gradability30° = 58%
Rubber Track Width (mm)(A)12” (305)
No. of Track Rollers4 on each side
Tracks Tensionhydraulic
Sprocket Center(C)5’3” (1600)
Ground Clearance (mm)11” (279)
Ground Pressure - average (kg/cm2 )4.7 psi (0.33)
Slew Speed10 rpm
GENERAL SPECIFICATIONS
Operating Weight (kg)
w/cab7715 lbs (3500)
w/canopy7530 lbs (3416)
Dimensions (mm) Height / Width / Length(D/E/F)7’10.75” (2407) / 5’3.75” (1619) / 13’2.5” (4026)
Max. Digging Depth (mm)(G)10’7” (3226)
w/long arm - optional(G*)11’7” (3530)
Max. Digging Height (mm)(H)16’1.25” (4909)
w/long arm(H*)16’8.75” (5100)
Max. Vertical Wall Dig Depth (mm)(I)7’3.5” (2223)
w/long arm(I*)8’2” (2500)
Max. Dump Height (mm)(J)11’10.5” (3620)
w/long arm(J*)12’6” (3810)
Max. Digging Radius (mm)(K)17’3.5” (5271)
w/long arm(K*)18’2” (5546)
Bucket Dig Force (kN)6569 lbf (29.2)
Min. Tail Swing Radius (mm)(L)4’7.125” (1400)
Min. Front Swing Radius (mm)(M)4’9” (1448)
Swing Angle - left/right(N/O)80° / 45°
DOZER BLADE
Dimensions (mm)
Width63.8” (1621)
Height14.6” (371)
Max. Lift (mm) Above / Below Ground
(Q/R)16.1” (409) / 19.3” (490)
BUCKET - STANDARD
Width (mm)24” (610)
Capacity (L)3.8 cu.ft. (108)
SOUND LEVELS
Power / Pressure Level94 dB(A) / 78 dB(A)

Tables

Pounds (kg)Pounds (kg)Pounds (kg)Pounds (kg)Pounds (kg)
A BCH
9'10"""1764 *8821642 *1135
(3.0 m)(800)(400)(745)(515)
6'7"""1852 *7171918 *10582447 *1819
(2.0 m)(840)(325)(870)(480)(1110)(825)
3'3"""1962 *6391984 *2425 *9923957 *1620
(1.0 m)(890)(290)(900)(1100)(450)(1795)(735)
02105 *6612105 *2866 *9374696 *1477
(0 m)(955)(300)(955)(1300)(425)(2130)(670)
-3'3"""2304 *7502888 *9264630*14669259 *3770
(-1.0 m)(1045)(340)(1310)(420)(2100)(665)(4200)(1710)
-6'7"""2535 *10583748*15657275 *3869
(-2.0 m)(1150)(480)(1700)(710)(3300)(1755)
