FR60E Foton Lovol excavator specs & dimensions (2017 - 2026)

Foton Lovol FR60E is a mini excavator manufactured since 2017, with a weight of 5.73 tons. It features a track width of 400 mm, a …

Foton Lovol FR60E is a mini excavator manufactured since 2017, with a weight of 5.73 tons. It features a track width of 400 mm, a transport length of 6.089 meters, a transport width of 1.89 meters, and a transport height of 2.657 meters. The machine has a tear-out force of 44.5 kN, a dredging depth of 3.925 meters, and a maximum horizontal reach of 6.11 meters. It is equipped with a bucket capacity of 0.18 cubic meters and includes special equipment such as a blade.

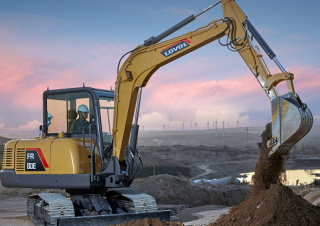

Mini Excavators Foton Lovol FR60E
Mini Excavators Foton Lovol FR60E
Mini Excavators Foton Lovol FR60E
Mini Excavators Foton Lovol FR60E

Technical specs - FR60E Foton Lovol

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.73 t
Transport length
6.089 m
Transport width
1.89 m
Transport height
2.657 m
Bucket capacity
0.18 m³
Track width
400 mm
Max. Reach horizontal
6.11 m
Dredging depth
3.925 m
Tear-out force
44.5 kN
Model series
FR
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
36.2 kW
Displacement
3.054 l
Revolutions at max torque
1000 rpm
Max. torque
218 Nm
No. of cylinders
4
Cylinder bore x stroke
94x110 mm
Emission level
EPA Tier2

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Foton Lovol FR60E FAQ

When was the Foton Lovol FR60E manufactured?

The Foton Lovol FR60E was first produced in 2017.

How much does the Foton Lovol FR60E weigh?

The Foton Lovol FR60E weighs 5.73 tons.

What are the transport dimensions of the Foton Lovol FR60E mini excavator?

The Foton Lovol FR60E has a transport length of 6.09 meters, a transport width of 1.89 meters, and a transport height of 2.66 meters.

What is the track width of the Foton Lovol FR60E mini excavator?

The Foton Lovol FR60E mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Foton Lovol FR60E mini excavator?

The Foton Lovol FR60E mini excavator has a dredging depth of 3.925 meters and a maximum horizontal reach of 6.11 meters.

What is the tear-out force of the Foton Lovol FR60E mini excavator?

The Foton Lovol FR60E mini excavator has a tear-out force of 44.5 kN.

What is the bucket capacity of the Foton Lovol FR60E mini excavator?

The Foton Lovol FR60E mini excavator has a bucket capacity of 0.18 cubic meters.

How much is a Foton Lovol FR60E Mini excavator (2017u20132025) worth?

The residual value of the Foton Lovol FR60E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
