E 20 SR Fiat Kobelco excavator specs & dimensions (2003 - 2005)

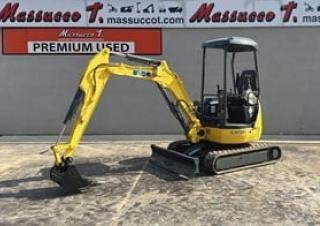

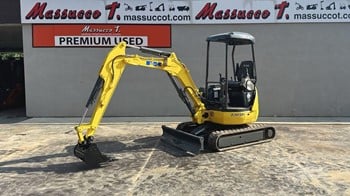

Fiat Kobelco E 20 SR is a mini excavator manufactured from 2003 to 2005, with a weight of 1.98 tons. It features a track width of …

Fiat Kobelco E 20 SR is a mini excavator manufactured from 2003 to 2005, with a weight of 1.98 tons. It features a track width of 250 mm and a transport width of 1.45 meters. The bucket capacity ranges from a minimum of 0.035 m³ to a maximum of 0.088 m³. This model is equipped with a blade and rubber tracks.

Mini Excavators Fiat Kobelco E 20 SR

Technical specs - E 20 SR Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.98 t
Transport width
1.45 m
Bucket capacity min.
0.035 m³
Bucket capacity max.
0.088 m³
Track width
250 mm
Driver protection
FD
Engine manuf.
Yanmar
Engine type
k.A.
Engine power
11 kW

More technical details, like: transport length, transport height, bucket capacity, bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: transport length, transport height, bucket capacity, bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat Kobelco E 20 SR FAQ

When was the Fiat Kobelco E 20 SR manufactured?

The Fiat Kobelco E 20 SR was manufactured from 2003 to 2005.

How much does the Fiat Kobelco E 20 SR weigh?

The Fiat Kobelco E 20 SR weighs 1.98 tons.

What is the transport width of the Fiat Kobelco E 20 SR mini excavator?

The transport width of the Fiat Kobelco E 20 SR mini excavator is 1.45 meters.

What is the track width of the undercarriage on the Fiat Kobelco E 20 SR mini excavator?

The Fiat Kobelco E 20 SR mini excavator has a track width of 250 mm.

What are the bucket capacity specifications of the Fiat Kobelco E 20 SR mini excavator?

The Fiat Kobelco E 20 SR mini excavator has a bucket capacity ranging from 0.04 to 0.09 cubic meters.

What operator safety and support features does the Fiat Kobelco E 20 SR have?

The Fiat Kobelco E 20 SR is equipped with a canopy for driver protection.

How much is a Fiat Kobelco E 20 SR Mini excavator (2003u20132005) worth?

The residual value of the Fiat Kobelco E 20 SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
