ES 57 ZT Eurocomach excavator specs & dimensions (2012 - 2019)

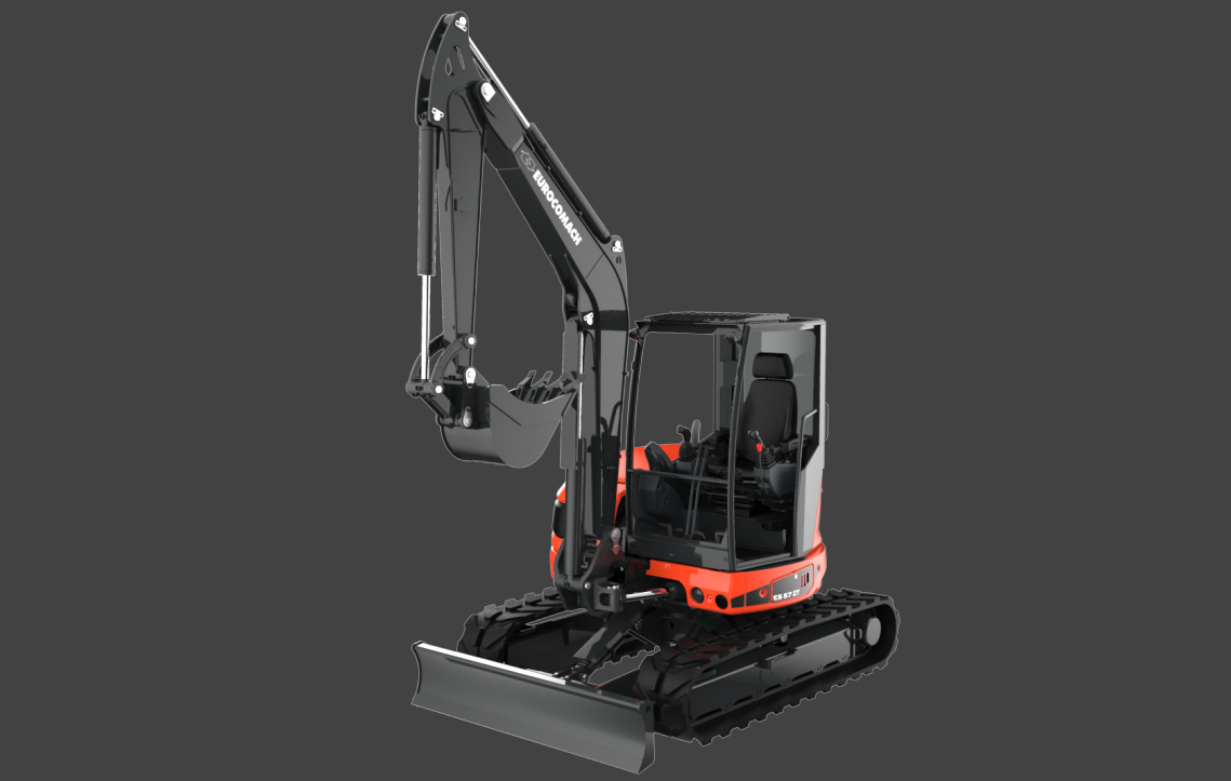

Eurocomach ES 57 ZT is a mini excavator manufactured from 2012 to 2019. It has a weight of 5.5 tons and a track width of 400 mm. T…

Eurocomach ES 57 ZT is a mini excavator manufactured from 2012 to 2019. It has a weight of 5.5 tons and a track width of 400 mm. The transport dimensions are 5.255 meters in length, 1.98 meters in width, and 2.56 meters in height. The machine features a tear-out force of 45 kN, a dredging depth of 3.85 meters, and a maximum horizontal reach of 6.19 meters. Special equipment includes air conditioning, a blade, and rubber tracks.

Mini Excavators Eurocomach ES 57 ZT
Mini Excavators Eurocomach ES 57 ZT
Mini Excavators Eurocomach ES 57 ZT
Mini Excavators Eurocomach ES 57 ZT

Technical specs - ES 57 ZT Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.5 t
Transport length
5.255 m
Transport width
1.98 m
Transport height
2.56 m
Track width
400 mm
Driver protection
KbR
Max. Reach horizontal
6.19 m
Dredging depth
3.85 m
Tear-out force
45 kN
Model series
MME
Engine manuf.
Kubota
Engine type
V2607DI
Engine power
33.8 kW
Displacement
2.615 l
Revolutions at max torque
2200 rpm
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach ES 57 ZT FAQ

When was the Eurocomach ES 57 ZT manufactured?

The Eurocomach ES 57 ZT was manufactured from 2012 to 2019.

How much does the Eurocomach ES 57 ZT weigh?

The Eurocomach ES 57 ZT weighs 5.5 tons.

What are the transport dimensions of the Eurocomach ES 57 ZT mini excavator?

The Eurocomach ES 57 ZT has a transport length of 5.26 meters, a transport width of 1.98 meters, and a transport height of 2.56 meters.

What is the track width of the Eurocomach ES 57 ZT mini excavator?

The Eurocomach ES 57 ZT mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Eurocomach ES 57 ZT mini excavator?

The Eurocomach ES 57 ZT has a dredging depth of 3.85 meters and a maximum horizontal reach of 6.19 meters.

What is the tear-out force of the Eurocomach ES 57 ZT?

The Eurocomach ES 57 ZT has a tear-out force of 45 kN.

What operator safety features does the Eurocomach ES 57 ZT have?

The Eurocomach ES 57 ZT is equipped with a cabin that includes ROPS for driver protection.

How much is a Eurocomach ES 57 ZT Mini excavator (2012u20132019) worth?

The residual value of the Eurocomach ES 57 ZT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
