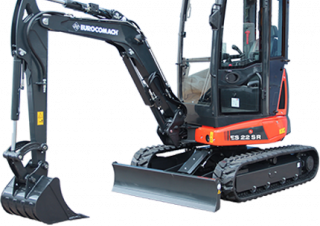

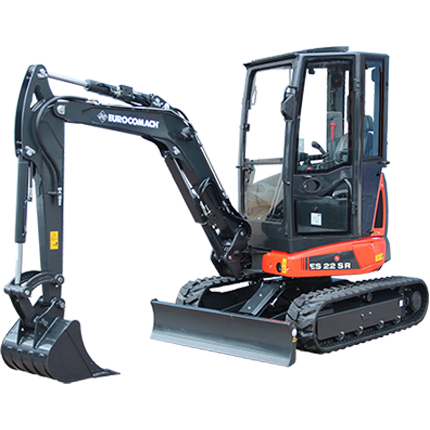

ES 22 SR Eurocomach excavator specs & dimensions (2014 - 2018)

Eurocomach ES 22 SR is a mini excavator manufactured from 2014 to 2018, with a weight of 2.16 tons. It features a track width of 2…

Eurocomach ES 22 SR is a mini excavator manufactured from 2014 to 2018, with a weight of 2.16 tons. It features a track width of 250 mm, a transport length of 3.834 meters, a transport width of 1.45 meters, and a transport height of 2.395 meters. The dredging depth is 2.493 meters, and it comes equipped with a blade and rubber tracks.

Mini Excavators Eurocomach ES 22 SR

Technical specs - ES 22 SR Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.16 t
Transport length
3.834 m
Transport width
1.45 m
Transport height
2.395 m
Track width
250 mm
Driver protection
FD
Dredging depth
2.493 m
Model series
MME
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
14 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, tear-out force, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach ES 22 SR FAQ

When was the Eurocomach ES 22 SR manufactured?

The Eurocomach ES 22 SR was manufactured from 2014 to 2018.

How much does the Eurocomach ES 22 SR weigh?

The Eurocomach ES 22 SR weighs 2.16 tons.

What are the transport dimensions of the Eurocomach ES 22 SR mini excavator?

The Eurocomach ES 22 SR has a transport length of 3.83 meters, a transport width of 1.45 meters, and a transport height of 2.4 meters.

What is the track width of the Eurocomach ES 22 SR mini excavator?

The Eurocomach ES 22 SR mini excavator has a track width of 250 mm.

What is the dredging depth of the Eurocomach ES 22 SR mini excavator?

The Eurocomach ES 22 SR mini excavator has a dredging depth of 2.493 meters.

What operator safety and support features does the Eurocomach ES 22 SR have?

The Eurocomach ES 22 SR has a canopy for driver protection.
