ES 15 SR Eurocomach excavator specs & dimensions (2012 - 2019)

Eurocomach ES 15 SR is a mini excavator manufactured from 2012 to 2019. It has a weight of 1.54 tons and a track width of 230 mm. …

Eurocomach ES 15 SR is a mini excavator manufactured from 2012 to 2019. It has a weight of 1.54 tons and a track width of 230 mm. The transport dimensions are 3.26 meters in length, 0.99 meters in width, and 2.357 meters in height. The dredging depth is 2.06 meters. It is equipped with a blade and rubber tracks.

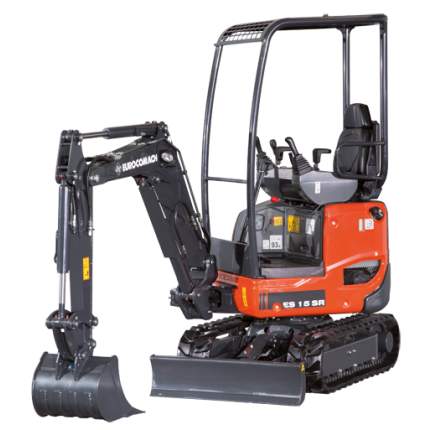

Mini Excavators Eurocomach ES 15 SR

Technical specs - ES 15 SR Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.54 t
Transport length
3.26 m
Transport width
0.99 m
Transport height
2.357 m
Track width
230 mm
Driver protection
FD
Dredging depth
2.06 m
Model series
MME
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
11.2 kW
Displacement
0.854 l
Revolutions at max torque
2100 rpm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, tear-out force, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach ES 15 SR FAQ

When was the Eurocomach ES 15 SR manufactured?

The Eurocomach ES 15 SR was manufactured from 2012 to 2019.

How much does the Eurocomach ES 15 SR weigh?

The Eurocomach ES 15 SR weighs 1.54 tons.

What are the transport dimensions of the Eurocomach ES 15 SR mini excavator?

The Eurocomach ES 15 SR has a transport length of 3.26 meters, a transport width of 0.99 meters, and a transport height of 2.36 meters.

What is the track width of the Eurocomach ES 15 SR's undercarriage?

The Eurocomach ES 15 SR has a track width of 230 mm.

What is the dredging depth of the Eurocomach ES 15 SR mini excavator?

The Eurocomach ES 15 SR mini excavator has a dredging depth of 2.06 meters.

What operator safety and support features does the Eurocomach ES 15 SR have?

The Eurocomach ES 15 SR is equipped with a canopy for driver protection.
