58 ZT Eurocomach excavator specs & dimensions (2020 - 2023)

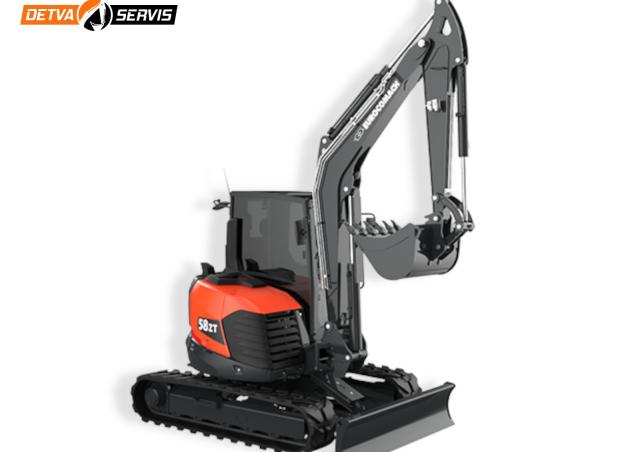

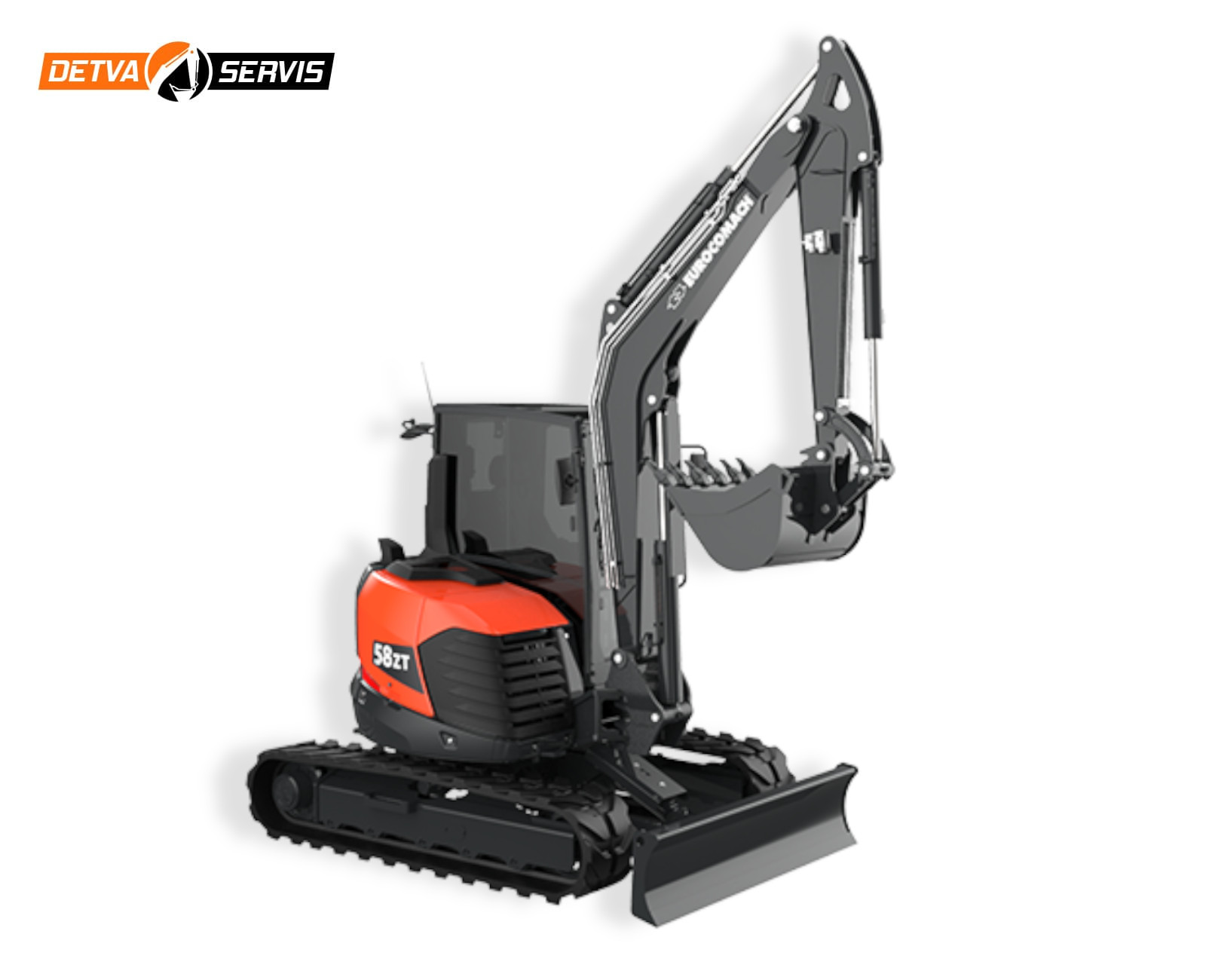

Eurocomach 58 ZT is a mini excavator manufactured since 2020. It has a weight of 5.4 tons and a track width of 400 mm. The transpo…

Eurocomach 58 ZT is a mini excavator manufactured since 2020. It has a weight of 5.4 tons and a track width of 400 mm. The transport dimensions are 5.79 meters in length, 1.98 meters in width, and 2.62 meters in height. The machine features a tear-out force of 53 kN, a dredging depth of 3.4 meters, and a maximum horizontal reach of 5.98 meters. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

58 ZT

Years of manufacture: 2020—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 58 ZT Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.4 t

Transport length: 5.79 m

Transport width: 1.98 m

Transport height: 2.62 m

Track width: 400 mm

Driver protection: KbR

Max. Reach horizontal: 5.98 m

Dredging depth: 3.4 m

Tear-out force: 53 kN

Model series: MME

Engine manuf.: Kubota

Engine type: V2607-CR-T

Engine power: 44.3 kW

Displacement: 2.615 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: Stage V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

Eurocomach 58 ZT FAQ

When was the Eurocomach 58 ZT manufactured?

The Eurocomach 58 ZT was manufactured from 2020 to 2023.

How much does the Eurocomach 58 ZT mini excavator weigh?

The Eurocomach 58 ZT mini excavator weighs 5.4 tons.

What are the transport dimensions of the Eurocomach 58 ZT mini excavator?

The Eurocomach 58 ZT has a transport length of 5.79 meters, a transport width of 1.98 meters, and a transport height of 2.62 meters.

What is the track width of the Eurocomach 58 ZT mini excavator?

The Eurocomach 58 ZT mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Eurocomach 58 ZT?

The Eurocomach 58 ZT has a dredging depth of 3.4 meters and a maximum horizontal reach of 5.98 meters.

What are the power ratings of the Eurocomach 58 ZT mini excavator?

The power ratings of the Eurocomach 58 ZT mini excavator are not provided in the available data.

What operator safety and support features does the Eurocomach 58 ZT have?

The Eurocomach 58 ZT is equipped with a cabin that includes ROPS for driver protection.

How much is a Eurocomach 58 ZT Mini excavator (2020u20132023) worth?

The residual value of the Eurocomach 58 ZT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Eurocomach 58 ZT overview

Dimensions and weight

HYDRAULIC SYSTEM
Circuit Type	Load Sensing closed center system with “Flow Sharing” control valve
Pump type	1 LS hydraulic variable pump with electronic control + 1 gear pump
Pump displacement	cc	65 + 14	5"
Pump capacity	lt/min	129 + 28	8"
Max. circuit calibration pressure	bar	280
Auxiliary system (max pressure): AUX 1 single or double effect with priority	lt/min (bar)	80 (200)
PERFORMANCES
Max. digging depth with standard arm (optional arm)	mm	3.400 (3.570)
Max. dumping height with standard arm (optional arm)	mm	3.950 (4.050)
Bucket breaking force (standard arm) ISO 6015	daN	5.300
Arm breaking force (standard arm) ISO 6015	daN	2.800
Traction force	daN	5.500
Ground bearing pressure with rubber tracks	kg/cm2	0	31"
Max. slope		60% - 30°
DIMENSIONS
Maximum width	mm	1.980
Total height	mm	2.550
Rear rotation radius	mm	1.000
Digging arm length std (optional)	mm	1.500 (1.650)
Tracks width	mm	400
Rollers number (for each side)	n°	5/1
FILLINGS
Fuel tank	lt	85
Hydraulic oil tank	lt	60
Hydraulic circuit capacity	lt	80
Cooling system capacity	lt	12
Engine oil	lt	10	2"
CONTROLS
Boom	dipper stick	bucket and turret swing"		2 pilot joysticks
Tracks mouvement (included counter rotation)		2 pilot levers
Dozer blade	pilot lever
Priority auxiliary system with holding function AUX 1 (single or double effect)	electroproportional switch on right joystick

Tables

	3	4	5	MAX
Frontal and lowered dozer blade	*2.740	*1.820	*1.430	*1.390
Frontal and lifted dozer blade	1.490	980	700	680
Lateral	1.290	860	620	590
