55va Eurocomach excavator specs & dimensions (2022 - 2023)

Menzi 55va is a mini excavator manufactured since 2022, with a weight of 5.25 tons. It features a track width of 400 mm and has tr…

Menzi 55va is a mini excavator manufactured since 2022, with a weight of 5.25 tons. It features a track width of 400 mm and has transport dimensions of 5.68 meters in length, 1.9 meters in width, and 2.57 meters in height. The machine offers a tear-out force of 43 kN, a dredging depth of 3.49 meters, and a maximum horizontal reach of 6.19 meters. It is equipped with a blade and rubber tracks.

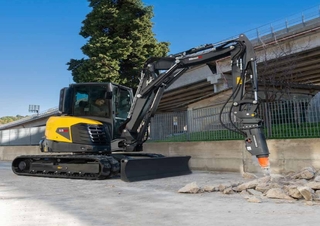

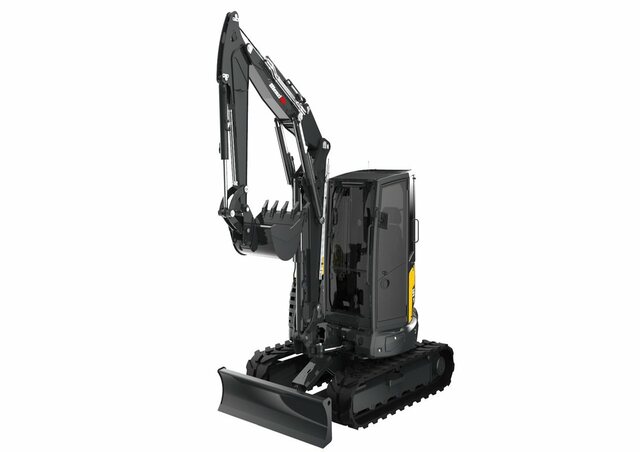

Mini Excavators Eurocomach 55va
Mini Excavators Eurocomach 55va
Mini Excavators Eurocomach 55va
Mini Excavators Eurocomach 55va

Technical specs - 55va Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.25 t
Transport length
5.68 m
Transport width
1.9 m
Transport height
2.57 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
6.19 m
Dredging depth
3.49 m
Tear-out force
43 kN
Engine manuf.
Kubota
Engine type
V2403-CR-T
Engine power
42.6 kW
Displacement
2.434 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 55va FAQ

When was the Eurocomach 55va manufactured?

The Eurocomach 55va was manufactured from 2022 to 2023.

How much does the Eurocomach 55va mini excavator weigh?

The Eurocomach 55va mini excavator weighs 5.25 tons.

What are the transport dimensions of the Eurocomach 55va mini excavator?

The Eurocomach 55va has a transport length of 5.68 meters, a transport width of 1.9 meters, and a transport height of 2.57 meters.

What is the track width of the Eurocomach 55va mini excavator?

The Eurocomach 55va mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Eurocomach 55va mini excavator?

The Eurocomach 55va mini excavator has a dredging depth of 3.49 meters and a maximum horizontal reach of 6.19 meters.

What is the tear-out force of the Eurocomach 55va mini excavator?

The Eurocomach 55va mini excavator has a tear-out force of 43 kN.

What operator safety features does the Eurocomach 55va have?

The Eurocomach 55va has a cabin for driver protection.
