55sa Eurocomach excavator specs & dimensions (2022 - 2023)

Menzi 55sa is a Mini Excavator manufactured since 2022, with a weight of 4.8 t and a track width of 400 mm. It has a transport len…

Menzi 55sa is a Mini Excavator manufactured since 2022, with a weight of 4.8 t and a track width of 400 mm. It has a transport length of 5.55 m, a transport width of 1.9 m, and a transport height of 2.57 m. The machine features a tear-out force of 43 kN, a dredging depth of 3.33 m, and a maximum horizontal reach of 5.5 m. Special equipment includes a blade and rubber track.

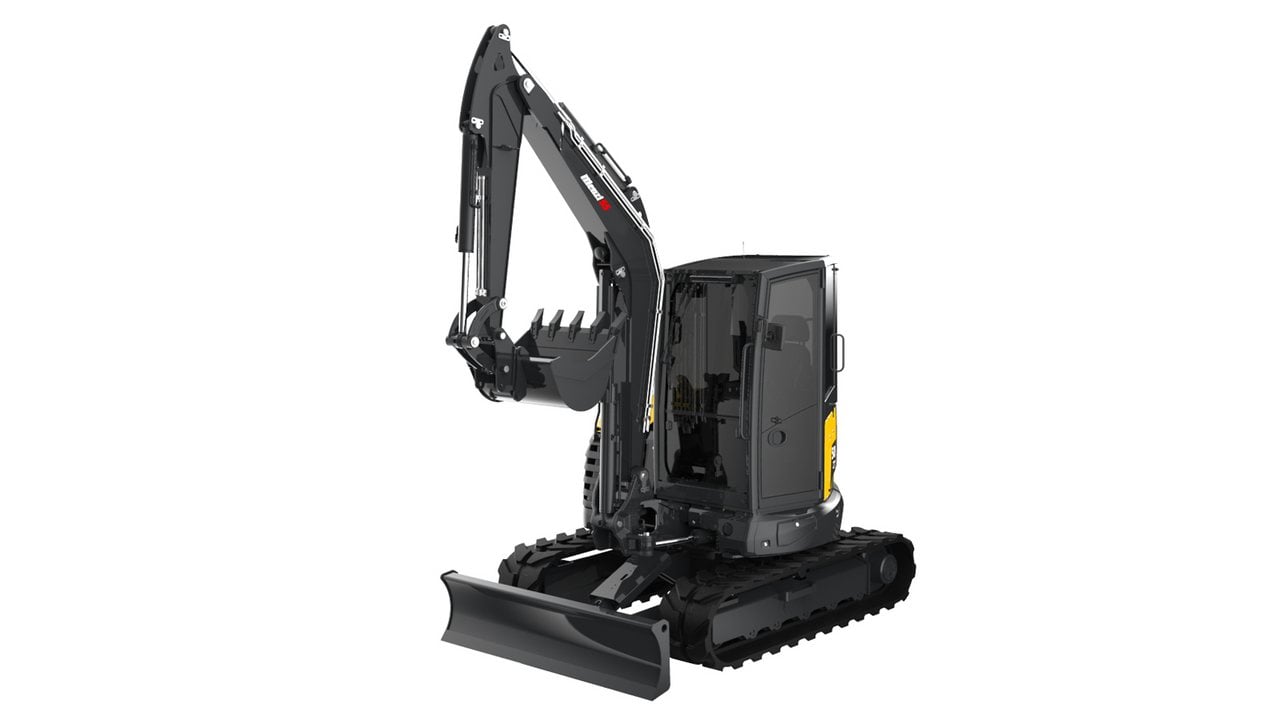

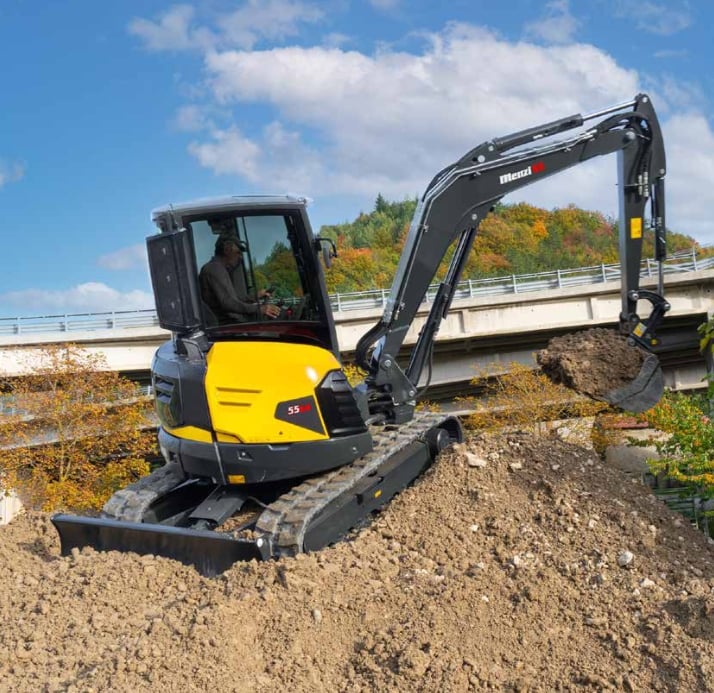

Mini Excavators Eurocomach 55sa
Mini Excavators Eurocomach 55sa
Mini Excavators Eurocomach 55sa
Mini Excavators Eurocomach 55sa

Technical specs - 55sa Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.8 t
Transport length
5.55 m
Transport width
1.9 m
Transport height
2.57 m
Track width
400 mm
Driver protection
Kb
Max. Reach horizontal
5.5 m
Dredging depth
3.33 m
Tear-out force
43 kN
Engine manuf.
Kubota
Engine type
V2403-CR-T
Engine power
42.6 kW
Displacement
2.434 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 55sa FAQ

When was the Eurocomach 55sa manufactured?

The Eurocomach 55sa was manufactured from 2022 to 2023.

How much does the Eurocomach 55sa weigh?

The Eurocomach 55sa weighs 4.8 tons.

What are the transport dimensions of the Eurocomach 55sa mini excavator?

The Eurocomach 55sa has a transport length of 5.55 meters, a transport width of 1.9 meters, and a transport height of 2.57 meters.

What is the track width of the Eurocomach 55sa mini excavator?

The Eurocomach 55sa mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Eurocomach 55sa mini excavator?

The Eurocomach 55sa mini excavator has a dredging depth of 3.33 meters and a maximum horizontal reach of 5.5 meters.

What power rating information is available for the Eurocomach 55sa mini excavator?

There is no power rating information available for the Eurocomach 55sa mini excavator in the provided data.

What driver protection feature does the Eurocomach 55sa have?

The Eurocomach 55sa has a cabin for driver protection.

How much is a Eurocomach 55sa Mini excavator (2022u20132023) worth?

The residual value of the Eurocomach 55sa depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
