45sa Eurocomach excavator specs & dimensions (2022 - 2023)

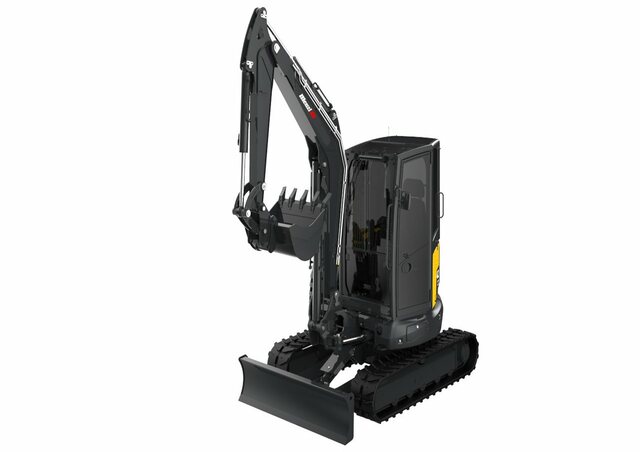

Menzi 45sa is a mini excavator manufactured since 2022, with a weight of 4.05 tons. It features a track width of 350 mm and has tr…

Menzi 45sa is a mini excavator manufactured since 2022, with a weight of 4.05 tons. It features a track width of 350 mm and has transport dimensions of 5.3 meters in length, 1.75 meters in width, and 2.51 meters in height. The machine offers a tear-out force of 43 kN, a dredging depth of 3.085 meters, and a maximum horizontal reach of 5.27 meters. It is equipped with a blade and rubber tracks.

Mini Excavators Eurocomach 45sa
Mini Excavators Eurocomach 45sa
Mini Excavators Eurocomach 45sa
Mini Excavators Eurocomach 45sa

Technical specs - 45sa Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.05 t
Transport length
5.3 m
Transport width
1.75 m
Transport height
2.51 m
Track width
350 mm
Driver protection
FD
Max. Reach horizontal
5.27 m
Dredging depth
3.085 m
Tear-out force
43 kN
Engine manuf.
Kubota
Engine type
D1803-CR-T
Engine power
32.3 kW
Displacement
1.826 l
Revolutions at max torque
2300 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 45sa FAQ

When was the Eurocomach 45sa manufactured?

The Eurocomach 45sa was manufactured from 2022 to 2023.

How much does the Eurocomach 45sa weigh?

The Eurocomach 45sa weighs 4.05 tons.

What are the transport dimensions of the Eurocomach 45sa mini excavator?

The Eurocomach 45sa has a transport length of 5.3 meters, a transport width of 1.75 meters, and a transport height of 2.51 meters.

What is the track width of the Eurocomach 45sa mini excavator?

The Eurocomach 45sa mini excavator has a track width of 350 mm.

What are the dredging depth and maximum horizontal reach of the Eurocomach 45sa?

The Eurocomach 45sa has a dredging depth of 3.085 meters and a maximum horizontal reach of 5.27 meters.

What is the tear-out force of the Eurocomach 45sa mini excavator?

The Eurocomach 45sa mini excavator has a tear-out force of 43 kN.

What operator safety features does the Eurocomach 45sa have?

The Eurocomach 45sa has a canopy for driver protection.

How much is a Eurocomach 45sa Mini excavator (2022u20132023) worth?

The residual value of the Eurocomach 45sa depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
