42 ZT Eurocomach excavator specs & dimensions (2021 - 2023)

Eurocomach 42 ZT is a mini excavator manufactured since 2021, with a weight of 4.2 tons. It features a track width of 350 mm, a tr…

Eurocomach 42 ZT is a mini excavator manufactured since 2021, with a weight of 4.2 tons. It features a track width of 350 mm, a transport length of 5.3 meters, a transport width of 1.75 meters, and a transport height of 2.51 meters. The machine has a tear-out force of 43 kN, a dredging depth of 3.085 meters, and a maximum horizontal reach of 5.4 meters. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

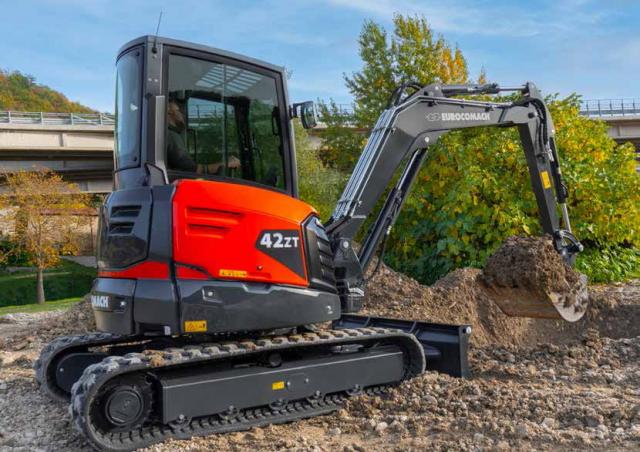

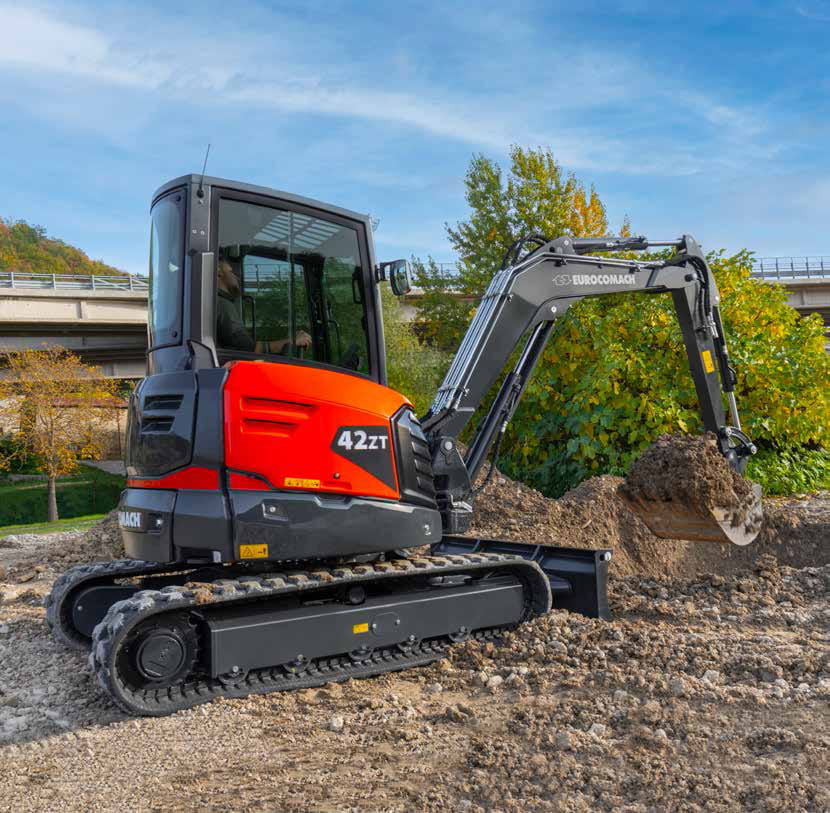

Mini Excavators Eurocomach 42 ZT
Mini Excavators Eurocomach 42 ZT
Mini Excavators Eurocomach 42 ZT
Mini Excavators Eurocomach 42 ZT

Technical specs - 42 ZT Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.2 t
Transport length
5.3 m
Transport width
1.75 m
Transport height
2.51 m
Track width
350 mm
Driver protection
KbR
Max. Reach horizontal
5.4 m
Dredging depth
3.085 m
Tear-out force
43 kN
Model series
MME
Engine manuf.
Kubota
Engine type
D1803-CR-T
Engine power
32.3 kW
Displacement
1.826 l
Revolutions at max torque
2300 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Eurocomach 42 ZT FAQ

When was the Eurocomach 42 ZT manufactured?

The Eurocomach 42 ZT was manufactured from 2021 to 2023.

How much does the Eurocomach 42 ZT weigh?

The Eurocomach 42 ZT weighs 4.2 tons.

What are the transport dimensions of the Eurocomach 42 ZT mini excavator?

The Eurocomach 42 ZT has a transport length of 5.3 meters, a transport width of 1.75 meters, and a transport height of 2.51 meters.

What is the track width of the Eurocomach 42 ZT mini excavator?

The Eurocomach 42 ZT mini excavator has a track width of 350 mm.

What are the excavation specifications of the Eurocomach 42 ZT mini excavator?

The Eurocomach 42 ZT mini excavator has a dredging depth of 3.085 meters and a maximum horizontal reach of 5.4 meters.

What is the tear-out force of the Eurocomach 42 ZT mini excavator?

The Eurocomach 42 ZT mini excavator has a tear-out force of 43 kN.

What operator safety features does the Eurocomach 42 ZT have?

The Eurocomach 42 ZT is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Eurocomach 42 ZT Mini excavator (2021u20132023) worth?

The residual value of the Eurocomach 42 ZT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Eurocomach 42 ZT overview

Dimensions and weight

Circuit TypeLoad Sensing closed center system with “Flow Sharing” control valve
Pump type1 LS hydraulic variable pump with electronic control + 1 gear pump
Pump displacementcc537 + 112"
Pump capacitylt/min107 + 223"
Max. circuit calibration pressurebar280
Auxiliary systems (max pressure):lt/min
AUX 1 single or double effect with priority60 (200)
AUX 2 double effect (optional)(bar)40/30 (280)
PERFORMANCES
Max. digging depth with standard arm (optional arm)mm3.085 (3.335)
Max. dumping height with standard arm (optional arm)mm3.660 (3.820)
Bucket breaking force (standard arm) ISO 6015daN4.300
Arm breaking force (standard arm) ISO 6015daN2.200
Traction forcedaN4.260
Ground bearing pressure with rubber tracks and canopy (with cabin)kg/cm2029 (030)"
Max. slope60% - 30°
DIMENSIONS
Maximum widthmm1.750
Total heightmm2.510
Rear rotation radiusmm875
Digging arm length std (optional)mm1.400 (1.650)
Tracks widthmm350
Rollers number (for each side)n°5/1
FILLINGS
Fuel tanklt60
Hydraulic oil tanklt50
Hydraulic circuit capacitylt65
Cooling system capacitylt9
Engine oillt7

Tables

34MAX
Frontal and lowered dozer blade*1.620*1.150*1.030
Frontal and lifted dozer blade1.010660530
Lateral720480390
