35 ZT Eurocomach excavator specs & dimensions (2020 - 2023)

Eurocomach 35 ZT is a mini excavator manufactured since 2020, with a weight of 3.4 tons. It features a track width of 300 mm, a tr…

Eurocomach 35 ZT is a mini excavator manufactured since 2020, with a weight of 3.4 tons. It features a track width of 300 mm, a transport length of 4.86 meters, a transport width of 1.58 meters, and a transport height of 2.53 meters. The machine has a tear-out force of 31 kN, a dredging depth of 2.87 meters, and a maximum horizontal reach of 4.93 meters. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

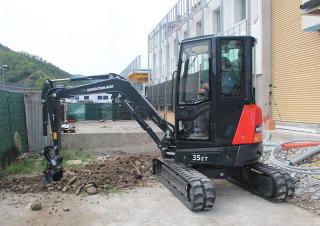

Mini Excavators Eurocomach 35 ZT
Mini Excavators Eurocomach 35 ZT
Mini Excavators Eurocomach 35 ZT
Mini Excavators Eurocomach 35 ZT
Mini Excavators Eurocomach 35 ZT
Mini Excavators Eurocomach 35 ZT

Technical specs - 35 ZT Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.4 t
Transport length
4.86 m
Transport width
1.58 m
Transport height
2.53 m
Track width
300 mm
Driver protection
KbR
Max. Reach horizontal
4.93 m
Dredging depth
2.87 m
Tear-out force
31 kN
Model series
MME
Engine manuf.
Kubota
Engine type
D1703-M
Engine power
18.2 kW
Displacement
1.647 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Eurocomach 35 ZT FAQ

When was the Eurocomach 35 ZT manufactured?

The Eurocomach 35 ZT was manufactured from 2020 until 2023.

How much does the Eurocomach 35 ZT weigh?

The Eurocomach 35 ZT weighs 3.4 tons.

What are the transport dimensions of the Eurocomach 35 ZT mini excavator?

The Eurocomach 35 ZT has a transport length of 4.86 meters, a transport width of 1.58 meters, and a transport height of 2.53 meters.

What is the track width of the Eurocomach 35 ZT's undercarriage?

The Eurocomach 35 ZT has a track width of 300 mm.

What is the excavation performance of the Eurocomach 35 ZT mini excavator?

The Eurocomach 35 ZT mini excavator has a dredging depth of 2.87 meters and a maximum horizontal reach of 4.93 meters.

What is the tear-out force of the Eurocomach 35 ZT mini excavator, given that no power rating data is available?

The Eurocomach 35 ZT mini excavator has a tear-out force of 31 kN. No power rating information is provided in the source data.

What operator safety features does the Eurocomach 35 ZT offer?

The Eurocomach 35 ZT provides operator safety with a cabin equipped with ROPS (Roll-Over Protective Structure).

How much is a Eurocomach 35 ZT Mini excavator (2020u20132023) worth?

The residual value of the Eurocomach 35 ZT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Eurocomach 35 ZT overview

Dimensions and weight

Circuit TypeLoad Sensing closed center system with “Flow Sharing” control valve
Pump type1 LS variable pump + 1 gear pump
Pump displacementcc48 + 5
Pump capacitylt/min105 + 10
Max. circuit calibration pressurebar250
Auxiliary systems (max pressure): AUX 1 single or double effect with priority AUX 2 double effect (optional)lt/min (bar)50 (200) 35/20 (250)
PERFORMANCES
Max. digging depth with standard arm (optional arm)mm2.870 (3.070)
Max. dumping height with standard arm (optional arm)mm3.110 (3.230)
Bucket breaking force (standard arm) ISO 6015daN3.100
Arm breaking force (standard arm) ISO 6015daN1.750
Traction forcedaN3.400
Ground bearing pressure with rubber tracks and canopy (with cabin)kg/cm2033 (034)"

Tables

34MAX
Frontal and lowered dozer blade*870*650*630
Frontal and lifted dozer blade*870*650*630
Lateral690470430
CoolingLiquid
Consumptionlt/h35"
AlternatorV (A)12 (40)
BatteryV (Ah)12 (80)
