18sa Eurocomach excavator specs & dimensions (2022 - 2023)

Menzi 18sa is a mini excavator manufactured since 2022, with a weight of 1.73 tons. It features a track width of 230 mm and has tr…

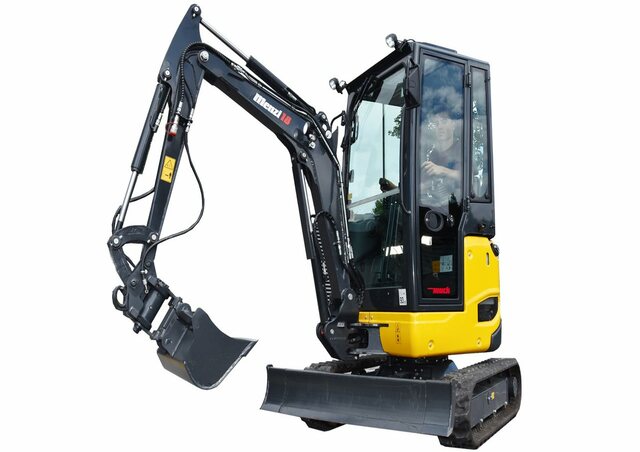

Menzi 18sa is a mini excavator manufactured since 2022, with a weight of 1.73 tons. It features a track width of 230 mm and has transport dimensions of 3.81 meters in length, 0.99 meters in width, and 2.357 meters in height. The machine offers a tear-out force of 15.5 kN, a dredging depth of 2.3 meters, and a maximum horizontal reach of 3.91 meters. It comes equipped with a blade and rubber tracks.

Mini Excavators Eurocomach 18sa
Mini Excavators Eurocomach 18sa
Mini Excavators Eurocomach 18sa
Mini Excavators Eurocomach 18sa
Mini Excavators Eurocomach 18sa
Mini Excavators Eurocomach 18sa

Technical specs - 18sa Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.73 t
Transport length
3.81 m
Transport width
0.99 m
Transport height
2.357 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.91 m
Dredging depth
2.3 m
Tear-out force
15.5 kN
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
11.2 kW
Displacement
0.854 l
Revolutions at max torque
2100 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 18sa FAQ

When was the Eurocomach 18sa manufactured?

The Eurocomach 18sa was manufactured from 2022 to 2023.

How much does the Eurocomach 18sa weigh?

The Eurocomach 18sa weighs 1.73 tons.

What are the transport dimensions of the Eurocomach 18sa mini excavator?

The Eurocomach 18sa has a transport length of 3.81 meters, a transport width of 0.99 meters, and a transport height of 2.36 meters.

What is the track width of the Eurocomach 18sa mini excavator?

The Eurocomach 18sa mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Eurocomach 18sa mini excavator?

The Eurocomach 18sa mini excavator has a dredging depth of 2.3 meters and a maximum horizontal reach of 3.91 meters.

What is the tear-out force of the Eurocomach 18sa mini excavator?

The Eurocomach 18sa has a tear-out force of 15.5 kN.

What operator safety feature does the Eurocomach 18sa have?

The Eurocomach 18sa is equipped with a canopy for driver protection.

How much is a Eurocomach 18sa Mini excavator (2022u20132023) worth?

The residual value of the Eurocomach 18sa depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
