Solar 030 plus Doosan excavator specs & dimensions (2003 - 2012)

Model rating: 5,00 / 10

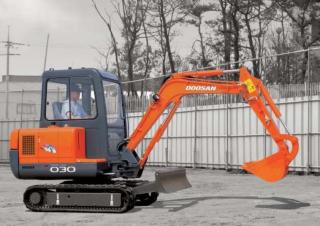

Doosan Solar 030 plus is a mini excavator manufactured from 2003 to 2012, with a weight of 2.86 tons. It features a track width of…

Doosan Solar 030 plus is a mini excavator manufactured from 2003 to 2012, with a weight of 2.86 tons. It features a track width of 300 mm, a transport length of 4.395 meters, a transport width of 1.47 meters, and a transport height of 2.37 meters. The excavator has a maximum horizontal reach of 4.659 meters, a bucket width of 0.4 meters, and a bucket capacity of 0.069 cubic meters. It is equipped with a blade and rubber tracks.

Solar 030 plus

Years of manufacture: 2003—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Solar 030 plus Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.86 t

Transport length: 4.395 m

Transport width: 1.47 m

Transport height: 2.37 m

Bucket capacity: 0.069 m³

Bucket width: 0.4 m

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 4.659 m

Dredging depth: 4.31 m

Tear-out force: 21.5 kN

Model series: Solar

Engine manuf.: Isuzu

Engine type: 3 LD 1

Engine power: 18 kW

Displacement: 1.496 l

Revolutions at max torque: 1700 rpm

Max. torque: 93.2 Nm

No. of cylinders: 3

More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Solar 030 plus Doosan Specification for Europe (EN)

Doosan Solar 030 plus FAQ

When was the Doosan Solar 030 plus manufactured?

The Doosan Solar 030 plus was manufactured from 2003 to 2012.

How much does the Doosan Solar 030 plus weigh?

The Doosan Solar 030 plus weighs 2.86 tons.

What are the transport dimensions of the Doosan Solar 030 plus mini excavator?

The Doosan Solar 030 plus has a transport length of 4.4 meters, a transport width of 1.47 meters, and a transport height of 2.37 meters.

What is the track width of the Doosan Solar 030 plus mini excavator?

The Doosan Solar 030 plus mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Doosan Solar 030 plus mini excavator?

The Doosan Solar 030 plus mini excavator has a dredging depth of 4.31 meters and a maximum horizontal reach of 4.659 meters.

What is the tear-out force of the Doosan Solar 030 plus mini excavator?

The Doosan Solar 030 plus mini excavator has a tear-out force of 21.5 kN.

What are the bucket specifications of the Doosan Solar 030 plus mini excavator?

The Doosan Solar 030 plus mini excavator has a bucket capacity of 0.069 cubic meters and a bucket width of 0.4 meters.

What operator safety features does the Doosan Solar 030 plus have?

The Doosan Solar 030 plus has a cabin for driver protection.

How much is a Doosan Solar 030 plus Mini excavator (2003u20132012) worth?

The residual value of the Doosan Solar 030 plus depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan Solar 030 plus overview

Doosan Solar 030 plus features overview

ISUZU 3LD1 Engine
Solar 030 Plus, featuring the powerful and environmentally friendly Heart, always offers high operating efficiency and a pleasant working condition.

The most advanced hydraulic circuit with a very powerful engine ensures powerful excavation and work efficiency, as well as the largest tightening and tractive forces. This gives the Solar 030 Plus outstanding performance, working efficiency and adaptability to any job environment.
Defroster
The high-capacity defroster is installed on the right and front windows, providing excellent performance in both cold and hot conditions. Both frost and moisture are very efficient to eliminate, ensuring a safer operator's working condition during any

The powerful power of the excavator, designed by Doosan Infracore Co, Ltd.'s most advanced technology, is integrated into the Solar 030 Plus to ensure easy and easy maintenance.

Engine / Driveline and transmission

E/G Control Lever
The engine control lever is located at a very convenient location where the operator can easily control the engine speed.

The convenient boom swing function provides the ability to work in very tight areas. Redesigned oscillating bracket and increased boom cylinder size ensure powerful and stable boom pivot performance.
Engine Room
The engine compartment is designed for easier service and the sturdy rubber inside the ENGINE COVER reduces noise to provide operators and residents in urban areas with a comfortable environment.
Grease Piping
Integrated grease piping is designed to easily perform maintenance work on oscillating bearings, boom swing cylinders.
Oil Gauge
Simply check the level of oil throughout the entire oil gauge on the hydraulic tank side.

Tyres / Tracks

Console Box
The console box is neatly arranged and collection convenient to make the cabin interior room spacious and comfortable.The interior has many compartments for storing tools, shoes and other personal items.

Dimensions and weight

Shoe type	Shoe width	Operating weight	Ground pressure
Triple grouser	300mm (1')	2	880 kg ( 6	350 lb)"	0.30 kgf/cm2 ( 4.27 psi)
Rubber	300mm (1')	2	840 kg ( 6	260 lb)"	0.30 kgf/cm2 ( 4.27 psi)

A Overall width of upper structure	1	410 mm (4'8"")"
B Overall width of cab	955 mm (3'2"")"
C Overall height of cab	2	335 mm (7'8"")"
D Tail swing radius	1	350 mm (4'5"")"
E Overall height	1	430 mm (4'8"")"
F Clearance under counterweight	520 mm (1'8"")"
G Ground clearance	280 mm (11"")"
H Tumbler distance	1	440 mm (4'9"")"
I Track length	1	870 mm (6'2"")"
J Track gauge	1	150 mm (3'9"")"
K Track shoe width	300 mm (1')
L Overall length	4	395 mm(14'5"")"

Other features

Comfortable Operating Cab
A spacious, independent, low impact and low noise operator's cab with 4 side safety glass windows gives all-round visibility up and down in the front and right side window opens for ventilation.
Control Stand
The left and right hand control stands are ergonomically designed for convenient operation. Operator stand areas have ample room to install multiple option switches. uni-body plastic design provides the operator with a spacious and comfortable cab space.

All conventional concepts have been ruled out and the newly developed Solar 030 Plus provides the operator with maximum comfort and various convenient features. Solar 030 Plus - The result of inovative technical design! The cab compartment is more comfortable than any other excavator in its class.

The hydraulic joystick levers feature very comfortable handles that allow the operator precise operation very easily. We have arranged two switches on top of the joystick for convenient and varied attachment options.
Suspension Seat
The suspension can be adjusted to suit the respective physical characteristics of the operator. In addition, the shock absorbing features of the seat provide excellent support and comfort for the operator in any work environment and long working hours.

The conveniently located cup holders add to the comfort of the cab.
Seat Cover
The waterproof seat covers prevent the seats from absorbing water during rain.
Arm Rest
The arm rests help the operator feel at ease during long working days. Arm rests have been relocated to the control level and offer more comfort for the operator than the other seats with the arm rest on the seats. Height can be easily adjusted to any type of body.

Safety

Pilot Cut-off Switch
A hydraulic shut-off switch has been fitted into the system for maximum safety. The cut-off switch locks the front off from movement until it is back on, ensuring people's safety around the machine.

Tables

Cylinders	Q'ty	Bore × Rod dia. × Stroke
Boom	1	70 × 40 × 567mm (3"" × 2"" × 1'10"")"
Arm	1	70 × 40 X 510mm (3"" × 2"" x 1'8"")"
Bucket	1	70 × 35 × 425mm (3"" × 1"" × 1'5"")"
Dozer	1	75 X 40 × 125mm (3"" 2"" × 5"") ×"
Boom swing	1	60 × 35 × 626.5mm (2"" × 1"" × 2'1"")"

Model	ISUZU 3LD1
Type	Water-cooled	3-cycle	Indirect injection ."
Aspiration	Natural
No. of cylinders	3
Rated flywheel horse power
DIN 6271	gross"	18.5 KW (25.2 PS)
	at 1	950 rpm"
DIN 6271	net"	18 KW (24.5 PS)
	at 1	950 rpm"
SAE J1995	gross"	18.5 KW (24.8 HP)
	at 1	950 rpm"
SAE J1349	net"	18 KW (24.1 HP)
at 1	950 rpm"
Displacement	1	496 cc (89.6 cu.in)"
Maximum torque	9.5 kgf.m (93.2 Nm
	20.9 lbf.ft) @1	700 rpm"
Bore and stroke	83.1 mm X 92 mm
	(3.27"" 3.62"") ×"
Starting system	12V Electric motor
Batteries	12 V × 80 AH
Alternator	12 V × 35 AH

Capacity	Width	Weight	Recommendation
PCSA, heaped	CECE, heaped",Without side cutters,With side cutters,"2.1 m(6'11"") Boom	1.1 m(3'7"") Arm"
0.069 m3 (0.090 yd3 ),0.053 m3 (0.069 yd3 ),"400 mm (1'4 "")	444 mm (1'5 "")",43 kg (94.8 lb),-,-

Lubrication	Liters	US gal	Imp gal
Engine oil	6.3	1.66	1.39
Final drive(each)	0.45	0.12	0.1
Hydraulic tank	53	14	11.7

	Liters	US gal	UK gal
Fuel tank	35	9.25	7.7
Cooling system	7.0	1.85	1.54

Track shoes	Rubber shoe
Overall track length	1	870mm(6'2"")"
Shoe width	300mm(1')


	1.1m (3'7"")Arm"
Bucket	1	860 kgf"
digging	18.2 kN
force *	4	100 lbf"
Arm	1	270 kgf"
digging	12.5 kN
force *	2	800 lbf"

Boom length	2.1 m (6'11"")"
Arm length	1.1 m (3'7"")"
A. Max. digging reach	4	470 mm (14'8"")"
B. Max. digging reach at ground level	4	345 mm (14'3"")"
C. Max. digging depth	2	590 mm (8'6"")"
D. Max. digging height	4	200 mm (13'9"")"
E. Max. dumping height	2	855 mm (9'4"")"
F. Max. vertical wall digging depth	1	665 mm (5'6"")"

A(m)	2	2.5	3	3.5	Max. Reach
B(m)											A(m)
3									*4.40	3.30	2.88
2.5					*4.40	3.00			*4.40	2.60	3.26
2			*5.10	4.00	*4.70	3.00			*4.50	2.30	3.49
1.5	*8.40	5.20	*6.20	3.80	*5.30	2.80	4.50	2.20	4.30	2.10	3.63
1	10.40	4.80	*7.40	3.50	5.60	2.70	4.50	2.10	4.10	2.00	3.68
0.5	10.10	4.50	7.20	3.40	5.50	2.60	4.40	2.10	4.10	1.90	3.64
0	10.00	4.50	7.10	3.30	5.40	2.50	4.40	2.00	4.30	2.00	3.52
-0.5	10.00	4.50	7.10	3.30	5.40	2.50			4.70	2.20	3.30
-1	10.10	4.50	7.10	3.30					5.60	2.60	2.95
-6	*8.00	4.60							*6.10	3.60	2.40

A(ft)	6'	8'	10'	12'	Max. Reach
B(ft)											A(ft)
10'									*9.80	7.40	9'32"""
8'					*9.70	*6.50			*9.80	5.60	10'80"""
6'	*16.40	13.80	*12.30	8.90	*10.70	6.30			9.90	4.80	11'65"""
4'	*26.00	12.20	*15.80	8.30	*12.20	6.00	9.30	4.40	9.20	4.40	12'03"""
2'	*18.80	11.40	16.60	7.80	11.90	5.70	9.10	4.30	9.10	4.30	12'00"""
0'	25.70	11.20	16.30	7.50	11.70	5.50			9.50	4.40	11'55"""
-2'	25.80	11.20	16.20	7.40	11.70	5.40			10.70	5.00	10'61"""
-4'	*23.20	11.50	*16.00	7.60					*13.20	6.40	9'00"""
-6'									*13.40	12.40	5'88"""

A(m)	2	2.5	3	3.5	Max. Reach
B(m)											A(m)
3									*4.40	3.30	2.88
2.5					*4.40	3.00			*4.40	2.60	3.26
2			*5.10	4.00	*4.70	3.00			*4.50	2.30	3.49
1.5	*8.40	5.20	*6.20	3.80	*5.30	2.80	*4.70	2.20	*4.70	2.10	3.63
1	*10.80	4.80	*7.40	3.50	*5.90	2.70	5.00	2.10	4.60	2.00	3.68
0.5	11.50	4.50	8.10	3.40	6.10	2.60	4.90	2.10	4.60	1.90	3.64
0	11.40	4.50	8.00	3.30	6.10	2.50	4.80	2.00	4.80	2.00	3.52
-0.5	11.40	4.50	7.90	3.30	6.00	2.50			5.30	2.20	3.30
-1	*10.30	4.50	*7.60	3.30					*5.80	2.60	2.95
-6	*8.00	4.60							*6.10	3.60	2.40

Feet Unit : 1	000 lb"
A(ft)	6'	8'	10'	12'	Max. Reach
B(ft)											A(ft)
10'									*9.80	7.40	9'32"""
8'					*9.70	*6.50			*9.80	5.60	10'80"""
6'	*16.40	13.80	*12.30	8.90	*10.70	6.30			*10.10	4.80	11'65"""
4'	*26.00	12.20	*15.80	8.30	*12.20	6.00	*12.90	8.10	10.20	4.40	12'03"""
2'	*18.80	11.40	*18.50	7.80	13.30	5.70	*13.90	7.80	10.10	4.30	12'00"""
0'	*27.40	11.20	18.30	7.50	13.10	5.50			10.60	4.40	11'55"""
-2'	*28.00	11.20	18.20	7.40	13.00	5.40			12.00	5.00	10'61"""
-4'	*23.20	11.50	*16.00	7.60					*13.20	6.40	9'00"""
-6'									*13.40	12.40	5'88"""
