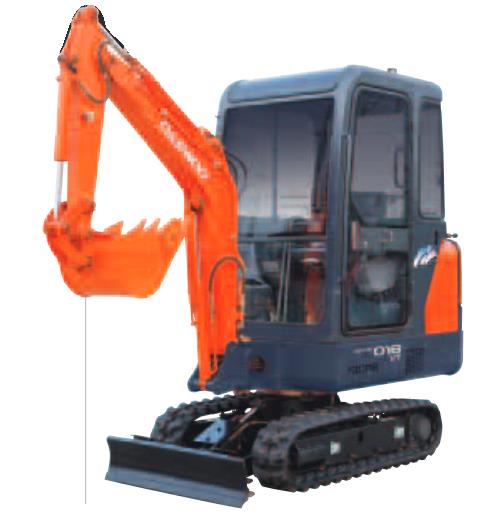

Solar 018 VT Doosan excavator specs & dimensions (2004 - 2008)

Doosan Solar 018 VT is a mini excavator manufactured from 2004 to 2008. It has a weight of 1.6 tons and a track width of 230 mm. T…

Doosan Solar 018 VT is a mini excavator manufactured from 2004 to 2008. It has a weight of 1.6 tons and a track width of 230 mm. The transport dimensions are 3.67 meters in length, 1.3 meters in width, and 2.39 meters in height. The bucket width is 0.426 meters, with a bucket capacity ranging from 0.02 to 0.026 cubic meters. Special equipment includes a blade, rubber track, and track adjustment.

Mini Excavators Doosan Solar 018 VT

Technical specs - Solar 018 VT Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.6 t
Transport length
3.67 m
Transport width
1.3 m
Transport height
2.39 m
Bucket capacity min.
0.02 m³
Bucket capacity max.
0.026 m³
Bucket width
0.426 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.92 m
Dredging depth
2.33 m
Tear-out force
12.7 kN
Model series
Solar
Engine manuf.
Mitsubishi
Engine type
L 3 E
Engine power
12.7 kW
Displacement
0.952 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan Solar 018 VT FAQ

When was the Doosan Solar 018 VT manufactured?

The Doosan Solar 018 VT was manufactured from 2004 to 2008.

How much does the Doosan Solar 018 VT mini excavator weigh?

The Doosan Solar 018 VT mini excavator weighs 1.6 tons.

What are the transport dimensions of the Doosan Solar 018 VT mini excavator?

The Doosan Solar 018 VT has a transport length of 3.67 meters, a transport width of 1.3 meters, and a transport height of 2.39 meters.

What is the track width of the Doosan Solar 018 VT mini excavator?

The Doosan Solar 018 VT mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Doosan Solar 018 VT?

The Doosan Solar 018 VT has a dredging depth of 2.33 meters and a maximum horizontal reach of 3.92 meters.

What is the tear-out force of the Doosan Solar 018 VT mini excavator?

The Doosan Solar 018 VT mini excavator has a tear-out force of 12.7 kN. No power rating data is available for this model.

What are the specifications of the primary work tool on the Doosan Solar 018 VT mini excavator?

The primary work tool of the Doosan Solar 018 VT has a bucket capacity ranging from 0.02 to 0.03 cubic meters and a bucket width of 0.426 meters.

What operator safety and support features does the Doosan Solar 018 VT have?

The Doosan Solar 018 VT provides operator safety with a cabin for driver protection.
