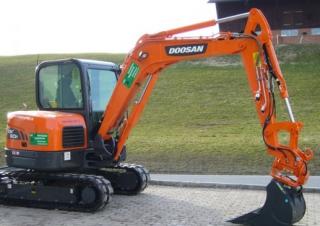

DX60-5B Doosan excavator specs & dimensions (2020 - 2023)

Further improved fuel efficiency and durability of the DX60-5B, designed targeting the superior production efficiency of the same ton weight-classes
Superior excavating, drive and towing performance as well as superior rotational speed compared to other products in the same ton of weight class. Excellent efficiency, with each part providing superior durability. Adjusted to all types of poor working environments, the DX60-5B offers the customer the best profit.
Completely new option method of work
A choice can be made from two P/E working methods. The choices are based on all possible work environments and allow maximizing fuel efficiency.
new gage panel
The gauge instruments have been improved, the RPM and application time confirmation range increased. This allows easy understanding of equipment usage situation.
Upgraded operator panel, centralized switch design
Metal texture plates used in luxurious cars and cluster switch design maximize work comfort and efficiency.
New work light
Brightness has been enhanced by using completely new, high quality work lighting and working at night is even more comfortable.

High-efficiency hydraulic system
Minimal energy loss due to the perfect harmonisation of overall hydraulic system performance and engine power.
High fuel-efficiency
The electric control motor offers a variety of oil filters, guaranteeing engine durability. The hydraulic system works to maintain minimum loss through repeated simulation checks, and with state-of-the-art oil saving technology the use of oil has dramatically decreased.
engine
Yanmar 4TNV98 engine offers a gas pressure system, and the high performance for work is over 250, There's no loss of power at work making it easy to meet the challenge of your most difficult tasks. A multi-stage fuel filter system provides a high level of filtration, improves engine durability as well as reducing the quality problem caused by using poor diesel quality. The maximum value is guaranteed to the customer. Manufacturer Rated Power No. of Cylinders Displacement Yanmar 38. 9 kw (52. 1 hp) / 2,200 rpm 3,319 cc
Engine emergency brake button
If the equipment needs to be stopped urgently, pressing the brake button blocks supply with the combustion fuel of the engine. Fuel consumption then drops and thus assures workers safety.
Buffer rubber tube
A buffer rubber pipe has been added to the main pump, reducing engine vibration and extending the engine usage window.

Improvement over preceding models
The data presented herein are measured in the manufacturer's test environment and may vary according to testing conditions. Data applicability is limited to reference purpose only.
Wide operating space
A far wider and more comfortable environment is provided to the driver, using DX Series deluxe cabs in their natural state.

Wider field of view
The cab window is enlarged to provide the operator with a wider field of vision for undisturbed operation.
Newly designed boom and arm
Welding of the boom and arm has been reduced by a boom-lower plate unit design. In addition, structural developments prevent stress concentration, increasing both durability and structural stability of outrigger and arm.
Optimized chassis structure
The chassis is applied with a new design structure to remove stress concentration and improve machine durability as well as working stability. Track roller attachment point has been shifted from bottom to center to enhance suspension stability and structural rigidity of the chassis. The new type Idler wheel, optimized for structural design, adopts cast-in technology, simplifies the assembly process and increases linkage strength.
