DX55R-7 Doosan excavator specs & dimensions (2022 - 2023)

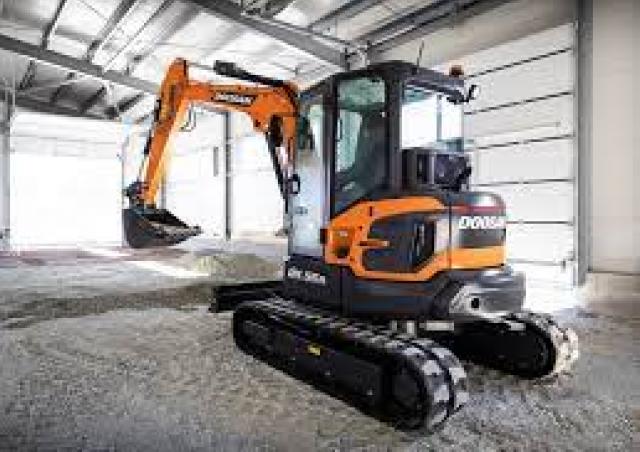

Doosan DX55R-7 is a mini excavator manufactured since 2022, with a weight of 5.74 tons. It features a track width of 400 mm and ha…

Doosan DX55R-7 is a mini excavator manufactured since 2022, with a weight of 5.74 tons. It features a track width of 400 mm and has transport dimensions of 5.4 meters in length, 1.98 meters in width, and 2.575 meters in height. The excavator has a dredging depth of 3.63 meters and a maximum horizontal reach of 6.09 meters. The bucket width is 0.669 meters with a capacity of 0.16 cubic meters. Special equipment includes air conditioning, a blade, rubber tracks, and track adjustment.

Mini Excavators Doosan DX55R-7

Technical specs - DX55R-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.74 t
Transport length
5.4 m
Transport width
1.98 m
Transport height
2.58 m
Bucket capacity
0.16 m³
Bucket capacity min.
0.16 m³
Bucket width
0.669 m
Track width
400 mm
Max. Reach horizontal
6.09 m
Dredging depth
3.63 m
Model series
DX
Engine manuf.
Doosan
Engine type
D18
Engine power
36.4 kW
Displacement
1.8 l
Revolutions at max torque
1600 rpm
Max. torque
180.4 Nm
No. of cylinders
3
Cylinder bore x stroke
90 x 94 mm
Emission level
Stage V

More technical details, like: bucket capacity max., standard tyres, driver protection, tear-out force, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX55R-7 FAQ

When was the Doosan DX55R-7 manufactured?

The Doosan DX55R-7 was manufactured from 2022 to 2023.

How much does the Doosan DX55R-7 weigh?

The Doosan DX55R-7 weighs 5.74 tons.

What are the transport dimensions of the Doosan DX55R-7 mini excavator?

The Doosan DX55R-7 has a transport length of 5.4 meters, a transport width of 1.98 meters, and a transport height of 2.58 meters.

What is the track width of the Doosan DX55R-7 mini excavator's undercarriage?

The Doosan DX55R-7 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Doosan DX55R-7 mini excavator?

The Doosan DX55R-7 mini excavator has a dredging depth of 3.63 meters and a maximum horizontal reach of 6.09 meters.

What are the bucket specifications of the Doosan DX55R-7 mini excavator?

The Doosan DX55R-7 has a bucket capacity of 0.16 cubic meters, a minimum bucket capacity of 0.16 cubic meters, and a bucket width of 0.669 meters.

How much is a Doosan DX55R-7 Mini excavator (2022u20132023) worth?

The residual value of the Doosan DX55R-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
