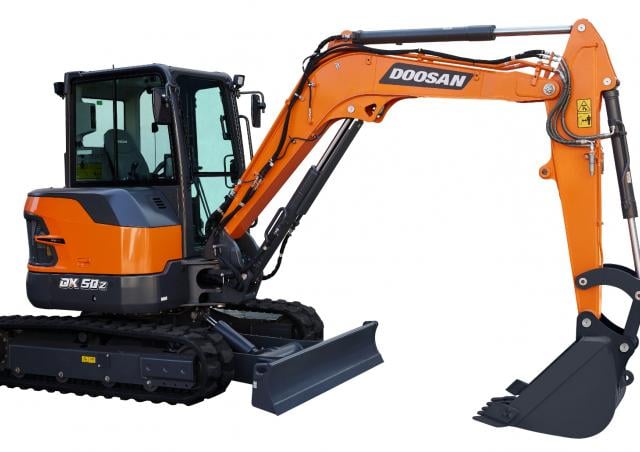

DX50Z-7 Doosan excavator specs & dimensions (2022 - 2023)

Doosan DX50Z-7 is a mini excavator manufactured since 2022, with a weight of 5.438 tons. It features a track width of 400 mm, a tr…

Doosan DX50Z-7 is a mini excavator manufactured since 2022, with a weight of 5.438 tons. It features a track width of 400 mm, a transport length of 5.386 meters, a transport width of 1.98 meters, and a transport height of 2.575 meters. The machine has a dredging depth of 3.48 meters and a maximum horizontal reach of 5.945 meters. The bucket width is 0.669 meters with a capacity of 0.16 cubic meters. Special equipment includes air conditioning, a blade, rubber tracks, and track adjustment.

Mini Excavators Doosan DX50Z-7

Technical specs - DX50Z-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.44 t
Transport length
5.39 m
Transport width
1.98 m
Transport height
2.58 m
Bucket capacity
0.16 m³
Bucket capacity min.
0.16 m³
Bucket width
0.669 m
Track width
400 mm
Max. Reach horizontal
5.945 m
Dredging depth
3.48 m
Model series
DX
Engine manuf.
Doosan
Engine type
D18
Engine power
36.4 kW
Displacement
1.8 l
Revolutions at max torque
1600 rpm
Max. torque
180.4 Nm
No. of cylinders
3
Cylinder bore x stroke
90 x 94 mm
Emission level
Stage V

More technical details, like: bucket capacity max., standard tyres, driver protection, tear-out force, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX50Z-7 FAQ

When was the Doosan DX50Z-7 manufactured?

The Doosan DX50Z-7 was manufactured from 2022 to 2023.

How much does the Doosan DX50Z-7 weigh?

The Doosan DX50Z-7 weighs 5.44 tons.

What are the transport dimensions of the Doosan DX50Z-7 mini excavator?

The Doosan DX50Z-7 has a transport length of 5.39 meters, a transport width of 1.98 meters, and a transport height of 2.58 meters.

What is the track width of the Doosan DX50Z-7 mini excavator?

The Doosan DX50Z-7 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Doosan DX50Z-7 mini excavator?

The Doosan DX50Z-7 mini excavator has a dredging depth of 3.48 meters and a maximum horizontal reach of 5.945 meters.

What are the bucket specifications of the Doosan DX50Z-7 mini excavator?

The Doosan DX50Z-7 has a bucket capacity of 0.16 cubic meters, a minimum bucket capacity of 0.16 cubic meters, and a bucket width of 0.669 meters.

How much is a Doosan DX50Z-7 Mini excavator (2022u20132023) worth?

The residual value of the Doosan DX50Z-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
