DX42-5 Doosan excavator specs & dimensions (2019 - 2021)

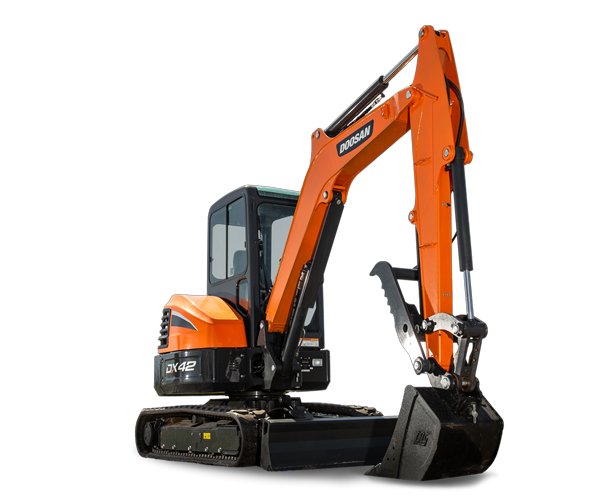

Doosan DX42-5 is a Mini Excavator manufactured from 2019 to 2021, with a weight of 4.33 tons. It features a track width of 350 mm,…

Doosan DX42-5 is a Mini Excavator manufactured from 2019 to 2021, with a weight of 4.33 tons. It features a track width of 350 mm, a transport length of 5.1 meters, a transport width of 1.75 meters, and a transport height of 2.5 meters. The excavator has a tear-out force of 41 kN, a dredging depth of 3.2 meters, and a maximum horizontal reach of 5.3 meters. The bucket capacity is a minimum of 0.15 cubic meters. Special equipment includes air conditioning, a blade, and rubber tracks.

Mini Excavators Doosan DX42-5

Technical specs - DX42-5 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.33 t
Transport length
5.1 m
Transport width
1.75 m
Transport height
2.5 m
Bucket capacity min.
0.15 m³
Track width
350 mm
Driver protection
Kb
Max. Reach horizontal
5.3 m
Dredging depth
3.2 m
Tear-out force
41 kN
Model series
DX
Engine manuf.
N/A
Engine type
N/A
Engine power
31.8 kW
Revolutions at max torque
1600 rpm
Max. torque
152 Nm
Emission level
T4

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX42-5 FAQ

When was the Doosan DX42-5 manufactured?

The Doosan DX42-5 was manufactured from 2019 to 2021.

How much does the Doosan DX42-5 mini excavator weigh?

The Doosan DX42-5 mini excavator weighs 4.33 tons.

What are the transport dimensions of the Doosan DX42-5 mini excavator?

The Doosan DX42-5 has a transport length of 5.1 meters, a transport width of 1.75 meters, and a transport height of 2.5 meters.

What is the track width of the Doosan DX42-5 mini excavator?

The Doosan DX42-5 mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the Doosan DX42-5 mini excavator?

The Doosan DX42-5 mini excavator has a dredging depth of 3.2 meters and a maximum horizontal reach of 5.3 meters.

What is the tear-out force of the Doosan DX42-5?

The Doosan DX42-5 has a tear-out force of 41 kN.

What is the minimum bucket capacity of the Doosan DX42-5 mini excavator?

The minimum bucket capacity of the Doosan DX42-5 is 0.15 cubic meters.

What operator safety features does the Doosan DX42-5 have?

The Doosan DX42-5 has a cabin for driver protection.

How much is a Doosan DX42-5 Mini excavator (2019u20132021) worth?

The residual value of the Doosan DX42-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
