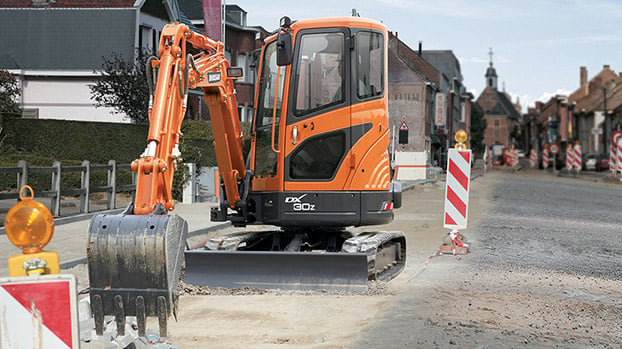

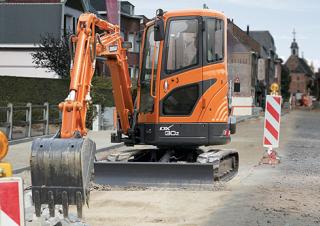

DX30Z Doosan excavator specs & dimensions (2008 - 2021)

Doosan DX30Z is a Mini Excavator with a weight of 3.18 t, a track width of 300 mm, and transport dimensions of 4.507 m in length, …

Doosan DX30Z is a Mini Excavator with a weight of 3.18 t, a track width of 300 mm, and transport dimensions of 4.507 m in length, 1.44 m in width, and 2.48 m in height. It features a tear-out force of 27.5 kN, a dredging depth of 2.838 m, and a maximum horizontal reach of 4.882 m. The bucket capacity is a minimum of 0.09 m³. Special equipment includes a blade and rubber track. This model was manufactured from 2008 to 2021.

DX30Z

Years of manufacture: 2008—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DX30Z Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.18 t

Transport length: 4.507 m

Transport width: 1.44 m

Transport height: 2.48 m

Bucket capacity min.: 0.09 m³

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 4.882 m

Dredging depth: 2.838 m

Tear-out force: 27.5 kN

Model series: DX

Engine manuf.: Yanmar

Engine type: 3TNV82A-PDB

Engine power: 18.1 kW

Displacement: 1.33 l

Revolutions at max torque: 1200 rpm

Max. torque: 88 Nm

No. of cylinders: 3

Cylinder bore x stroke: 82x84 mm

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, dimension lxwxh, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DX30Z FAQ

When was the Doosan DX30Z manufactured?

The Doosan DX30Z was manufactured from 2008 to 2021.

How much does the Doosan DX30Z mini excavator weigh?

The Doosan DX30Z mini excavator weighs 3.18 tons.

What are the transport dimensions of the Doosan DX30Z mini excavator?

The Doosan DX30Z has a transport length of 4.51 meters, a transport width of 1.44 meters, and a transport height of 2.48 meters.

What is the track width of the Doosan DX30Z mini excavator's undercarriage?

The Doosan DX30Z mini excavator has a track width of 300 mm.

What are the dredging depth and maximum horizontal reach of the Doosan DX30Z mini excavator?

The Doosan DX30Z mini excavator has a dredging depth of 2.838 meters and a maximum horizontal reach of 4.882 meters.

What is the tear-out force of the Doosan DX30Z mini excavator?

The Doosan DX30Z mini excavator has a tear-out force of 27.5 kN.

What is the minimum bucket capacity of the Doosan DX30Z mini excavator?

The minimum bucket capacity of the Doosan DX30Z mini excavator is 0.09 cubic meters.

What operator safety features does the Doosan DX30Z have?

The Doosan DX30Z has a cabin for driver protection.

How much is a Doosan DX30Z Mini excavator (2008u20132021) worth?

The residual value of the Doosan DX30Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan DX30Z overview

Doosan DX30Z features overview

DOOSAN DX27z & DX30z hydraulic excavators: two new models with novel features The new DX27z & DX30z hydraulic excavator (zero tail swing) offer an added value to the operator. These new models have been developed using the concept of providing optimal value to the end user. Specifically, this means : (cid:494) Increased production and improved fuel efficiency achieved by electronic optimisation of the hydraulic system and engine of the new generation.(cid:494) Improved ergonomics, increased comfort and excellent all-round visibility ensure a safe and pleasant working environment. (cid:494) Better reliability when using high performance materials combined with new methods of structural stress analysis result in greater component life time reducing running costs. (cid:494) Reduced maintenance increases uptime lowering the operating cost of the excavator.

Hydraulics

Joystick
The hydraulic joystick levers have very comfortable handles, allowing the operator to perform precise operations very easily.

Dimensions and weight

	DX27z	DX30z
Boom type	2.000 mm	2.280 mm
Arm type	1.100 mm	1.190 mm
A	Overall width of upper structure	1.440 mm	1.440 mm
B	Overall width of cabin	1.030 mm	1.030 mm
C	Overall height of cabin	2.445 mm	2.480 mm
D	Tail swing radius	760 mm	775 mm
E	Boom transport height	1.488 mm	1.590 mm
F	Clearance under counterweight	520 mm	535 mm
G	Ground clearance	440 mm	450 mm
H	Tumbler distance	1.550 mm	1.650 mm
I	Track length	1.970 mm	2.100 mm
J	Track gauge	1.270 mm	1.250 mm
K	Track shoe width	300 mm	300 mm
L	Overall length	4.060 mm	4.507 mm

Other features

Comfortable Operating Cabin
A ROPS-TOPS spacious, independent minimal shock and the cab of the low noise operator with safety glass provides all round visibility. The right side window opens for ventilation and the front window slides up.
Control Stand
The left and right hand control stands are ergonomically placed for conve nent operation. Operator stand areas have ample room to install multiple option switches. Uni-body plastic design provides the operator with a spacious and comfortable cab environment.
Arm Rest
A fully adjustable suspension seat provides operator comfort on long working days.
Floor Plate (Rubber mat)
The breaker pedal (left) and boom swing pedal (right) are located in a very spacious and convenient location. In addition, the rubber floor mats contribute to a very comfortable environment. Door opening has been increased by removing the lower lip allowing easy cleaning of the interior. Comfortable sliding seat Control stand Tilt function

Tables

Travel speed (high/low)	DX27Z	DX30Z
Maximum traction force,"4,3/2,4 km/h	4,6/2,6 km/h"
Maximum grade	2.400 kgf	2.750 kgf

Swing speed	DX27Z	DX30Z
Rear swing radius,"9,63 rpm	9,67 rpm"

Fuel tank	30 l
Cooling system (radiator capacity)	3	5 l"
Engine oil	5	5 l"
Final drive (each)	0	5 l"
Hydraulic tank	30 l

2 variable displacement axial piston pumps
Max flow: Pilot pump	DX27z DX30z	2 x 26	4 l/min + 18	9 l/min 2 x 37	2 l/min + 20	4 l/min"
Gear pump - Maximum system	max flow: DX27z DX30z pressure	11	2 l/min 10	8 l/min"
Boom/Arm/Bucket:
	DX27z DX30z	220 kgf/cm² (215 bar) 210 kgf/cm² (205 bar)
Travel :	DX27z	220 kgf/cm² (215 bar)
	DX30z	210 kgf/cm² (205 bar)
Swing :	DX27z	170 kgf/cm² (167 bar)
	DX30z	195 kgf/cm² (191 bar)

	DX27z	DX30z
Boom type	mm	2.000	2.280
Arm type	mm	1.100	1.300	1.190	1.300
Bucket type (SAE),m3,"0,08	0,08	0,09	0,09"
A Max. digging reach	mm	4.505	4.690	4.882	4.984
B Max. vertical wall depth	mm	2.295	2.500	2.278	2.383
C Max. loading height	mm	2.490	2.690	2.838	2.948
D Max. digging depth	mm	2.775	2.935	3.122	3.185
E Max. digging height	mm	4.165	4.280	4.555	4.618
F Min. swing radius	mm	1.950	1.985	2.015	2.034

	DX27z	DX30z
Bucket (PCSA),"0,08 m3	0,091 m3"
Digging force	2.020 kgf	2.800 kgf
Arm	1.100 mm 1.300 mm	1.190 mm 1.300 mm
Digging force	1.400 kgf 1.260 kgf	1.800 kgf 1.700 kgf

A (m) B (m)	2	2	5"	3	3	5"	Max. reach
Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down
																		A (m)			A (m)
3,,,,,,,,,"0,51	0,43	*0,58	0,43",,,,,"0,5	0,42	3,03	*0,59	0,42	3,03"
2,5",,,,,,,,,"0,52	0,43	*0,57	0,43",,,,,"0,42	0,35	3,39	*0,59	0,35	3,39"
2,,,,,"*0,67	0,57	*0,67	0,57	0,51	0,43	*0,62	0,43	0,40	0,.33	*0,60	0,33	0,37	0,31	3,63	*0,60	0,31	3,63"
1,5	0,98	0,79	*1,17	0,79	0,68	0,56	*0,85	0,56	0,51	0,42	*0,71	0,42	0,39	0,33	*0,64	0,33	0,35	0,29	3,76	*0,62	0,29	3,76"
1,,,,,"0,66	0,54	*1,04	0,54	0,50	0,41	*0,81	0,41	0,39	0,32	*0,69	0,32	0,34	0,28	3,80	*0,64	0,28	3,80"
0,5	0,93	0,74	*1,24	0,74	0,65	0,53	*1,17	0,53	0,49	0,40	*0,89	0,40	0,39	0,32	*0,73	0,32	0,34	0,28	3,76	*0,66	0,28	3,76"
0 (ground),"0,92	0,74	*1,67	0,74	0,64	0,52	*1,22	0,52	0,48	0,40	*0,92	0,40	0,38	0,32	*0,74	0,32	0,36	0,30	3,63	*0,69	0,30	3,63"
-0,5	0,92	0,74	*1,66	0,74	0,64	0,52	*1,19	0,52	0,48	0,40	*0,90	0,40",,,,,"0,40	0,33	3,40	*0,72	0,33	3,40"
-1,"0,93	0,74	*1,46	0,74	0,64	0,53	*1,07	0,53	0,49	0,40	*0,77	0,40",,,,,"0,48	0,39	3,04	*0,75	0,39	3,04"
-1,5	0,94	0,76	*1,09	0,76",,,,,,,,,,,,,"0,67	0,55	2,46	*0,76	0,55	2,46"

A (m) B (m)	2	2	5"	3	3	5"	Max. reach
Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down
															다 고			A (m)			A (m)
3,,,,,,,,,"*0,50	0,46	0,50	0,50",,,,,"0,51	0,35	3,50	0,57	0,38	3,50"
2,5",,,,,,,,,"*0,55	0,46	0,55	0,49	0,52	0,35	0,56	0,38	0,44	0,30	3,81	0,59	0,33	3,81"
2,"0,90	0,88	0,90	0,90	0,73	0,61	0,73	0,65	*0,65	0,45	0,65	0,49	0,51	0,35	0,61	0,38	0,40	0,27	4,01	0,61	0,30	4,01"
1,5",,,,,"0,88	0,59	0,98	0,63	0,65	0,44	0,78	0,48	0,51	0,34	0,68	0,37	0,38	0,26	4,12	0,63	0,28	4,12"
1,,,,,"0,85	0,56	1,22	0,61	0,64	0,43	0,92	0,46	0,50	0,34	0,76	0,36	0,38	0,25	4,16	0,66	0,27	4,16"
0,5",,,,,"0,84	0,55	1,38	0,59	0,63	0,42	1,02	0,45	0,49	0,33	0,83	0,36	0,38	0,25	4,12	0,69	0,28	4,12"
0 (ground),"1,21	0,77	1,27	0,83	0,83	0,54	1,45	0,59	0,62	0,41	1,09	0,45	0,49	0,33	0,87	0,36	0,40	0,26	4,00	0,72	0,29	4,00"
-0,5	1,22	0,77	2,00	0,83	0,83	0,54	1,44	0,59	0,62	0,41	1,10	0,45	0,49	0,32	0,87	0,35	0,43	0,29	3,80	0,76	0,31	3,80"
-1,"1,23	0,78	1,88	0,84	0,83	0,55	1,37	0,59	0,62	0,41	1,05	0,45",,,,,"0,49	0,33	3,49	0,81	0,36	3,49"
-1,5	1,24	0,79	1,63	0,85	0,84	0,56	1,20	0,60	0,63	0,42	0,88	0,46",,,,,"0,62	0,42	3,02	0,87	0,45	3,02"

A (m) B (m)	2	2	5"	3	3	5"	Max. reach
Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down
品			30									品						A (m)			A (m)
3,5",,,,,,,,,,,,,,,,,"*0,53	0,53	2,76	*0,53	0,53	2,76"
3,,,,,,,,,"*0,49	0,47	*0,59	0,47",,,,,"0,49	0,41	3,27	*0,53	0,41	3,27"
2,5",,,,,,,,,"*0,49	0,47	*0,49	0,47	0,44	0,36	*0,53	0,36	0,41	0,34	3,61	*0,54	0,34	3,61"
2,,,,,,,,,"*0,55	0,47	*0,55	0,47	0,44	0,36	*0,54	0,36	0,37	0,31	3,82	*0,55	0,31	3,82"
1,5	*0,98	0,88	*0,98	0,88	0,74	0,61	*0,75	0,61	0,55	0,46	*0,65	0,46	0,43	0,36	*0,59	0,36	0,35	0,29	3,95	*0,57	0,29	3,95"
1,"1,04	0,84",*,"0,84	0,72	0,60	*0,96	0,60	0,54	0,45	*0,76	0,45	0,43	0,35	*0,65	0,35	0,35	0,29	3,99	*0,59	0,29	3,99"
0,5	1,01	0,81	*1,48	0,81	0,71	0,58	*1,12	0,58	0,53	0,44	*0,85	0,44	0,42	0,35	*0,70	0,35	0,35	0,29	3,95	*0,61	0,29	3,95"
0 (ground),"1,00	0,80	*1,65	0,80	0,70	0,57	*1,20	0,57	0,53	0,44	*0,90	0,44	0,42	0,35	*0,73	0,35	0,36	0,30	3,83	*0,64	0,30	3,83"
-0,5	1,00	0,80	*1,71	0,80	0,70	0,57	*1,20	0,57	0,53	0,43	*0,91	0,43	0,42	0,35	*0,71	0,35	0,40	0,33	3,61	*0,67	0,33	3,61"
-1,"1,01	0,81	*1,56	0,81	0,70	0,57	*1,12	0,57	0,53	0,44	*0,84	0,43",,,,,"0,46	0,38	3,28	*0,70	0,38	3,28"
-1,5	1,02	0,82	*1,27	0,82	0,71	0,58	*0,90	0,58",,,,,,,,,"0,60	0,50	2,78	*0,73	0,50	2,78"

A (m) B (m)	2	2	5"	3	3	5"	Max. reach
Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down	Dozer up	Dozer down
品						品						品			30			A (m)	品		A (m)
3,,,,,,,,,"0,46	0,46	0,46	0,46	0,52	0,38	0,52	0,38	0,52	0,35	3,63	0,54	0,35	3,63"
2,5",,,,,,,,,"0,51	0,50	0,51	0,50	0,53	0,38	0,53	0,38	0,46	0,31	3,92	0,56	0,31	3,92"
2,,,,,"0,66	0,66	0,66	0,66	0,61	0,49	0,61	0,49	0,55	0,38	0,58	0,38	0,42	0,28	4,11	0,58	0,28	4,11"
1,5",,,,,"0,92	0,63	0,92	0,63	0,70	0,48	0,74	0,48	0,55	0,37	0,65	0,37	0,40	0,27	4,22	0,60	0,27	4,22"
1,,,,,"0,92	0,61	1,17	0,61	0,69	0,46	0,88	0,46	0,54	0,36	0,74	0,36	0,39	0,26	4,26	0,63	0,26	4,26"
0,5",,,,,"0,90	0,59	1,34	0,59	0,68	0,45	1,00	0,45	0,53	0,36	0,81	0,36	0,39	0,26	4,22	0,66	0,26	4,22"
0 (ground),"1,29	0,82	1,29	0,82	0,89	0,58	1,43	0,58	0,67	0,45	1,07	0,45	0,53	0,35	0,86	0,35	0,41	0,27	4,11	0,69	0,27	4,11"
-0,5	1,30	0,83	1,90	0,83	0,89	0,58	1,44	0,58	0,67	0,44	1,09	0,44	0,52	0,35	0,87	0,35	0,44	0,30	3,91	0,73	0,30	3,91"
-1,"1,31	0,83	1,92	0,83	0,89	0,59	1,39	0,59	0,67	0,44	1,06	0,44	0,53	0,35	0,83	0,35	0,50	0,34	3,61	0,78	0,34	3,61"
-1,5	1,33	0,84	1,70	0,84	0,90	0,59	1,24	0,59	0,67	0,45	0,93	0,45",,,,,"0,62	0,41	3,18	0,83	0,41	3,18"
