DX10Z Doosan excavator specs & dimensions (2021 - 2023)

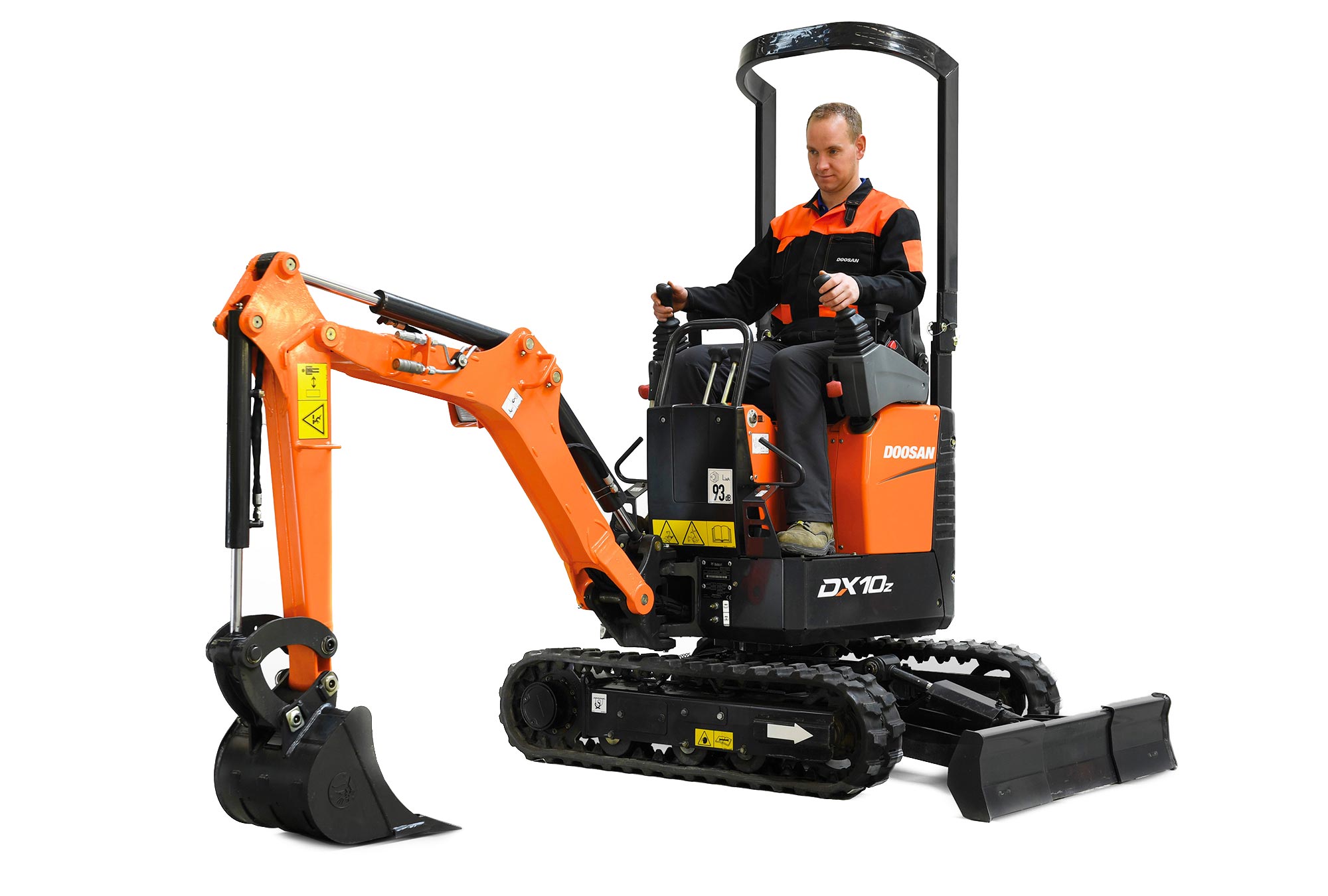

Doosan DX10Z is a mini excavator manufactured since 2021. It has a weight of 1.18 tons and a track width of 180 mm. The transport …

Doosan DX10Z is a mini excavator manufactured since 2021. It has a weight of 1.18 tons and a track width of 180 mm. The transport dimensions are 2.79 meters in length, 0.71 meters in width, and 2.21 meters in height. The machine features a tear-out force of 8.29 kN, a dredging depth of 1.82 meters, and a maximum horizontal reach of 3.145 meters. It is equipped with a blade and rubber tracks.

DX10Z

Years of manufacture: 2021—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DX10Z Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.18 t

Transport length: 2.79 m

Transport width: 0.71 m

Transport height: 2.21 m

Track width: 180 mm

Max. Reach horizontal: 3.145 m

Dredging depth: 1.82 m

Tear-out force: 8.29 kN

Model series: DX

Engine manuf.: Kubota

Engine type: D722

Engine power: 7.6 kW

Dimension lxwxh: 407x386x564 mm

Displacement: 0.72 l

Revolutions at max torque: 2050 rpm

Max. torque: 40,8/1600 Nm

No. of cylinders: 3

Cylinder bore x stroke: 67x68 mm

Emission level: Stage V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DX10Z FAQ

When was the Doosan DX10Z manufactured?

The Doosan DX10Z was manufactured from 2021 to 2023.

How much does the Doosan DX10Z mini excavator weigh?

The Doosan DX10Z mini excavator weighs 1.18 tons.

What are the transport dimensions of the Doosan DX10Z mini excavator?

The Doosan DX10Z mini excavator has a transport length of 2.79 meters, a transport width of 0.71 meters, and a transport height of 2.21 meters.

What is the track width of the Doosan DX10Z mini excavator?

The Doosan DX10Z mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Doosan DX10Z mini excavator?

The Doosan DX10Z mini excavator has a dredging depth of 1.82 meters and a maximum horizontal reach of 3.145 meters.

What is the tear-out force of the Doosan DX10Z mini excavator?

The Doosan DX10Z mini excavator has a tear-out force of 8.29 kN. No power rating data is provided for this model.

How much is a Doosan DX10Z Mini excavator (2021u20132023) worth?

The residual value of the Doosan DX10Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan DX10Z overview

Doosan DX10Z features overview

Ergonomic joysticks
The DX10Z features joysticks such as large excavators, not levers. They help you work in greater comfort and more precise details.
Cylinder over boom and internal hose routing
The working group of this excavator has a cylinder overhead boom design, eliminating the possibility of damage to the cylinder. Hoses for auxiliary hydraulics are routed inside the boom to prevent damage when working.

Hydraulics

The box structure design provides strength while minimizing the overall weight of the working group. The cooling system delivers best-in-class performance
This is vital when working in confined areas where air flow can be minimal. If the machine is often used with a hydraulic breaker, the demolition kit ensures additional cooling so that the breaker can be 100% utilized even in warm environments.

Environment

Ergonomic operator environment Cab floor panels
Spacious cabin with ample leg room, robust ergonomic pedals, large & flat floor, cup holder, storage box etc. Simple tool-free removable cab floor plates for convenient service. Zero tail swing: For more peace of mind and safety when working close to an obstacle.

Tyres / Tracks

Blade extension for better performance
Extendable to 1100 mm undercarriage width to ensure maximum stability. The sliding sheet extension eliminates loose parts that require storage space and are easily lost. Simply shift them into the interior position to reduce overall width.

Dimensions and weight

Lift point height (mm)	Maximum radius (mm)	Lift at max. radius (kg)	Lift at 2000 mm radius (kg)
2000	2030	192	206
1000	2620	121	197
Ground	2640	116	174
-1000	2045	171	171

Lift point height (mm)	Maximum radius (mm)	Lift at max. radius (kg)	Lift at 2000 mm radius (kg)
2000	2030	90	94
1000	2620	54	92
Ground	2640	48	78
-1000	2045	73	75

Lift point height (mm)	Maximum radius (mm)	Lift at max. radius (kg)	Lift at 2000 mm radius (kg)
2000	2030	319*	319*
1000	2620	275*	345*
Ground	2640	239*	404*
-1000	2030	210*	214**


Operating weight with standard bucket	excluding operator"	1176 kg
Ground pressure with rubber tracks	29.70 kPa


A	Blade height	220 mm
B	Ground clearance	363 mm
C	Engine cover height	992 mm
D	Length of track on ground	968 mm
E	Machine centre line to blade	987 mm
F	Min. radius in travel position	2153 mm
G	Overall track length	1280 mm
H	Shipping length	2793 mm
I	Track lug height	16 mm
J	Blade width (retracted)	1100 (710) mm
K	Overall height	2209 mm
L	Track width	180 mm
M	LH boom offset	413 mm
N	RH boom offset	471 mm
O	Min. turning radius	1121 mm
P	Swing clearance	rear"	550 mm
Q	Working width at max. RH rotation	1100 mm
R	Working width at max. LH rotation	1100 mm

Other features

Easy access for maintenance
From the very beginning, we've been paying particular attention to easy service access: these units feature a single point of access for daily maintenance of all main components, checking fuel gauge and refueling through the lockable cap. Lockable cover: Unique & safe access site for all maintenance checks.

Tables

Pump type	Dual gear pump
Pump capacity	10.0 l/min
Auxiliary flow	20.0 l/min
Auxiliary relief	184.0 - 192.0 bar
Relief pressure for implement circuit	184.0 - 192.0 bar


Fuel tank	16 l
Hydraulic system	10.1 l
Cooling system	3.0 l
Engine oil plus oil filter	3.5 l


Model	Kubota / D722-EF15 (EU Stage V)
No. of cylinders	3
Piston displacement	0.72 l
Max. net power @ 2000 RPM (ISO 9249)	7.4 kW (9.9 hp)
Max. net torque @ 1600 RPM (ISO 9249)	4.0 kgf/m (39.1 Nm)
Bore × stroke	67 mm × 68 mm


Bucket digging force (ISO 6015)	8294 N
Arm digging force (ISO 6015)	5550 N
Drawbar pull	9905 N
Travel speed fast / slow	3.1 / 2.1 km/h
Gradeability	30°


A-weighted emission sound pressure level at the operator’s position	LpAd (2000/14/EC)"	80 dB(A)
A-weighted sound power level	LwAd (2000/14/EC)"	93 dB(A)


Swing speed	9.0 RPM
Boom swing angle L/R	70° / 70°
