DX55R-7 Develon excavator specs & dimensions (2023 - 2026)

Weight: 5.74t – Transport length: 5.4m – Transport width: 1.98m – Transport height: 2.575m – Bucket capacity: 0.16m³ – Bucket capa…

Weight: 5.74t – Transport length: 5.4m – Transport width: 1.98m – Transport height: 2.575m – Bucket capacity: 0.16m³ – Bucket capacity min.: 0.16m³

Check out detailed specifications, information and technical data for Develon DX55R-7 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX55R-7 digger specifications. See information, like: Weight: 5.74t – Transport length: 5.4m – Transport width: 1.98m – Transport height: 2.575m – Bucket capacity: 0.16m³ – Bucket capacity min.: 0.16m³ and more.

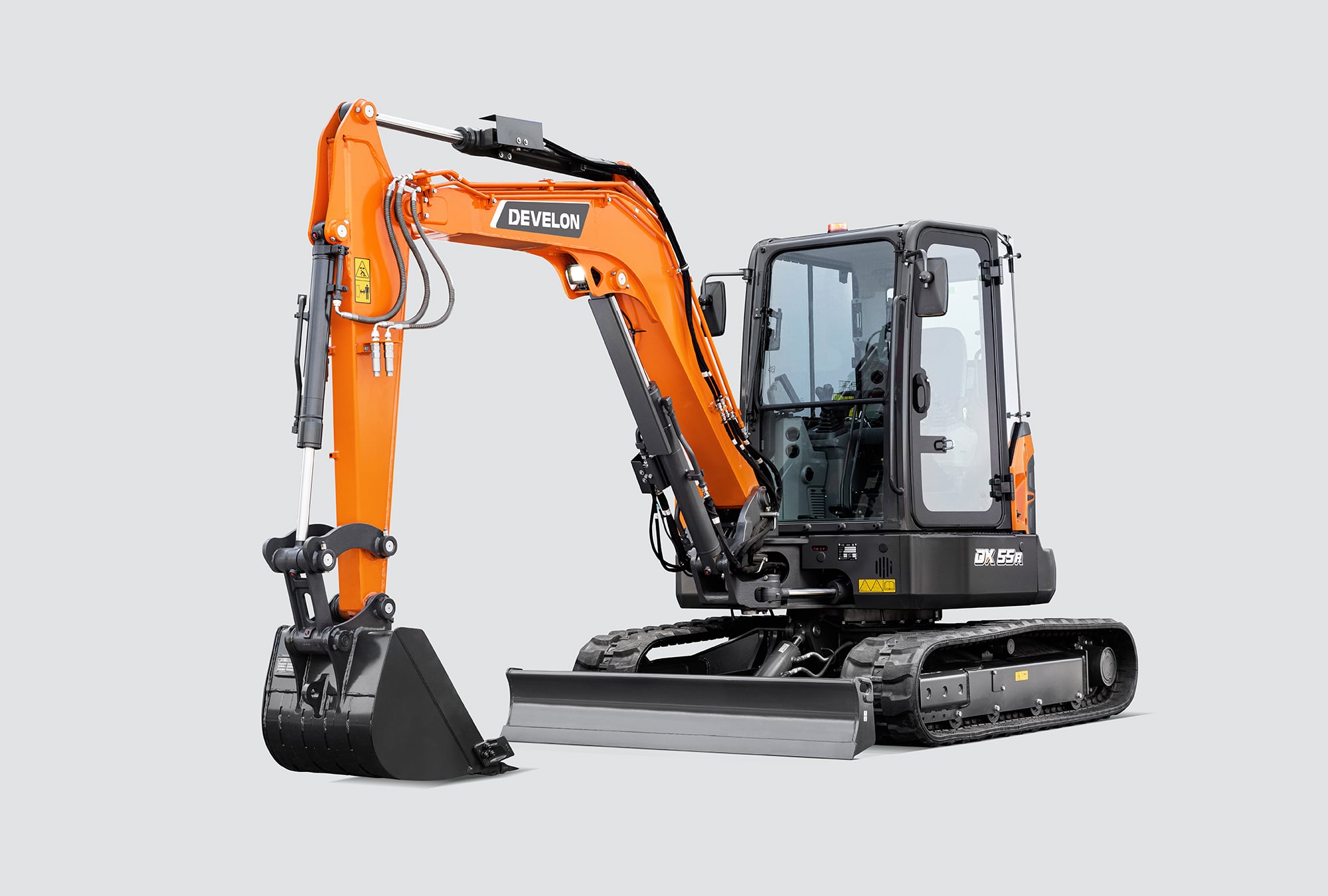

Mini Excavators Develon DX55R-7
Mini Excavators Develon DX55R-7
Mini Excavators Develon DX55R-7
Mini Excavators Develon DX55R-7

Visit Develon live at

Technical specs - DX55R-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.74 t
Transport length
5.4 m
Transport width
1.98 m
Transport height
2.575 m
Bucket capacity
0.16 m³
Bucket capacity min.
0.16 m³
Bucket capacity max.
0.16 m³
Bucket width
0.669 m
Track width
400 mm
Driver protection
KbR
Max. Reach horizontal
6.09 m
Dredging depth
3.63 m
Tear-out force
27.9 kN
Model series
DX
Engine manuf.
Develon
Engine type
DM01VA
Engine power
36.4 kW
Dimension lxwxh
642x555x720 mm
Displacement
1.8 l
Revolutions at max torque
2200 rpm
Max. torque
180,4/1600 Nm
No. of cylinders
3
Cylinder bore x stroke
90 x 94 mm
Emission level
Stage V

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX55R-7 FAQ

When was the Develon DX55R-7 manufactured?

The Develon DX55R-7 was first produced in 2023.

How much does the Develon DX55R-7 weigh?

The Develon DX55R-7 weighs 5.74 tons.

What are the transport dimensions of the Develon DX55R-7 mini excavator?

The Develon DX55R-7 has a transport length of 5.4 meters, a transport width of 1.98 meters, and a transport height of 2.575 meters.

What is the track width of the Develon DX55R-7 mini excavator's undercarriage?

The Develon DX55R-7 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Develon DX55R-7 mini excavator?

The Develon DX55R-7 has a dredging depth of 3.63 meters and a maximum horizontal reach of 6.09 meters.

What is the tear-out force of the Develon DX55R-7 mini excavator?

The Develon DX55R-7 has a tear-out force of 27.9 kN.

What are the bucket specifications of the Develon DX55R-7 mini excavator?

The Develon DX55R-7 mini excavator has a bucket capacity of 0.16 cubic meters and a bucket width of 0.669 meters.

What operator safety and support features does the Develon DX55R-7 have?

The Develon DX55R-7 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.
