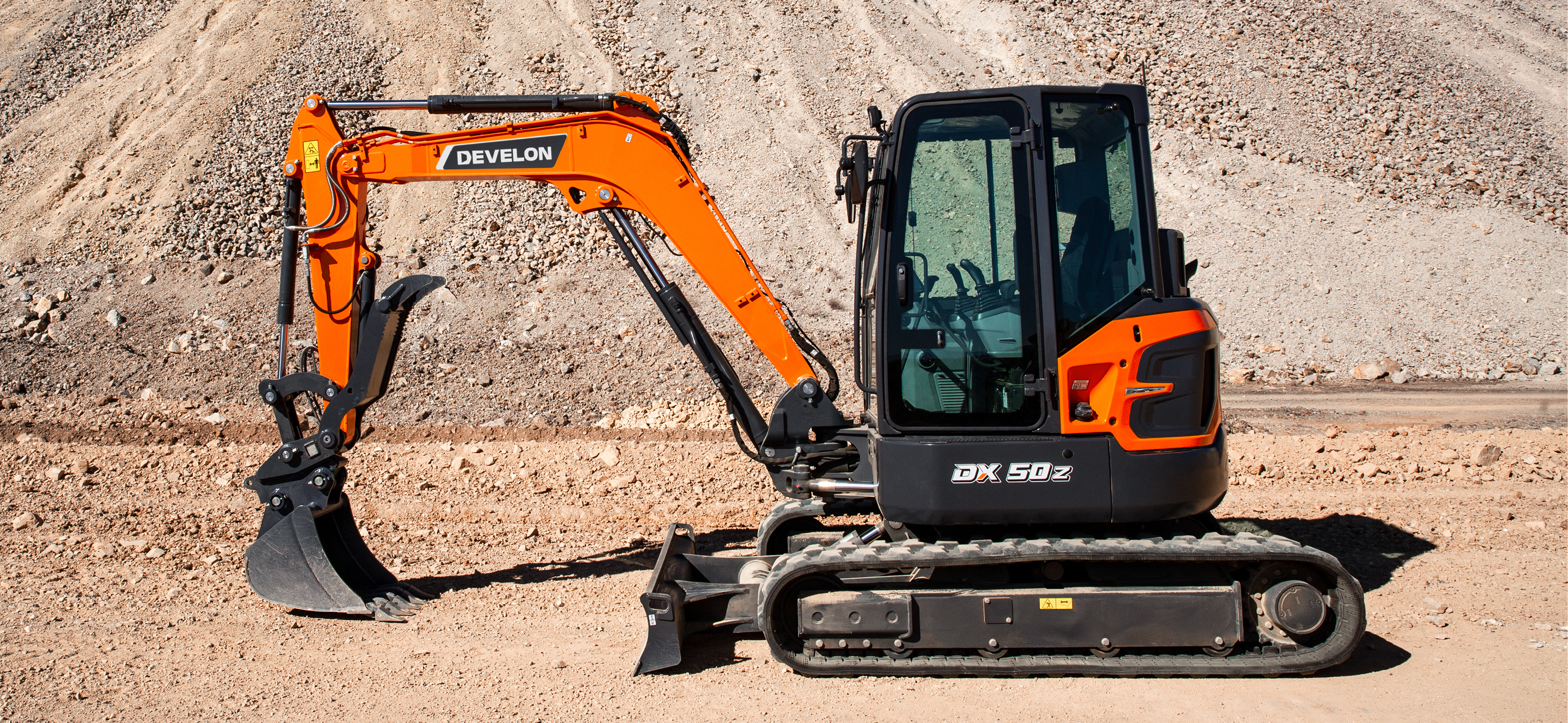

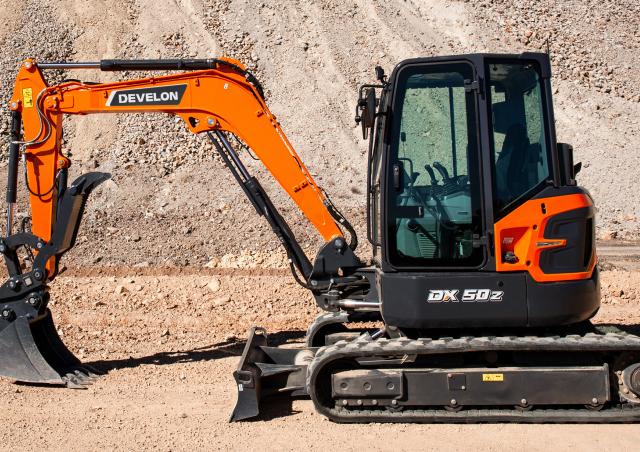

DX50Z-7 Develon excavator specs & dimensions (2024 - 2026)
Visit Develon live at
Technical specs - DX50Z-7 Develon
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.438 t
- Transport length
- 5.386 m
- Transport width
- 1.98 m
- Transport height
- 2.575 m
- Bucket capacity
- 0.16 m³
- Bucket capacity min.
- 0.06 m³
- Bucket capacity max.
- 0.41 m³
- Bucket width
- 914 m
- Track width
- 400 mm
- Driver protection
- Kb
- Max. Reach horizontal
- 5.8 m
- Dredging depth
- 3.48 m
- Model series
- DX
- Engine manuf.
- Develon
- Engine type
- D18
- Engine power
- 36.4 kW
- Displacement
- 2.4 l
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 180 Nm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 90x94 mm
More technical details, like: standard tyres, tear-out force, dimension lxwxh, emission level are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
No
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
Yes
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
Download datasheets (PDF)
