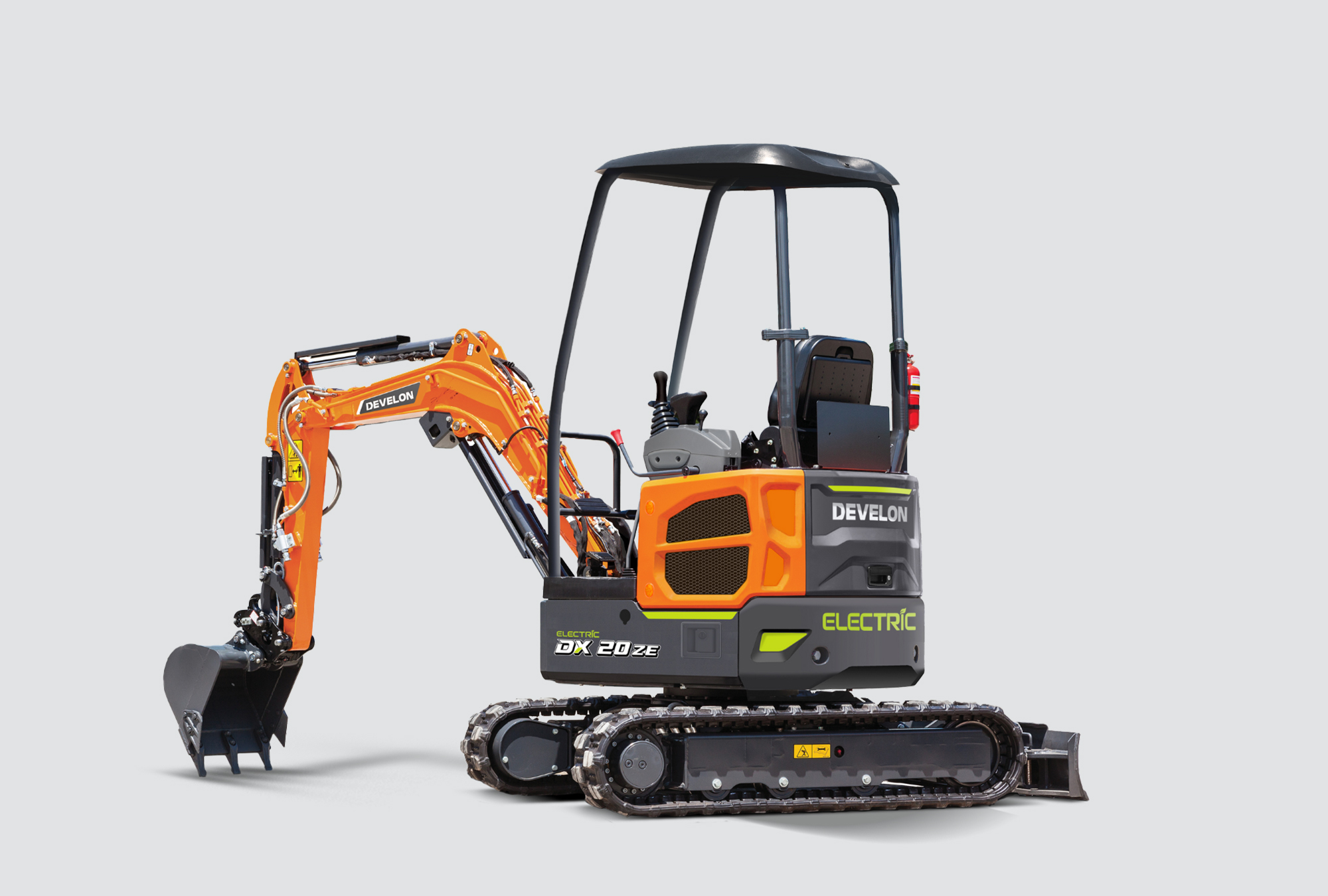

DX20ZE Develon excavator specs & dimensions (2023 - 2026)

Weight: 1.941t – Transport length: 3.46m – Transport width: 0.95m – Transport height: 2.345m – Bucket capacity: 0.05m³ – Bucket ca…

Weight: 1.941t – Transport length: 3.46m – Transport width: 0.95m – Transport height: 2.345m – Bucket capacity: 0.05m³ – Bucket capacity min.: 0.05m³

Check out detailed specifications, information and technical data for Develon DX20ZE excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX20ZE digger specifications. See information, like: Weight: 1.941t – Transport length: 3.46m – Transport width: 0.95m – Transport height: 2.345m – Bucket capacity: 0.05m³ – Bucket capacity min.: 0.05m³ and more.

Mini Excavators Develon DX20ZE

Visit Develon live at

Technical specs - DX20ZE Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.941 t
Transport length
3.46 m
Transport width
0.95 m
Transport height
2.345 m
Bucket capacity
0.05 m³
Bucket capacity min.
0.05 m³
Bucket capacity max.
0.05 m³
Bucket width
0.511 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.975 m
Dredging depth
2.35 m
Tear-out force
7.85 kN
Model series
DX
Engine manuf.
Develon
Engine type
Electric
Engine power
20.4 kW

More technical details, like: standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX20ZE FAQ

When was the Develon DX20ZE manufactured?

The Develon DX20ZE was first produced in 2023.

How much does the Develon DX20ZE weigh?

The Develon DX20ZE weighs 1.941 tons.

What are the transport dimensions of the Develon DX20ZE mini excavator?

The Develon DX20ZE has a transport length of 3.46 meters, a transport width of 0.95 meters, and a transport height of 2.345 meters.

What is the track width of the Develon DX20ZE mini excavator?

The Develon DX20ZE mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Develon DX20ZE mini excavator?

The Develon DX20ZE mini excavator has a dredging depth of 2.35 meters and a maximum horizontal reach of 3.975 meters.

What is the tear-out force of the Develon DX20ZE mini excavator?

The Develon DX20ZE has a tear-out force of 7.85 kN. No power rating information is available for this model.

What are the specifications of the bucket on the Develon DX20ZE mini excavator?

The Develon DX20ZE mini excavator has a bucket with a capacity of 0.05 cubic meters and a width of 0.511 meters.

What operator safety and support features does the Develon DX20ZE have?

The Develon DX20ZE has a canopy for driver protection.

How much is a Develon DX20ZE Mini excavator (2023u20132025) worth?

The residual value of the Develon DX20ZE depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
