DX20Z-7 Develon excavator specs & dimensions (2025 - 2026)

Weight: 1.995t – Transport length: 3.746m – Transport width: 0.95m – Transport height: 2.36m – Bucket capacity: 0.05m³ – Bucket ca…

Weight: 1.995t – Transport length: 3.746m – Transport width: 0.95m – Transport height: 2.36m – Bucket capacity: 0.05m³ – Bucket capacity min.: 0.05m³

Check out detailed specifications, information and technical data for Develon DX20Z-7 excavator manufactured between 2025 - 2026. Get more in-depth insight with Develon DX20Z-7 digger specifications. See information, like: Weight: 1.995t – Transport length: 3.746m – Transport width: 0.95m – Transport height: 2.36m – Bucket capacity: 0.05m³ – Bucket capacity min.: 0.05m³ and more.

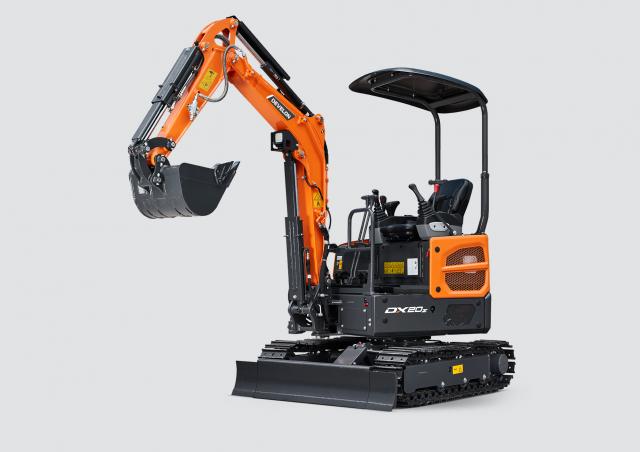

Mini Excavators Develon DX20Z-7

Visit Develon live at

Technical specs - DX20Z-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.995 t
Transport length
3.746 m
Transport width
0.95 m
Transport height
2.36 m
Bucket capacity
0.05 m³
Bucket capacity min.
0.05 m³
Bucket capacity max.
0.05 m³
Bucket width
0.511 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.68 m
Dredging depth
2.18 m
Tear-out force
15.5 kN
Model series
DX
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
10.3 kW
Dimension lxwxh
504 x 427 x 549 mm
Displacement
0.854 l
Revolutions at max torque
1600 rpm
Max. torque
51.9 Nm
No. of cylinders
3
Cylinder bore x stroke
70x75 mm
Emission level
Stage V

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
