DX19 Develon DX19 excavator specs & dimensions (2023 - 2024)

Weight: 1.781t – Transport length: 3.812m – Transport width: 0.98m – Transport height: 2.299m – Bucket capacity: 0.04m³ – Bucket c…

Weight: 1.781t – Transport length: 3.812m – Transport width: 0.98m – Transport height: 2.299m – Bucket capacity: 0.04m³ – Bucket capacity min.: 0.04m³

Check out detailed specifications, information and technical data for Develon DX19 excavator manufactured between 2023 - 2024. Get more in-depth insight with Develon DX19 digger specifications. See information, like: Weight: 1.781t – Transport length: 3.812m – Transport width: 0.98m – Transport height: 2.299m – Bucket capacity: 0.04m³ – Bucket capacity min.: 0.04m³ and more.

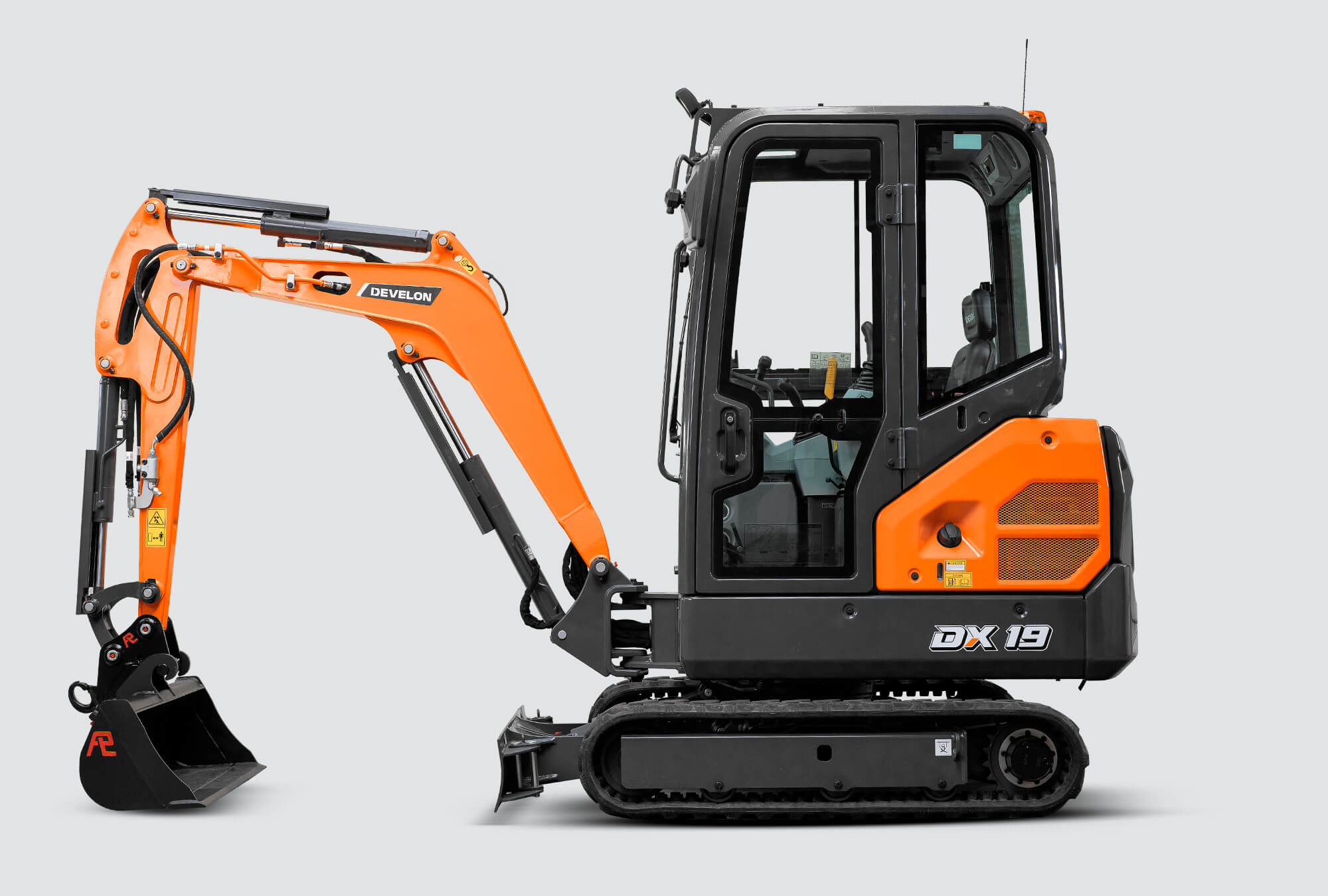

Mini Excavators Develon DX19

Visit Develon live at

Technical specs - DX19 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.781 t
Transport length
3.812 m
Transport width
0.98 m
Transport height
2.299 m
Bucket capacity
0.04 m³
Bucket capacity min.
0.04 m³
Bucket capacity max.
0.06 m³
Bucket width
0.38 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
4.04 m
Dredging depth
2.38 m
Tear-out force
20.83 kN
Model series
DX
Engine manuf.
Yanmar
Engine type
3TNV74F-SPBC
Engine power
11 kW
Dimension lxwxh
504x427x549 mm
Displacement
0.993 l
Revolutions at max torque
2400 rpm
Max. torque
50,2/1800 Nm
No. of cylinders
3
Cylinder bore x stroke
74x77 mm
Emission level
Stage V

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX19 FAQ

When was the Develon DX19 manufactured?

The Develon DX19 was manufactured from 2023 to 2024.

How much does the Develon DX19 mini excavator weigh?

The Develon DX19 mini excavator weighs 1.781 tons.

What are the transport dimensions of the Develon DX19 mini excavator?

The Develon DX19 has a transport length of 3.812 meters, a transport width of 0.98 meters, and a transport height of 2.299 meters.

What is the track width of the Develon DX19 mini excavator?

The Develon DX19 mini excavator has a track width of 230 mm.

What are the excavation specifications of the Develon DX19 mini excavator?

The Develon DX19 mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 4.04 meters.

What is the tear-out force of the Develon DX19 mini excavator?

The Develon DX19 mini excavator has a tear-out force of 20.83 kN.

What are the bucket specifications of the Develon DX19 mini excavator?

The Develon DX19 mini excavator has a bucket capacity ranging from 0.04 to 0.06 cubic meters, with a bucket width of 0.38 meters.

What operator safety and support features does the Develon DX19 have?

The Develon DX19 is equipped with a canopy for driver protection.

How much is a Develon DX19 Mini excavator (2023u20132024) worth?

The residual value of the Develon DX19 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
