DX10Z Develon excavator specs & dimensions (2023 - 2024)

Weight: 1.176t – Transport length: 2.793m – Transport width: 0.71m – Transport height: 2.21m – Bucket capacity: 0.02m³ – Bucket ca…

Weight: 1.176t – Transport length: 2.793m – Transport width: 0.71m – Transport height: 2.21m – Bucket capacity: 0.02m³ – Bucket capacity min.: 0.02m³

Check out detailed specifications, information and technical data for Develon DX10Z excavator manufactured between 2023 - 2024. Get more in-depth insight with Develon DX10Z digger specifications. See information, like: Weight: 1.176t – Transport length: 2.793m – Transport width: 0.71m – Transport height: 2.21m – Bucket capacity: 0.02m³ – Bucket capacity min.: 0.02m³ and more.

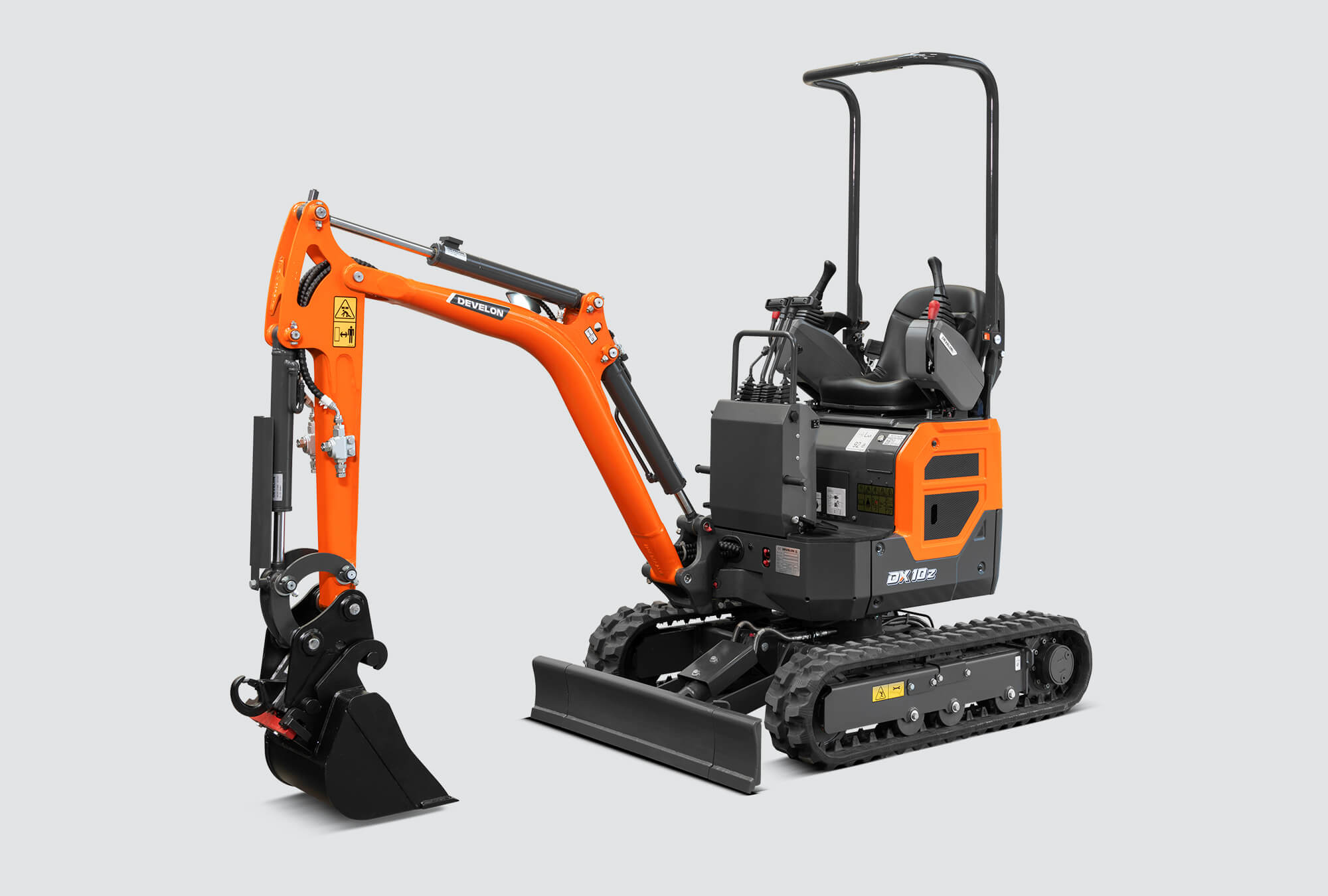

Mini Excavators Develon DX10Z

Visit Develon live at

Technical specs - DX10Z Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.176 t
Transport length
2.793 m
Transport width
0.71 m
Transport height
2.21 m
Bucket capacity
0.02 m³
Bucket capacity min.
0.02 m³
Bucket capacity max.
0.02 m³
Bucket width
0.23 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.145 m
Dredging depth
1.82 m
Tear-out force
8.29 kN
Model series
DX
Engine manuf.
Kubota
Engine type
D722
Engine power
7.6 kW
Dimension lxwxh
407x386x564 mm
Displacement
0.72 l
Revolutions at max torque
2050 rpm
Max. torque
40,8/1600 Nm
No. of cylinders
3
Cylinder bore x stroke
67x68 mm
Emission level
Stage V

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX10Z FAQ

When was the Develon DX10Z manufactured?

The Develon DX10Z was manufactured from 2023 to 2024.

How much does the Develon DX10Z weigh?

The Develon DX10Z weighs 1.176 tons.

What are the transport dimensions of the Develon DX10Z mini excavator?

The Develon DX10Z has a transport length of 2.793 meters, a transport width of 0.71 meters, and a transport height of 2.21 meters.

What is the track width of the Develon DX10Z mini excavator?

The Develon DX10Z mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Develon DX10Z mini excavator?

The Develon DX10Z mini excavator has a dredging depth of 1.82 meters and a maximum horizontal reach of 3.145 meters.

What is the tear-out force of the Develon DX10Z mini excavator?

The Develon DX10Z mini excavator has a tear-out force of 8.29 kN.

What are the bucket specifications of the Develon DX10Z mini excavator?

The Develon DX10Z has a bucket capacity of 0.02 cubic meters and a bucket width of 0.23 meters.

What operator safety features does the Develon DX10Z have?

The Develon DX10Z is equipped with a roll-over bar for driver protection.

How much is a Develon DX10Z Mini excavator (2023u20132024) worth?

The residual value of the Develon DX10Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
